3-26

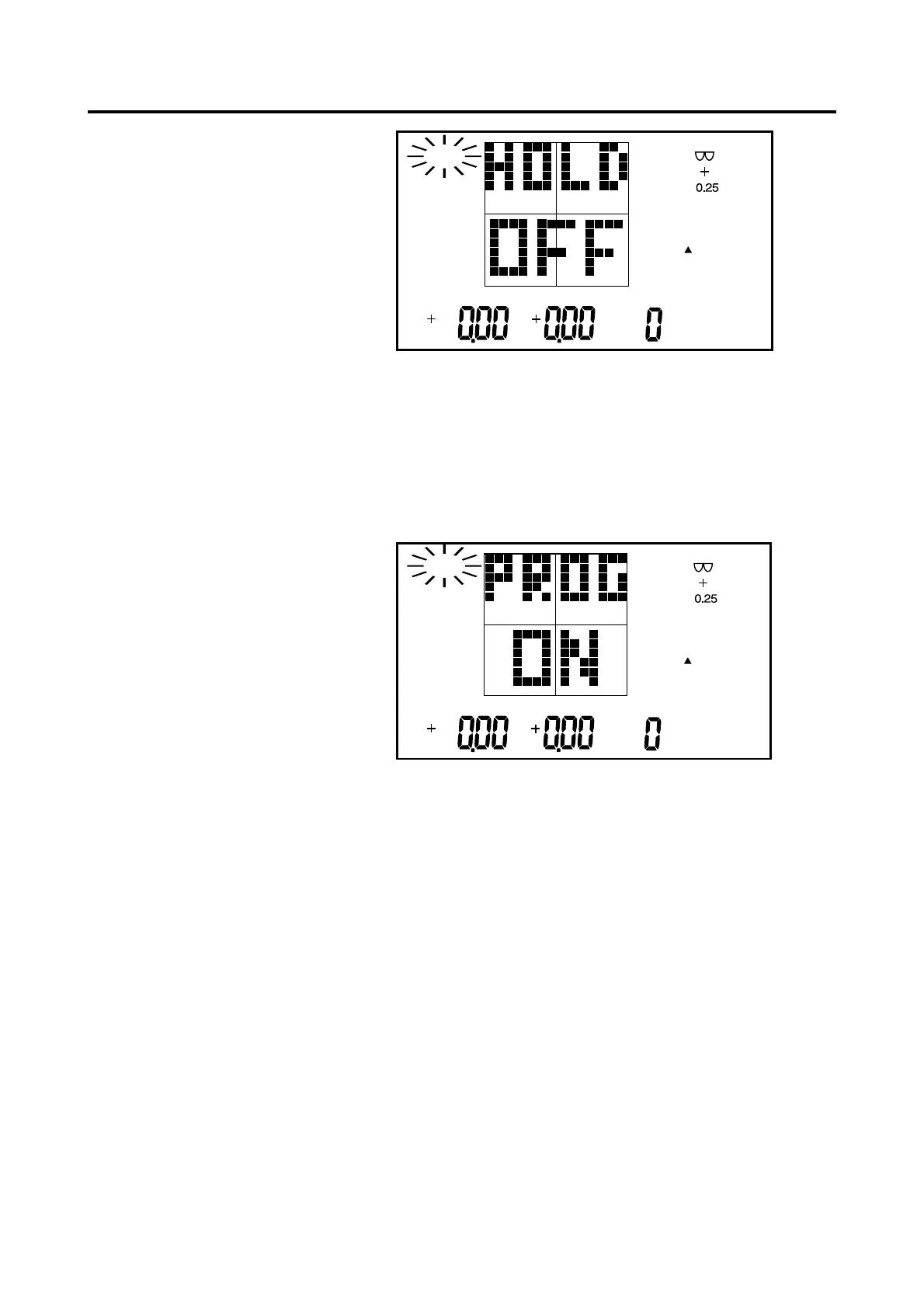

3.4 SETUP
AUTO
HI
MODE
CYL
STEP
R
PRISM
PRISM
AX
I
S
SPH
C
Y
L
AXIS
ADD
f.
AUTO PROG
ON:
Automatic activation of the MULTI-FOCAL mode
when a progressive addition is detected.
OFF:
MULTI-FOCAL mode is not automatically activated
when a progressive addition is detected.
AUTO
HI
MODE
CYL
STEP
R
PRISM
PRISM
A
X
IS
SPH
C
Y
L
AXIS
ADD
5)
Press the HOLD button when setup is complete.
The initial measurement screen appears.
40
42
Table of Contents
Table of Contents
3
Prior to Use
6
Cautionary Notes
6
Unpacking
8
Explanation of Terms
9
Outline of Operation
10
Component List and Functions
12
Front
12
Back
13
Screen Layout
14
Method of Operation
16
Preparation for Operating
16
Measuring Methods
18
Measuring Single Vision Lenses
18
A) Automatic Hold Mode
18
B) Manual Hold Mode
20
Measuring Multi-Focal Lenses (PROG Mode)
22
A) Measuring Progressive Addition Lenses
22
B) Measuring Bifocal Lenses
27
Measuring Prism
30
Measuring High Index Lenses (HI Mode)
31
Measuring Contact Lenses (CL Mode)
32
Recalling the Readings (READING)
34
Detecting Progressive Lenses
35
Operating the Clamp, Marking Device and Lens Table
36
Clamp
36
Marking Device
37
Lens Table
38
Setup
39
LCD Contrast Adjustment
43
Automatic Power Saving Function (AUTO POWER OFF)
44
Maintenance and Inspection
46
Warranty
46
Routine Maintenance
47
Cleaning Cover Glass
47
Replacing Spare Parts
49
Ink Cartridge
49
Storage
51
Packing Materials
51
Troubleshooting
52
Troubleshooting Guide
52
General Operation
52
Progressive Addition Lens Measurement
54
Error Messages
58
Spare Parts
60
Specifications
62
Measurement
62
Data Control
62
Physical Dimensions and Electrical Requirements
62
Environmental Conditions
63
Approved International Standards
63
Index
64
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Tomey TL-100 and is the answer not in the manual?
Ask a question
Tomey TL-100 Specifications
General
Brand
Tomey
Model
TL-100
Category
Medical Equipment
Language
English
