①
②
③
④
⑤
Ready indication lamp
Lights during preparation.
The lid can be opened when this lamp is
illuminated.
Temperature raising process indication
lamp
Displays that the temperature raising
process is being carried out.
Temperature and pressure raising process
indication lamp
Displays that the temperature and
pressure raising process is being carried
out.
Sterilizing process indication lamp
Displays that the sterilizing process is
being carried out.
Heating process indication lamp
Displays that the heating process is being
carried out.
⑥
⑦
⑧
⑨
Temperature and pressure reduction
process indication lamp
Displays that the temperature and
pressure reduction process is being carried
out.
Warming process indication lamp
Displays that the warming process is
being carried out.
Temperature reduction process indication
lamp
Displays that temperature reduction
process is being carried out.
Completion indication lamp
Displays that operation is completed.
Blinks when the lid can be opened. The
status is changed from blinking to being
lighted when the temperature in the
chamber falls to 60 °C.

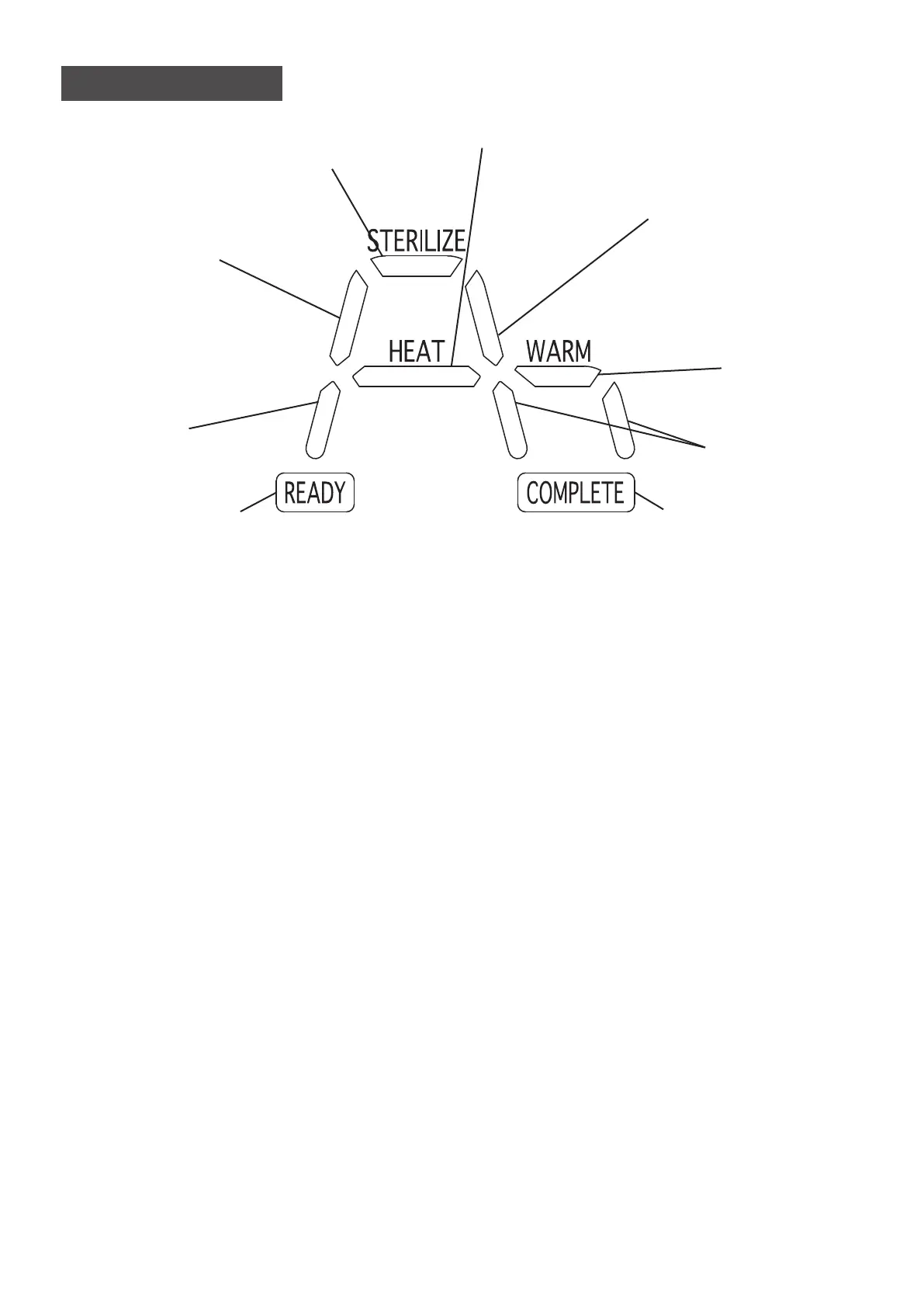

Work monitor
①
②
③
④
⑤
⑥
⑦
⑧
⑨
