To set the lid interlock release temperature, please refer to “6-7. Setting the temperature which
releases the interlock of the chamber lid”.
<
Setting the temperature to release the lid interlock
>

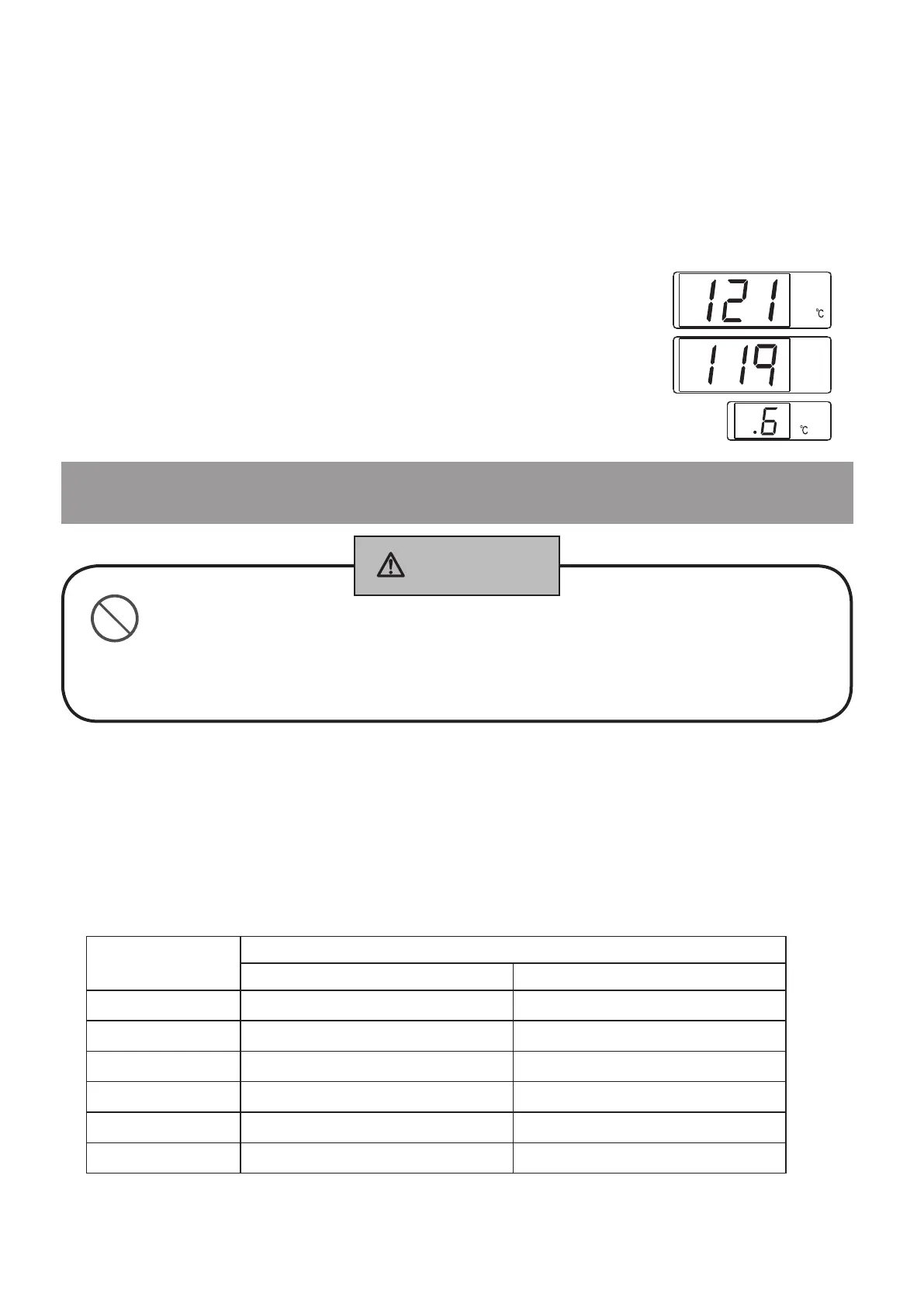

Press the [Temperature sensor] key, while holding down the [Check]
key. The material temperature measured by the sensor is displayed
on the time display and the warming/timer display.
※
The whole number is displayed on the time display and the rst
decimal number on the warming/timer display.
①
<
Displaying temperature of materials to be sterilized
>
7-2.
Data output function (temperature/pressure)
The autoclave has an optional function to select maximum two data from the temperature and
the pressure inside the chamber or the temperature of the materials to be sterilized and transmit
analog output signals to the recorder optional.
Place the head of the sensor, which measures temperature, directly inside the material to be
sterilized or heated.
<
Measuring material temperature with the sensor
>
①
※
To use the device in conformity to the Harmonized European Standards, EN 61326-1 : 2006,
the length of the cable for data output should be designated as 3 meters or less.
Do not use a cable which exceeds the length of three meters when
connecting to a data output device.
●
Using the cable exceeding three meters may introduce more noise and cause
abnormal operation or give adverse effect to other electric devices.
Selecting output data
The table below shows the available selection for data output for each option order:
■
※
When outputting the data of the material temperature, an optional temperature sensor is
required.
Number
Selected Parameters
Terminal CH1 Terminal CH2
1 chamber temperature chamber pressure
2 chamber temperature material temperature
3 chamber pressure material temperature
4 chamber temperature -
5 chamber pressure -
6 material temperature -
