Lipo, LiHV, LiFe, Lion, LTO batteries can be charged,
discharged, and stored. NiMh battery can be charged,
discharged, or cycled. PB battery can be charged and
discharged. Short press [OK] and [Exit] to take effect and
return to the previous interface.
4. Discharge mode
Under discharge, storage, and cycle modes, the
option of discharging the battery will appear.

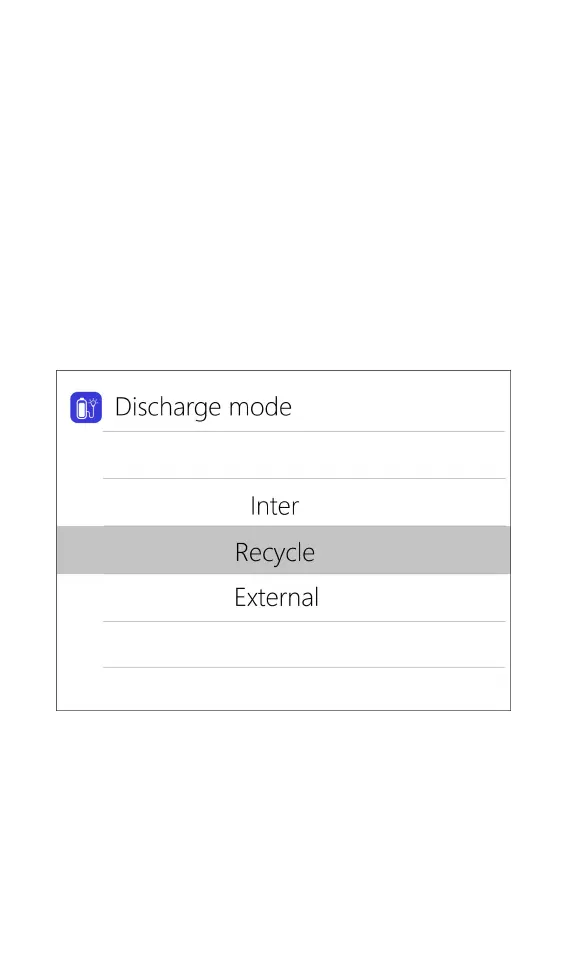

Move the cursor to [Discharge Mode] and press [OK]
to modify the discharge mode, as shown below:
The charger supports three discharge modes.
1.
Normal mode: discharge using internal heat
dissipation, maximum 3.0A@20W discharge.
2. Recycle mode: when a battery is used as the
input, the power is recovered to the input battery
through this function, max 20.0A@600W discharge.
To Next Page
