discharging. Setting high overvoltage may damage the
input power
===================================

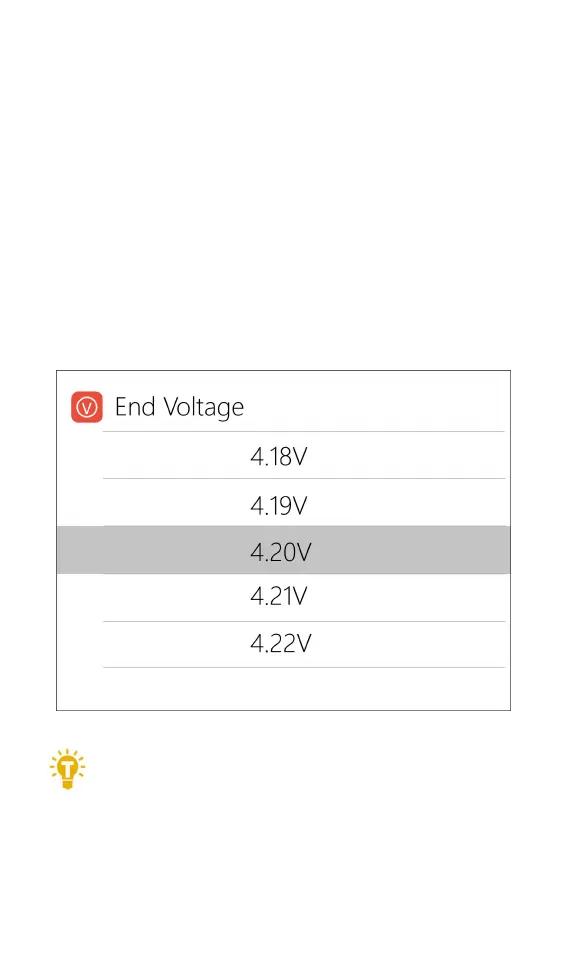

6. End voltage setting (TVC)
Move the cursor to [End Voltage] and press [OK] to
modify the end voltage for the individual cells.
When charging, it is the charge cut-off voltage, and
the range is plus or minus 50mV of the full voltage.
When discharging, it is the discharge cut-off voltage.
Scroll [Scroll wheel] to adjust the value, step 0.01V.
===================================
1. Only LiPo, LiHV, LiFe batteries can set the
cut-off voltage.
2. Do not modify the cut-off voltage if you are not
familiar with the battery characteristics.
3. The charging cut-off voltage can be set to a range of
