18. SURFACE AREA CALCULATION

108

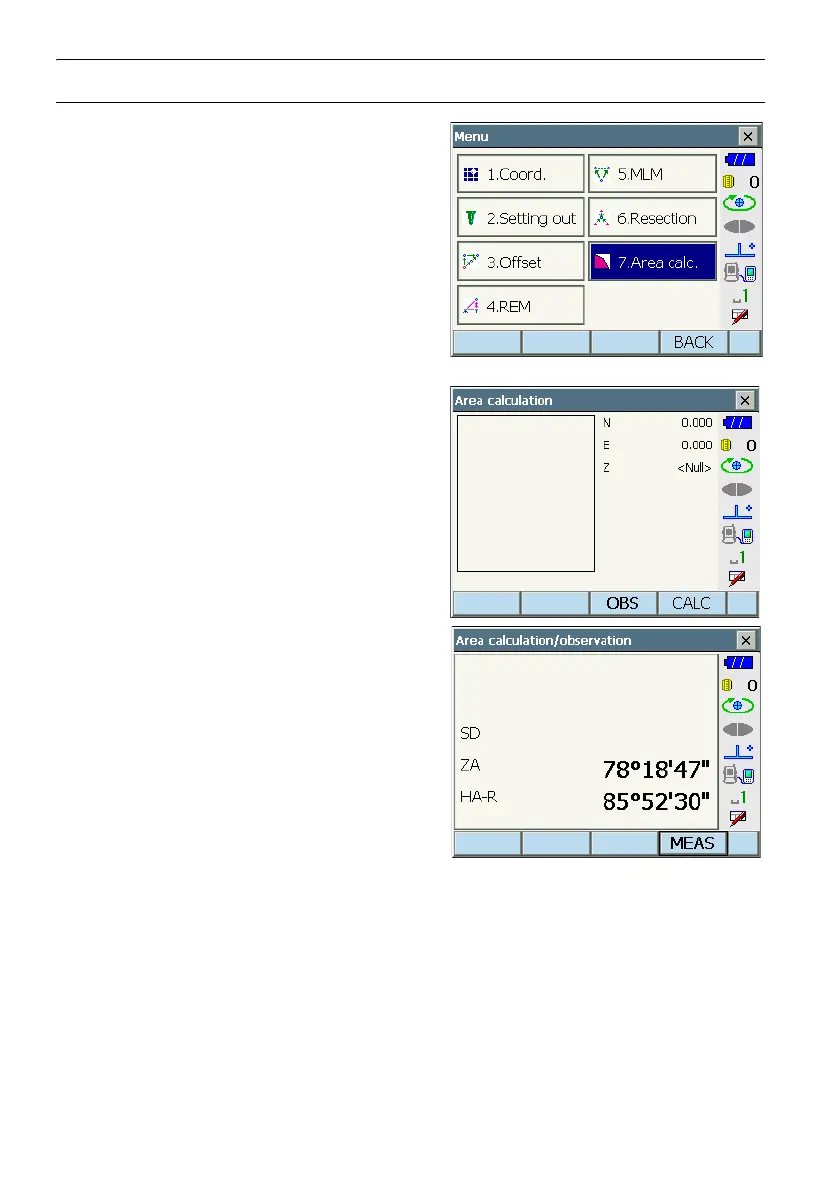

PROCEDURE Surface area calculation by measuring points

1. Select "Area calc." in <Menu>

2. Press [OBS] to display <Area calculation/

measurement>. Sight the first point on the line

enclosing the area, and press [MEAS].

Measurement begins and the measured values

are displayed. Press [STOP] to stop measuring.
