18. SURFACE AREA CALCULATION

110

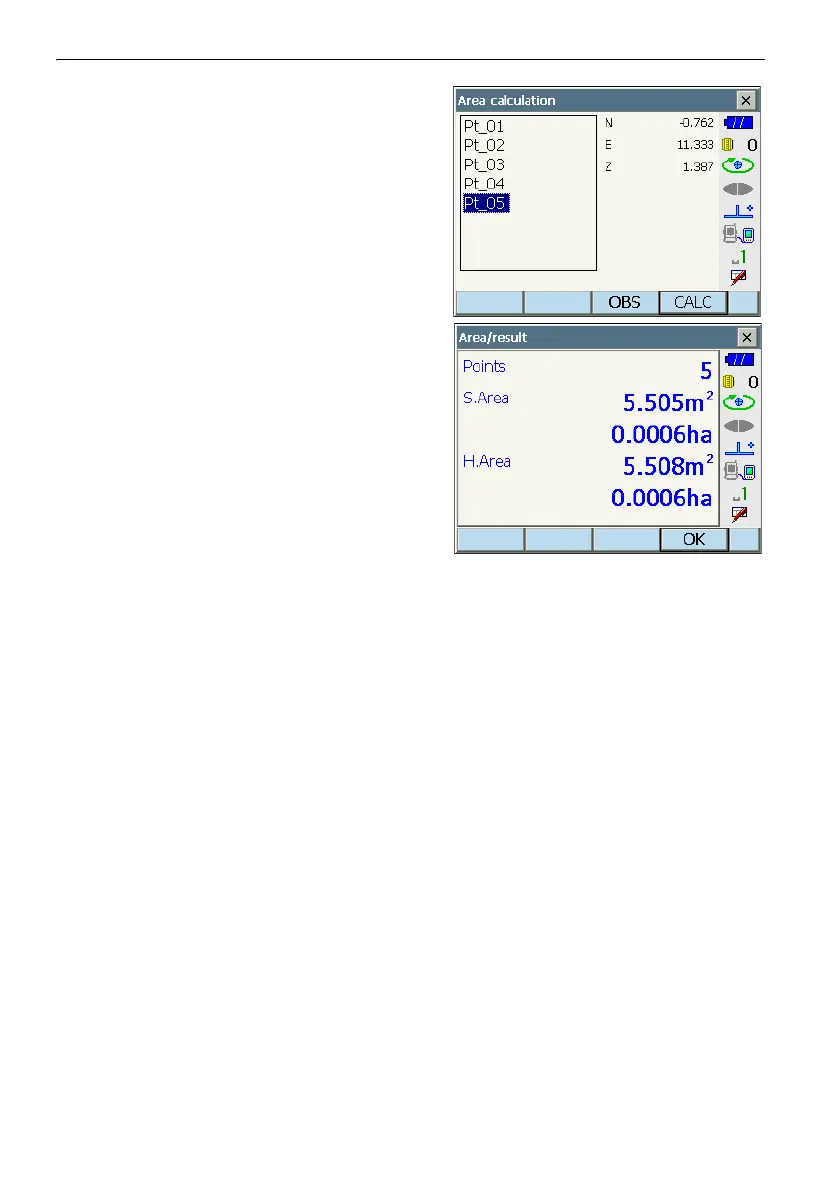

5. Press [CALC] to display the calculated area.

6. Press [OK] to return to <Area/key in coord.>.

Press {ESC} or tap the cross in the top-right

corner to quit area calculation.
