4. PRODUCT OUTLINE
& Vertical and Horizontal Jogs
The instrument and telescope can be rotated manually by hand or, for more precise adjustments,
by turning the vertical and horizontal Jogs.
The faster the Jogs are turned, the faster the instrument and telescope rotate.
C"10.1 Auto Pointing Settings" step 3
& Trigger key
When the Trigger key is pressed the instrument carries out the operation indicated by the softkey
in bold type on the screen. This allows the user to continue operation without having to return to
the display to press softkeys.
& Sighting collimator
Use sighting collimator to aim the instrument in the direction of the measurement point.
Turn the instrument until the apex of the triangle in the sighting collimator is aligned with the
target. A circle surrounds the triangle to make it easier to locate.

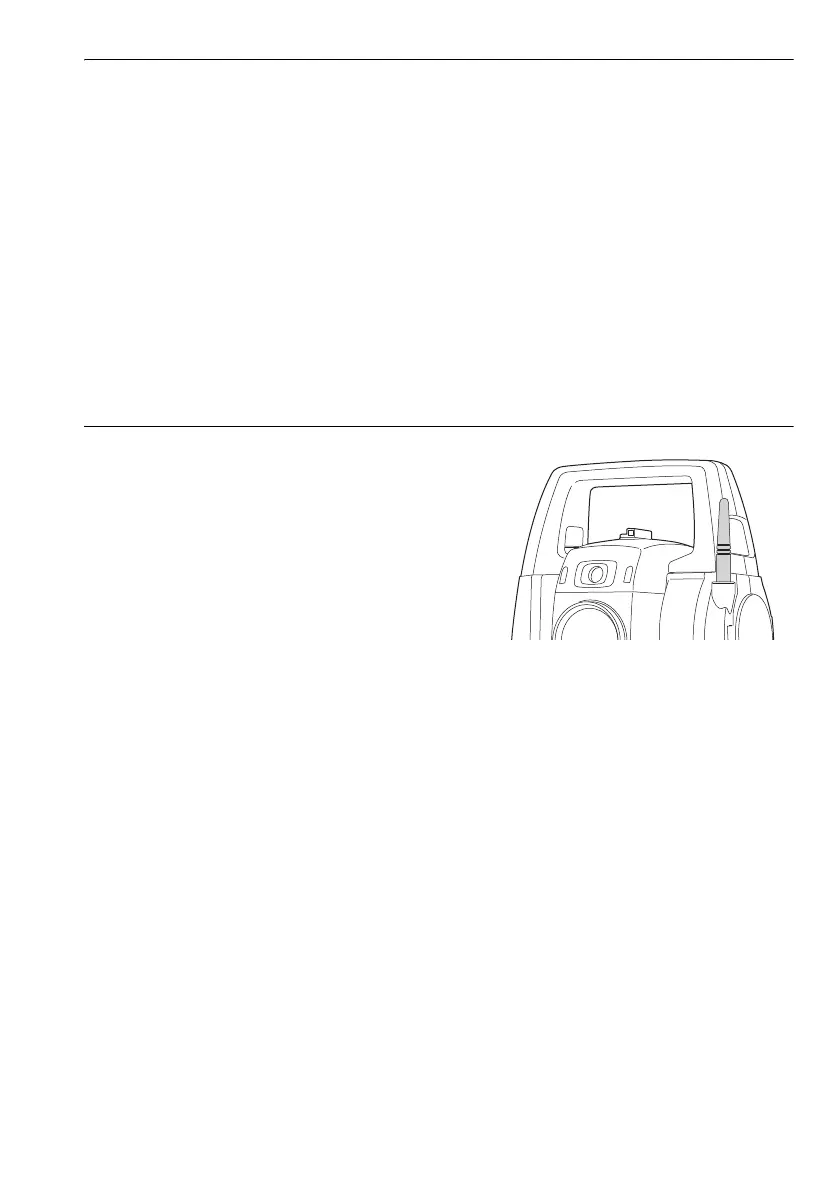

Bluetooth antenna
The Bluetooth antenna allows communication via
Bluetooth wireless technology.
G
• Handle the antenna with care. The antenna may be
damaged if struck during operation or while being
stored in the carrying case.
