GC-35 Setup
Profiler (Milling) Applications
10
P/N: 1001548-01
Profiler (Milling) Applications

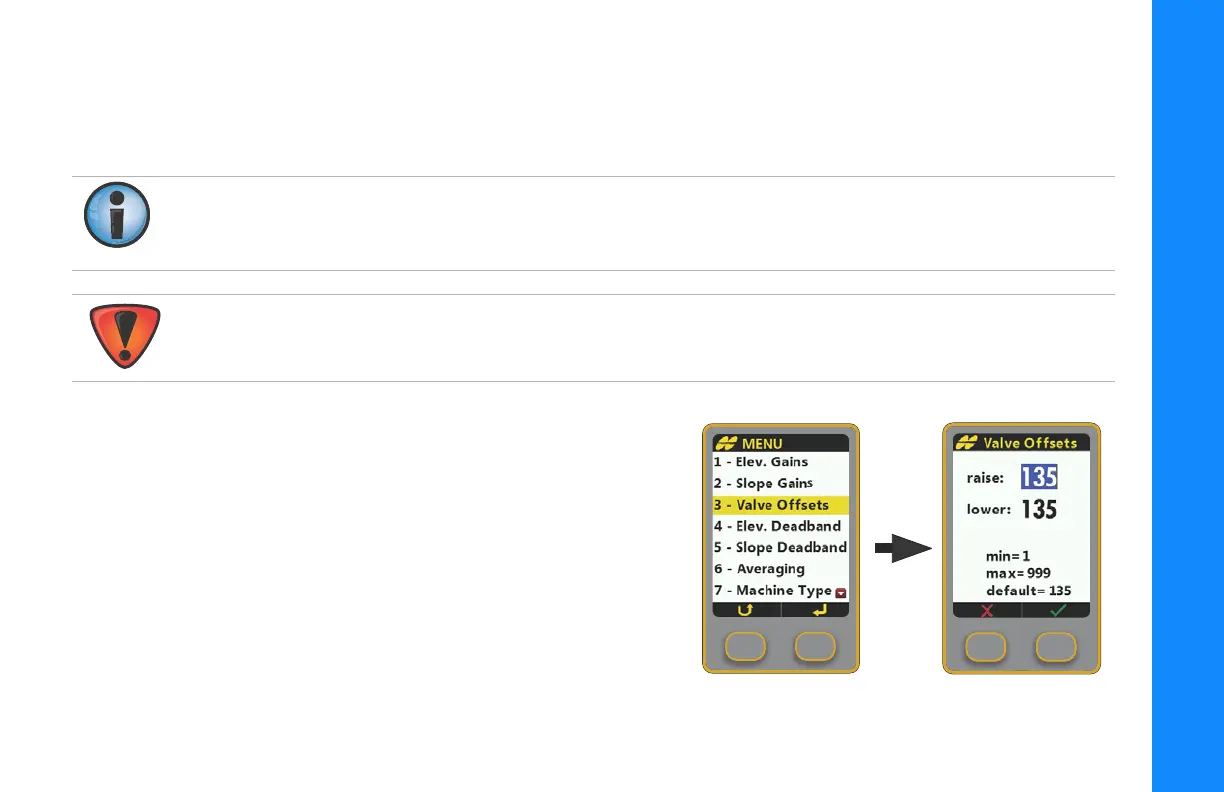

Setting Valve Offsets (Raise and Lower) for Profiler
1. Run the profiler until the hydraulic oil is at normal
operating temperature before setting the valve offsets.
2. Select Valve Offsets raise:.
3. Turn the Grade Adjustment Knob counter clockwise,
decreasing the Valve Offset - raise value until the hydraulic
cylinder no longer moves. Then slowly rotate the Grade
Adjustment Knob clockwise until the hydraulic cylinder just
begins to move up.
4. Repeat step 3 for Valve Offsets lower:.
Set the Valve Offsets first, before setting any other Performance Menu items.
The offset value on one side of the profiler may differ from the offset value on the other side of the profiler. You
must verify the offset values before swapping boxes.
Never attempt to use Valve Offsets to compensate for a slower raise or lower speed of your hydraulic valves, as
it causes undershooting or overshooting in Slope Mode and can adversely affect the quality of the job.
