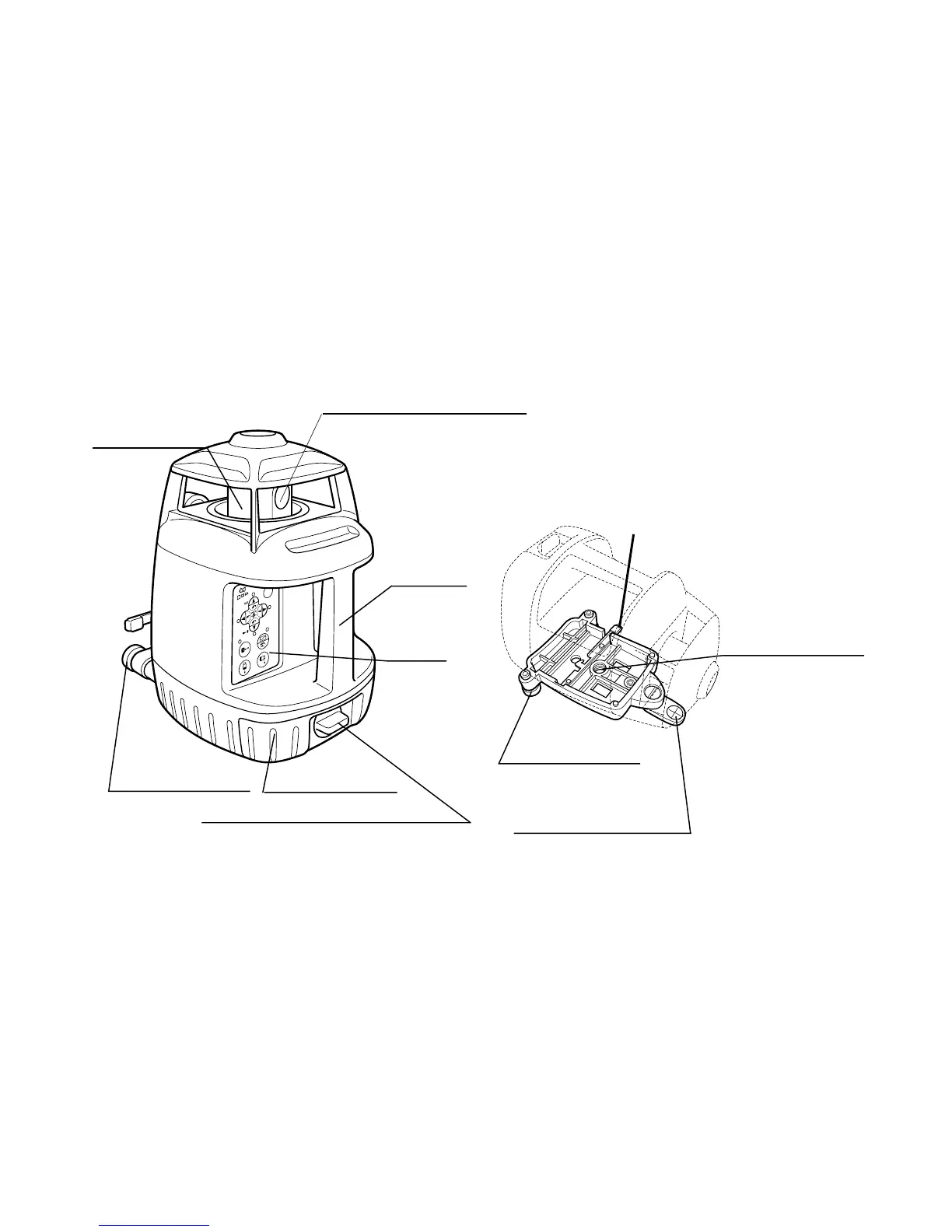

Nomenclature and Functions
Handle
Rotary head
Battery compartment lock
Battery holder
Laser emitting window
Beam aperture
Leveling screw
Panel
RL-VH3G/A/B
Floor mount
(Floor mount is supplied as an Optional
accessory for RL-VH3B)
Wall mount/dismount lever
(Only used for wall mount)
Leveling screw
Floor fixing leg,
rotating type
Screw for tri-
pod W5/8
