Topcon RL-VH3A - Key Functions and Operation; Arrow Key Functions

17

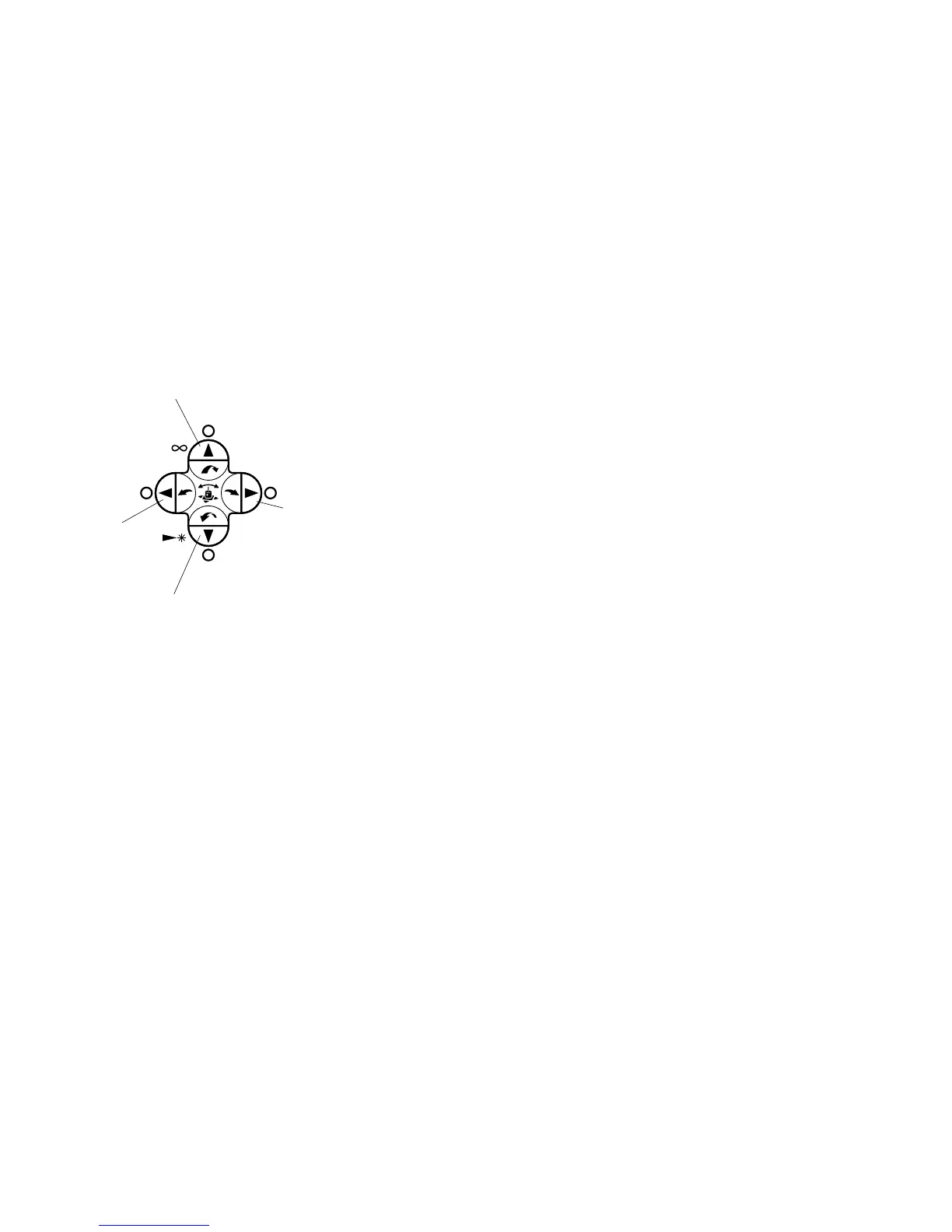

Arrow keys
Y1
Y2
X2
X1
• Use to select either Y1 or Y2 direction in auto slope.
(Horizontal rotation only)
•Focussing the laser in manual focussing mode.
• Selecting a direction the beam should move to scan the
floor target in auto line control mode.
(Vertical rotation only)
• Setting Y axis grade in manual slope mode.
(Horizontal rotation only)
• Selecting either X1 or X2 direction in auto slope.
• Selecting a control direction in auto line control mode.
(Vertical rotation only)
•Moving the laser in manual line control mode.
(Vertical rotation only)
• Selecting X axis direction in manual slope.
(Horizontal rotation only)
Arrow keys
Y2, Y1 key functions
X2, X1 key functions
