ASSEMBLY PROCEDURE

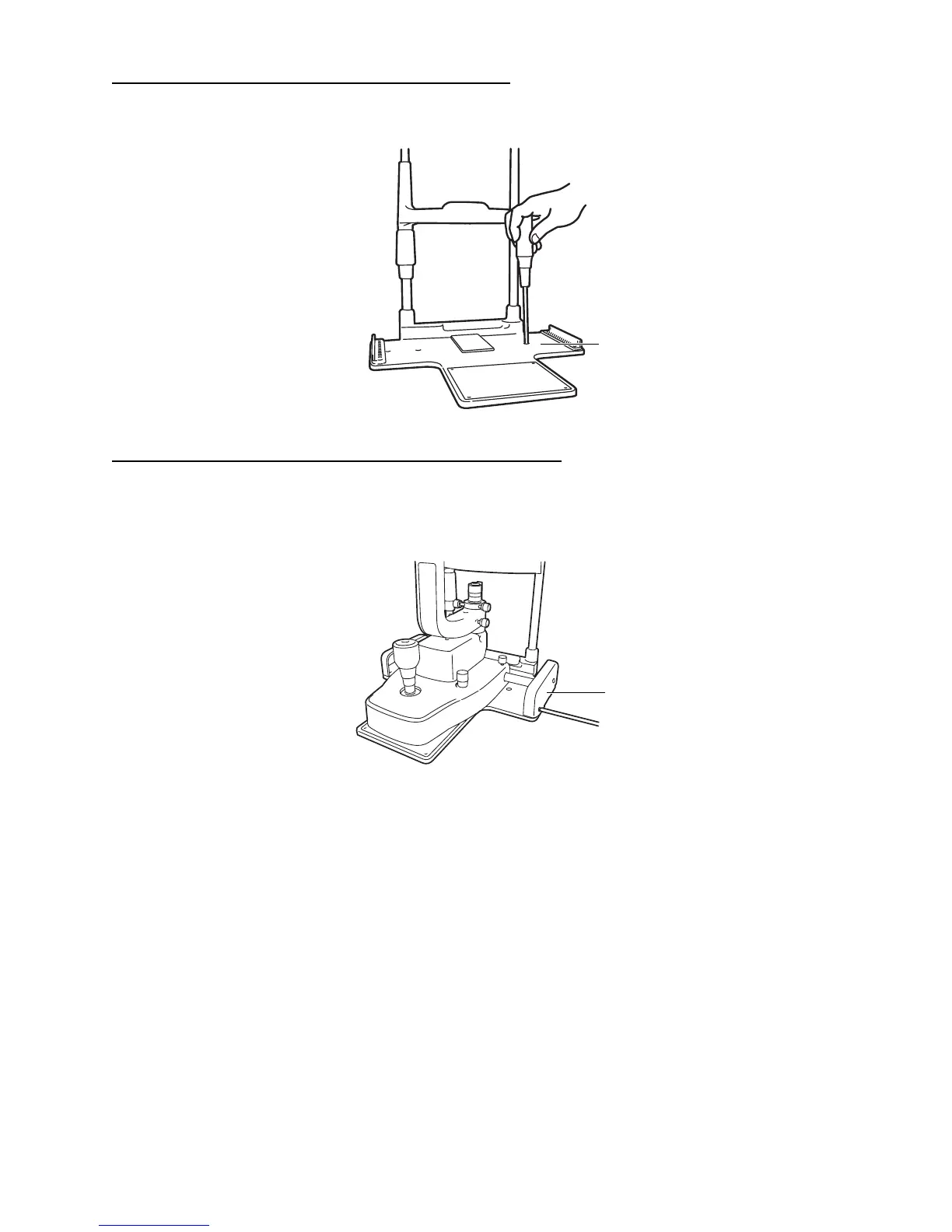

SECURING THE CHINREST BASE PLATE
1
Secure the chinrest base plate to the unit type table top with 2 screws (9).
SECURING THE BASE UNIT AND RAIL CO
VER
1
Align the wheel of the base unit with the rail of the chinrest base plate.
2
Secure the rail covers with 4 screws (12): (2 screws each on the right and left sides).
Chinrest base plate
Rail cover
