Charging
2-2
P/N: 1027700-01
Getting Acquainted

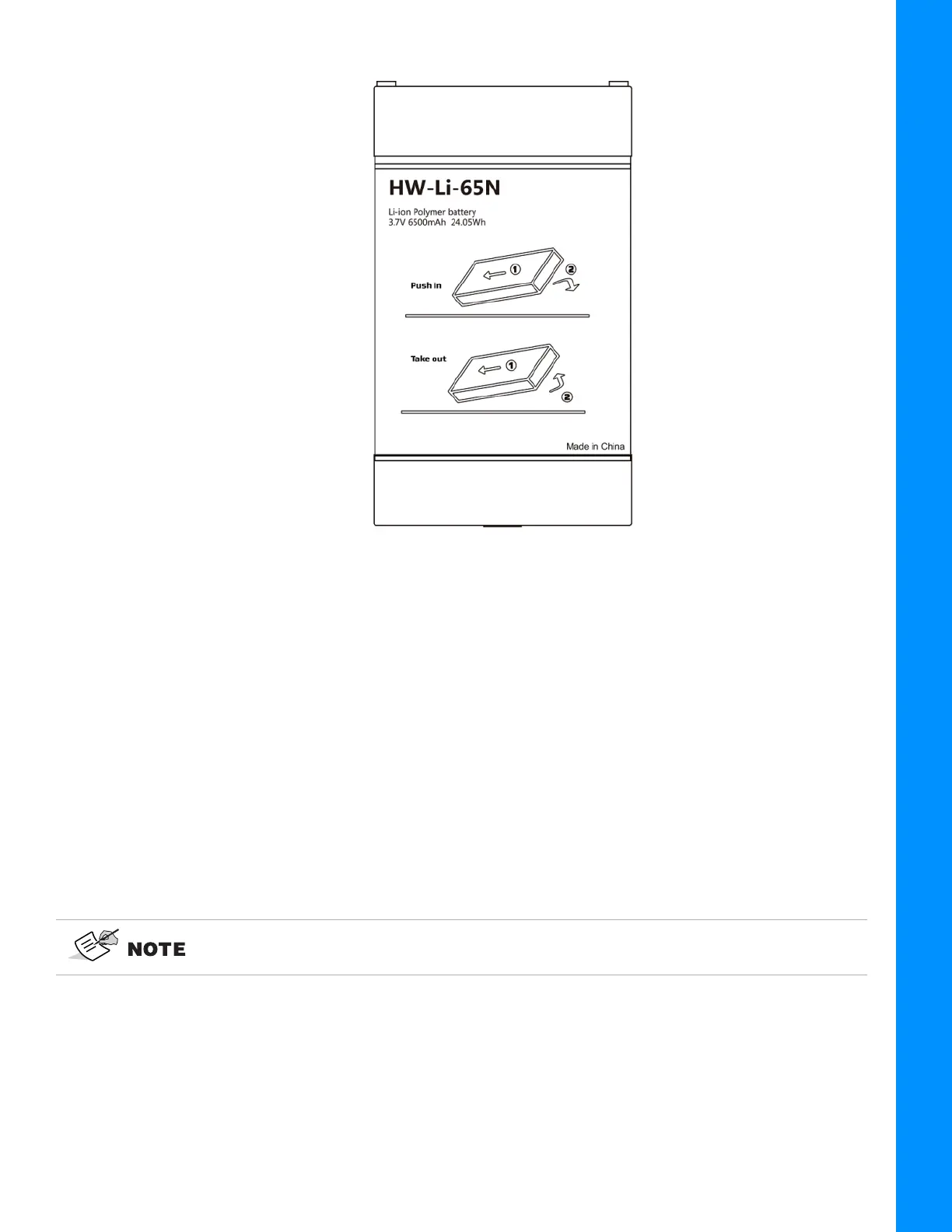

Figure 2-3: Inserting the Battery
4. Close the back cover and turn the back cover screw to the lock position.
Charging
• DC adapter: Open the DC IN cover on the right side of the device, and charge with the DC
adapter. Charging current can reach 2A.
• USB cable: A USB cable can also be used to charge the device, and current is limited to 500mA.
Turning the Collector On/Off
1. Make sure the battery has enough power, or connect the T18 to the DC adapter.
2. Press power button for three (3) to five (5) seconds to turn on (until the boot screen appears).
3. Press the power button for three (3) to five (5) seconds, and confirm to power off.
If there are abnormal situations, such as the T18 does not operate normally, use the
tip of the stylus to press the reset key to restart the T18.
