Topens A3 - Clearance and Binding Checks

15

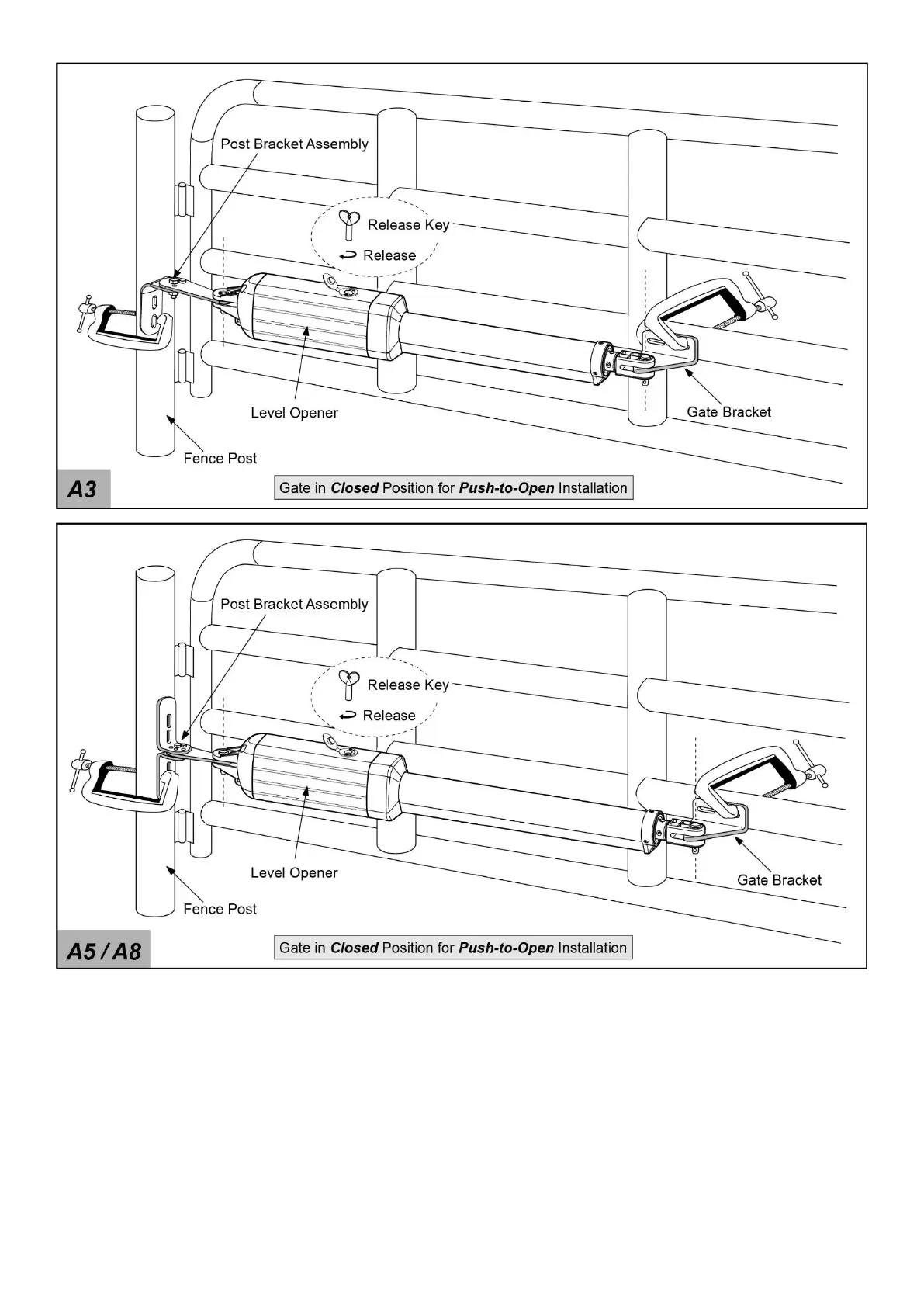

5. Make sure that there is a minimum clearance of 2.5cm between the gate and the opener and that the opener
and the PSO part are not binding in both the gate-open and gate-closed positions. If there is not at least 2.5cm
of clearance or if the opener and the PSO part are binding, rotate the PSO part and/or move the Post Bracket
Assy. to obtain the minimum clearance and eliminate the binding.
