16

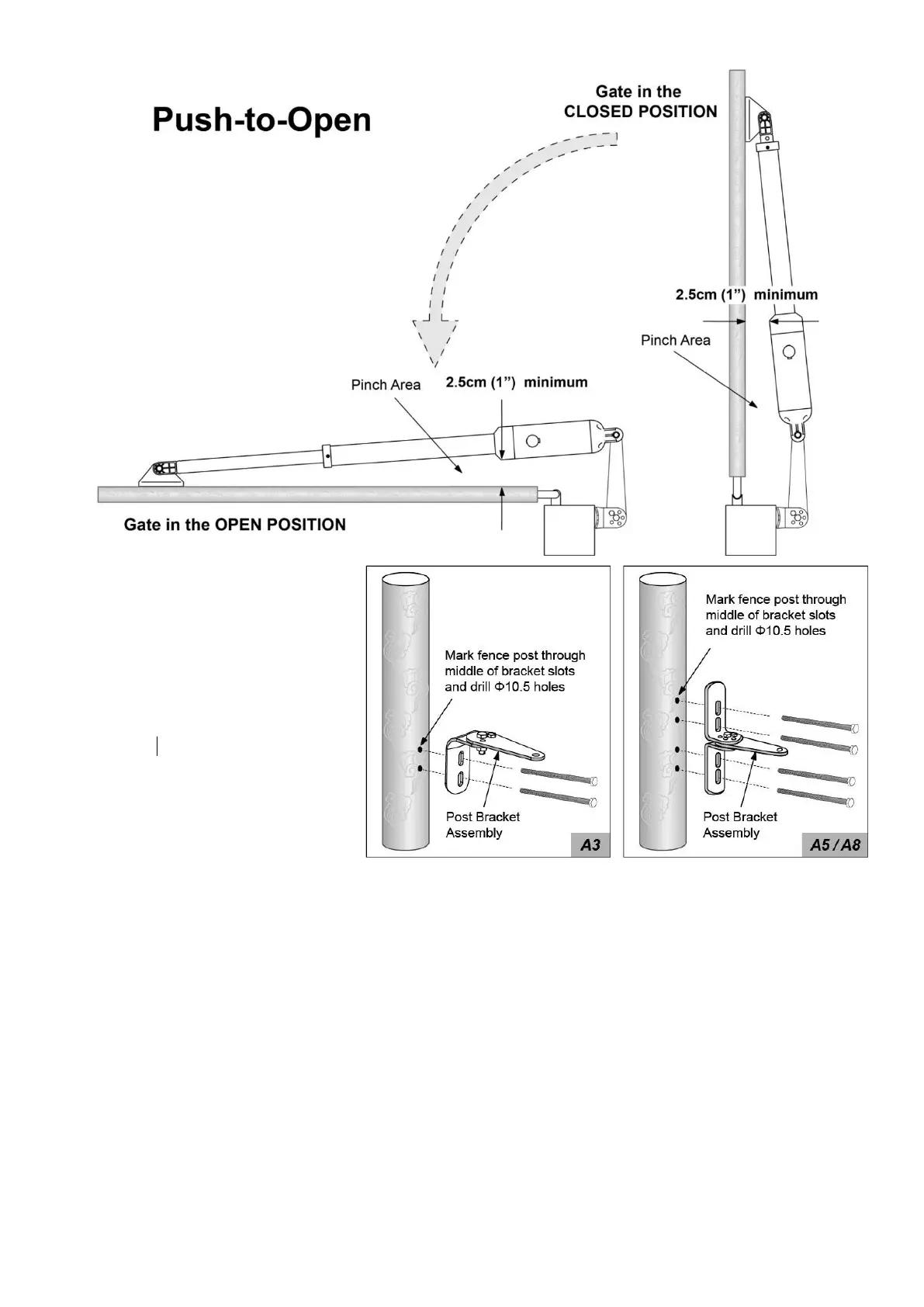

6. Sign the bolt-hole point on the gate
post and gate. Do this by placing a
punch or a sign in the middle of each bolt
slot on the post bracket and the gate
bracket. It allows slight adjustments to
the post bracket. Then remove the
opener and brackets assy. by taking off
the C-clamps.
7. Drill 10.5 mm diameter holes through
the post and the gate at the marked
locations.
8. Attach the post bracket assemblies to the gate posts by inserting M10 x 200 bolts through each post bracket
assy. and the drilled holes in the gate post. Fasten each bolt with one ￠10 washer, one ￠10 lock washer, and
one ￠10 nut.
9. Attach the gate brackets to each gate by inserting two M10 x 75 bolts through the gate brackets and the
drilled holes in the gates. Fasten each bolt with one ￠10 lock washer, and one ￠10 nut.
