Topens A3 - Final Clevis Pin Securing

17
10. Cut off any part of the bolts that extend beyond the tightened nuts.

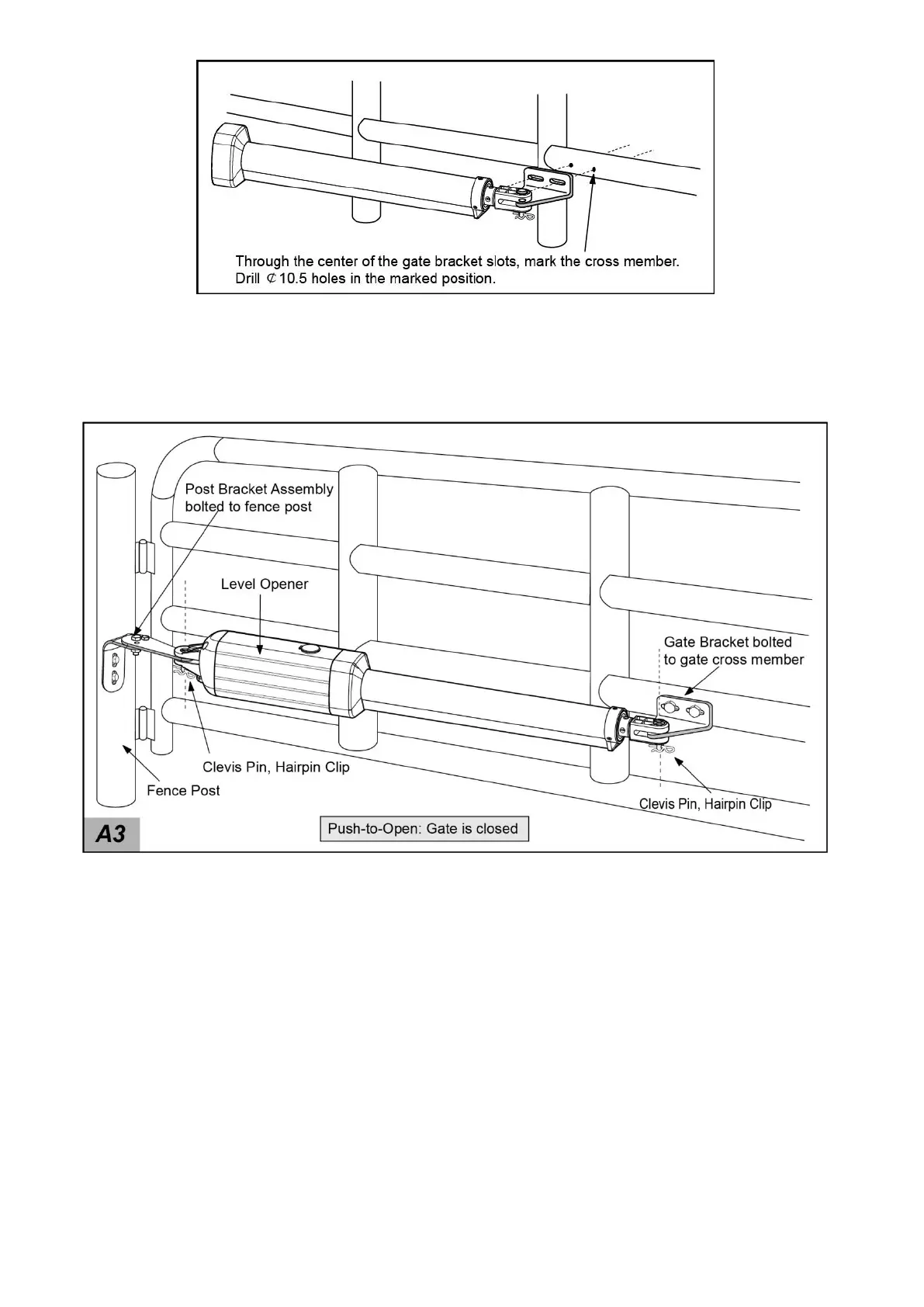

11. With the opener fully retracted and with the gate in the fully closed position (for Push-to-Open installation),
insert a clevis pin through the gate opener and the Post Pivot Bracket and insert another clevis pin through the
gate opener and the Gate Bracket. Secure each clevis pin with a hairpin clip.
