OPERATION MANUAL
42
SETUP (TOPS SERIES)

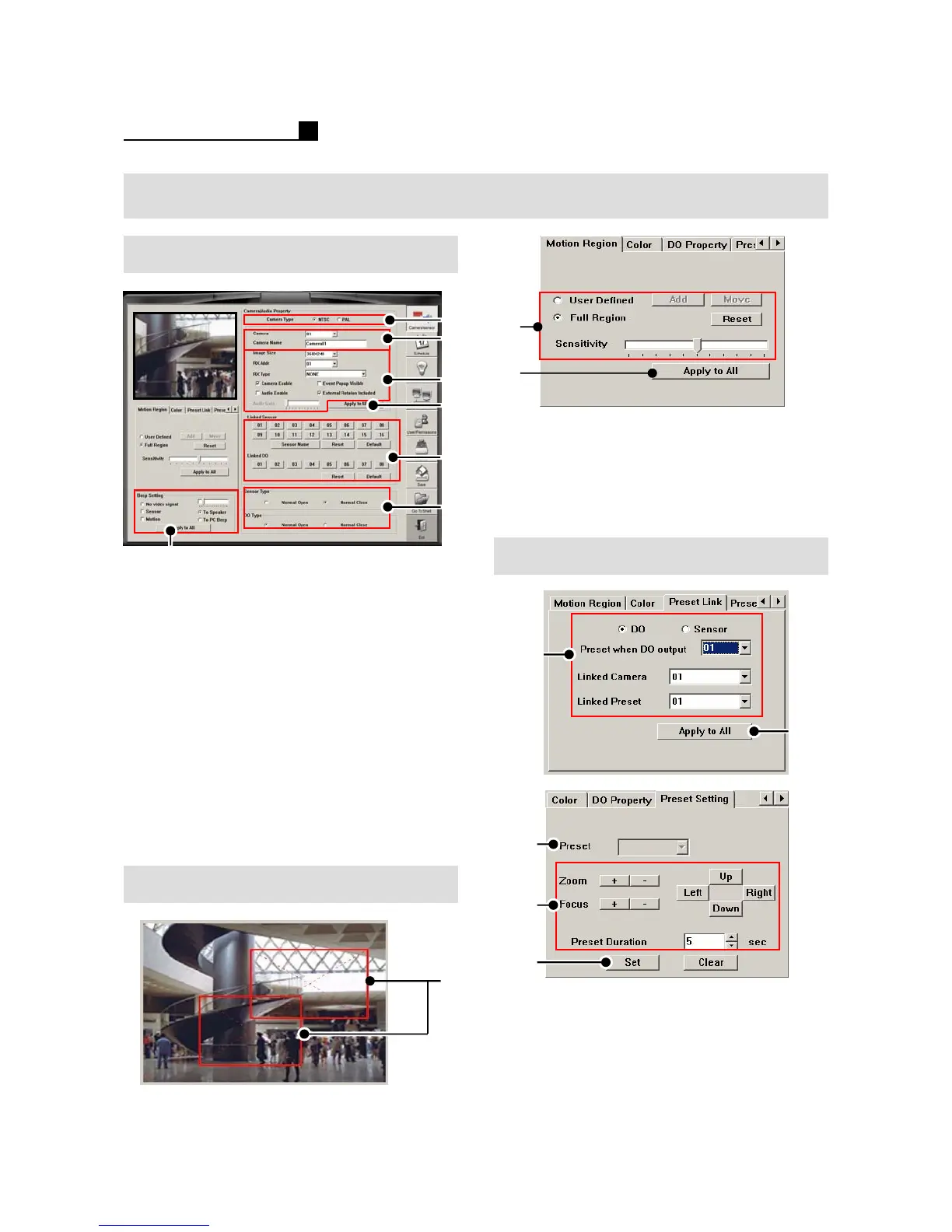

Camera /Sensor
①NTSC/PAL
② Camera Name
③ PTZ Protocol & Address
Camera On/Off, Audio On/Off,
Event Pop up, Audio Gain
Resolution:
TOPS 8916 : 320 x 240, 640 x 480
TOPS 5916/5216/6916
NTSC: 352 x 240, 720 x 240, 704 x 480
PAL: 352 x 280, 720 x 280, 704 x 560
④ Apply to all cameras
⑤ Linked Alarm & DO (Alarm Out)
⑥ Sensor & DO Type
⑦ Beep Setting
① User setting area
② User Defined – Small area
Full Region –Full area
Sensitivity
③ Apply to all cameras
①
PTZ
⑦
①
⑤
⑥
②
③
④
③
②
Motion Area
②
①
③
④
⑤
① D/O(ALARM OUT), Sensor
② Apply to all cameras
③Preset No.
④Preset Setting
⑤ Save the Setting
