Toptech MultiLoad II DIV-2 User Manual

56

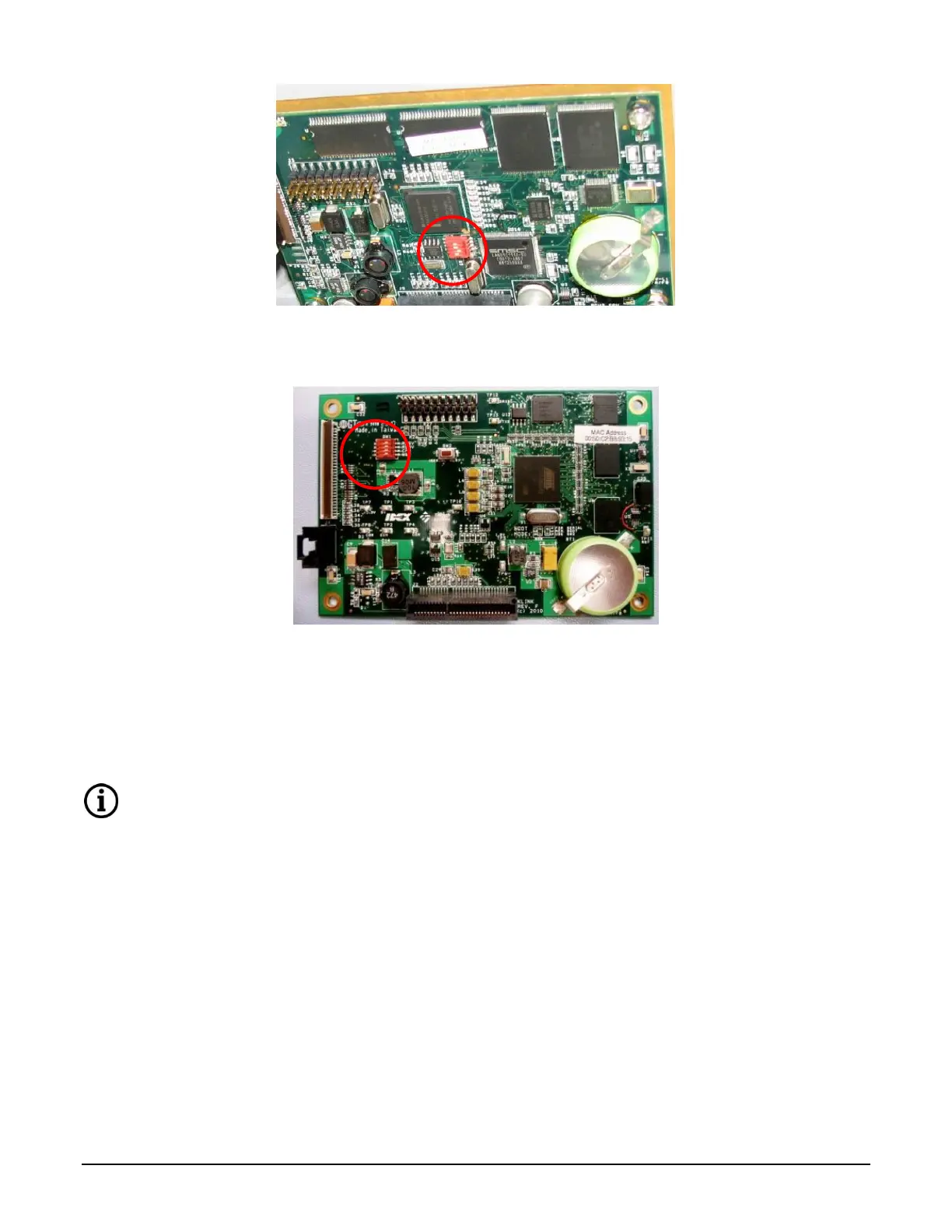

Figure 6.4 CPU DIP Switches for Program and W&M Access (rev 1.0)
Figure 6.5 CPU DIP Switches for Program and W&M Access (rev 2.0) Field Switch Access Control
(MultiLoad II Only)
The MultiLoad II also has the ability to accept field inputs for the program mode and W&M access
switches. Review the “MultiLoad II User Guide” for more information.
RCU II INPUTS RECEIVED FROM EXTERNAL FIELD DEVICES CANNOT BE CONFIGURED TO CONTROL
PROGRAM MODE ACCESS. WEIGHTS AND MEASURES FUNCTIONALITY IS UNDEFINED FOR RCU II
MultiLoad II/ RCU II DIV-2 Keypad 6.2
The MultiLoad II/ RCU II DIV-2 keypad has 47 keys, including alpha, numeric, and function keys, which
are used to:
- Select menu items and fields
- Enter data in fields
- Initiate actions
- Return to previous screens
