Toptech MultiLoad II DIV-2 User Manual

77
Installation:
1. Insert a new Ice shield and align with holes.
2. Replace prox ring and align holes.
3. Replace the four screws holding the prox ring and tighten using the T10 torx bit.

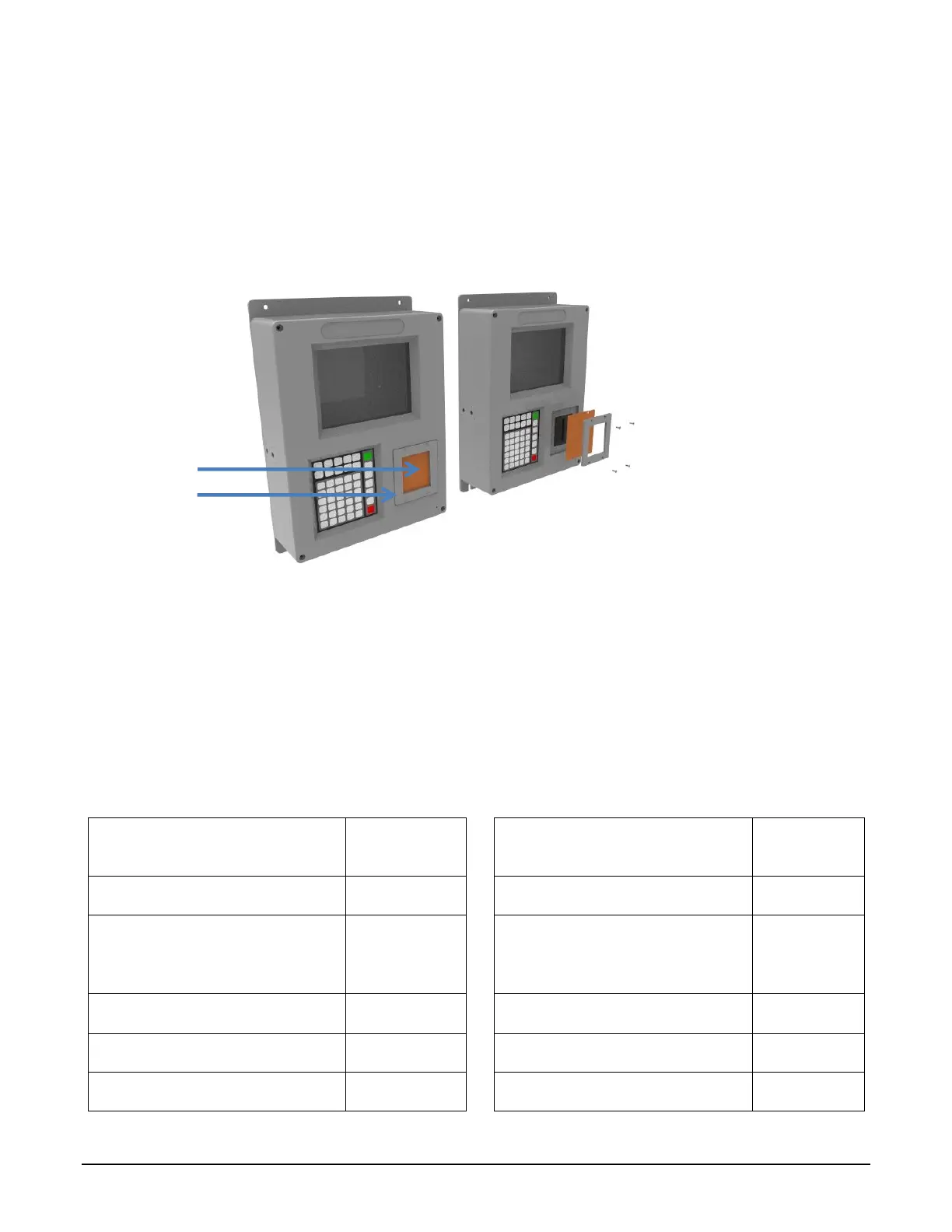

Figure 7.14 Ice Shield Assembly Installation Slotted Card Holder
Overview Parts List and Part Numbers 7.8
The Toptech replacement part numbers are shown in the table below:
Part
Part Number
Part
Part
Number
DIV-2 Display Assembly
4720
AC Power Supply Board :
Card reader (current) Prox Non
Captive, captive, TWIC (RCU
II)
4726
Revision 1.0
obsolete
DIV-2 Keypad
1257
Revision 1.1
4728
Magnetic Switch Assembly
1900
DC Power Supply Board :
Magnetic Bolt
1901
Revision 1.0
obsolete
ICE SHIELD
PROX RING
