Checks and repairs on electrical components
To check the shunt motor winding, proceed as follows:

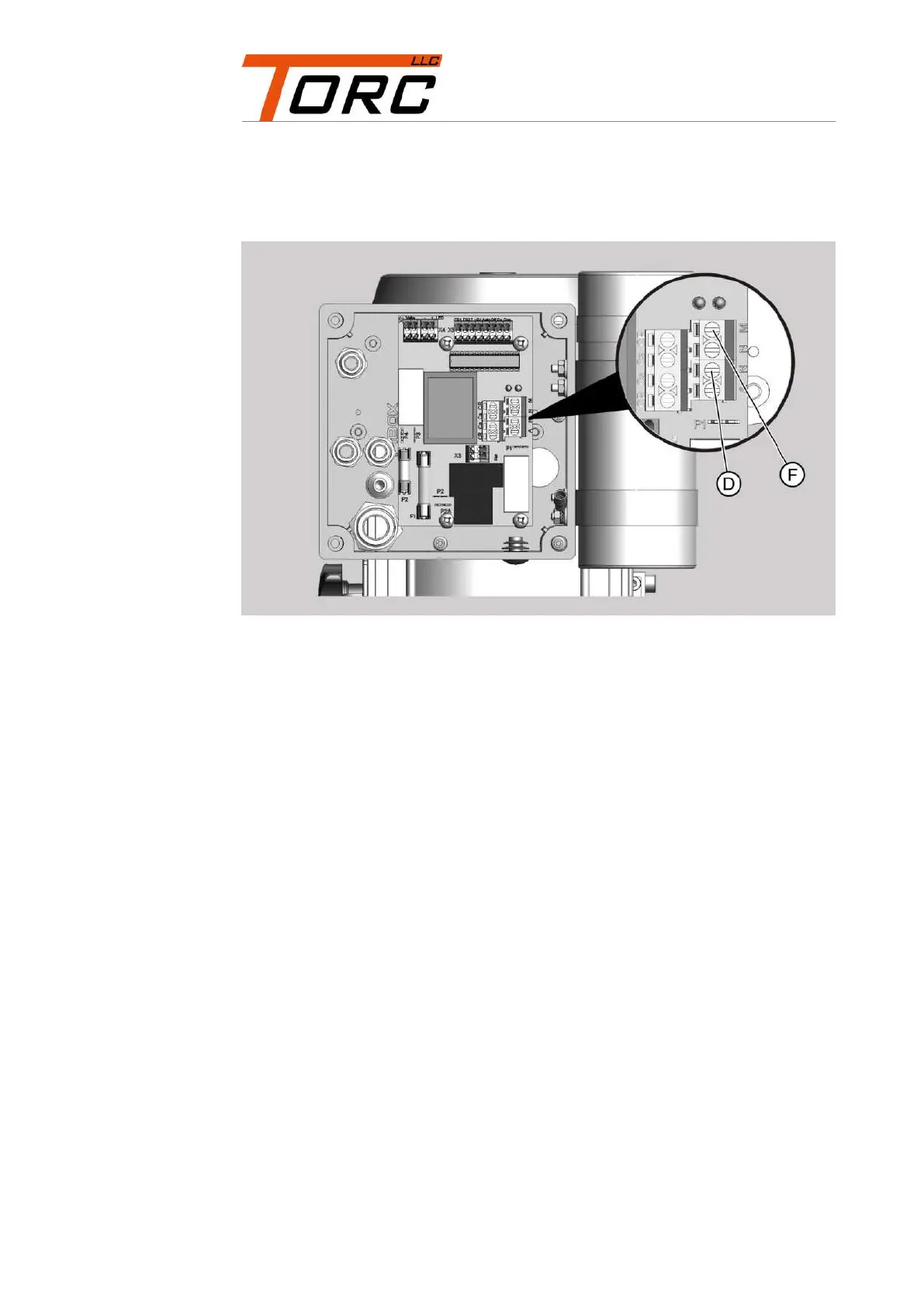

Disconnect the blue wire from the connecting terminal (D) and the white
wire from the connecting terminal (F).
Connect a multimeter to the blue and the white cable.
Measure the electrical resistance.
The nominal resistance is 5.2 Ω.
A significantly different resistance indicates a defective stator.
Connect the wire previously removed to the corresponding connecting
terminals.
If the stator is defective, send the unit to the manufacturer for repair.
Mount the cover of the electric control.
