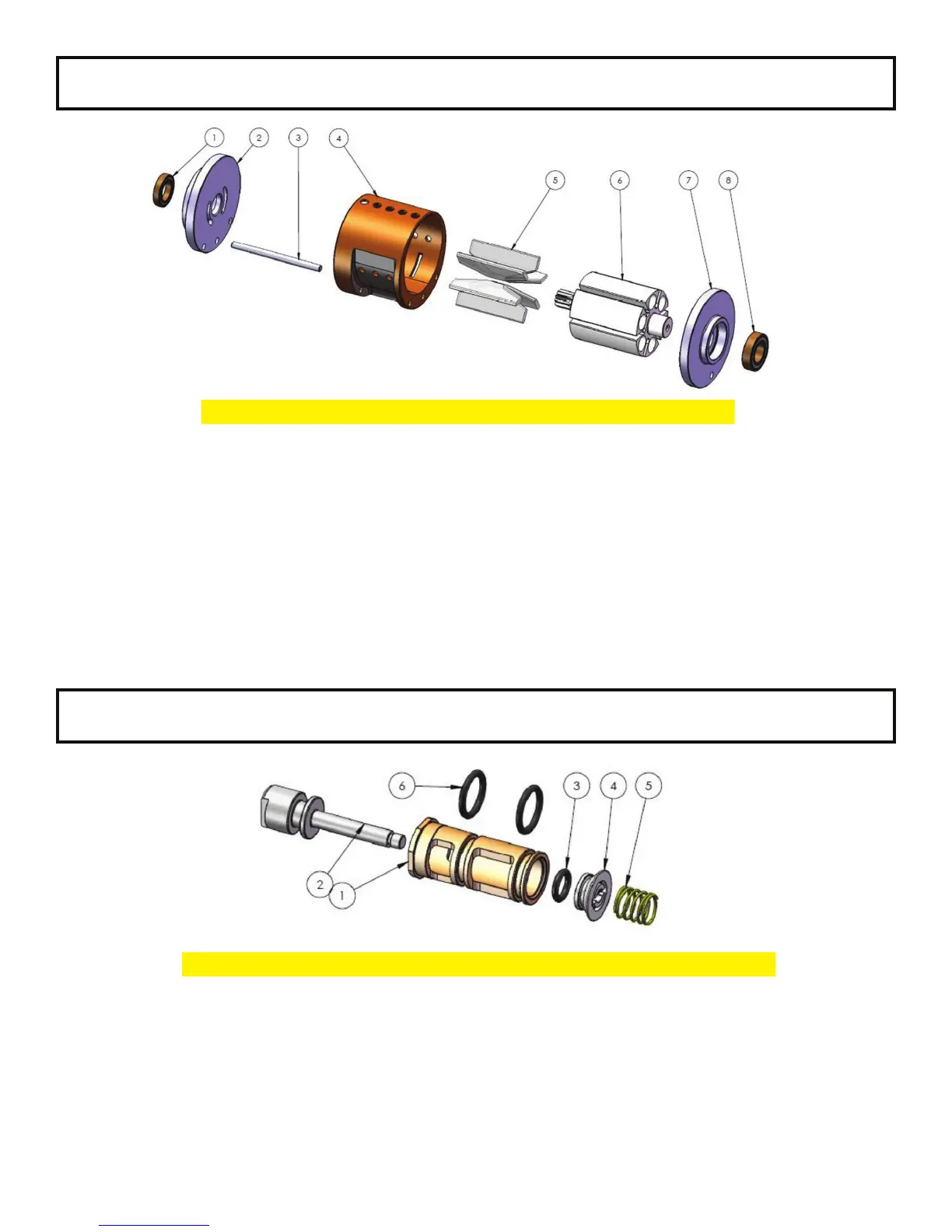

RAPTOR MOTOR ASSEMBLY
RAPTOR POPPET VALVE ASSEMBLY
ITEM QT Y. PART # DESCRIPTION
1 1 RP-AM19-05 FRONT BEARING
2 1 RP-AM19-07 FRONT END PLATE
3 1 RP-AM19-09 DOWEL
4 1 RP-AM19-11 MOTOR HOUSING
5 6 RP-AM19-13 VANES
6 1 RP-AM19-15 ROTOR
7 1 RP-AM19-17 BACK END PLATE
8 1 RP-AM19-19 BACK BEARING
N/A 1 RP-AM19-11-1 MOTOR ASSEMBLY
ITEM QT Y. PART # DESCRIPTION
1 1 RP-AM19-29-1 POPPET VALVE BODY
2 1 RP-AM19-29-2 POPPET VALVE STEM
3 1 RP-AM19-29-3 POPPET VALVE SMALL O-RING
4 1 RP-AM19-29-4 POPPET VALVE
5 1 RP-AM19-31 POPPET VALVE SPRING
6 2 RP-AM19-33 POPPET VALVE LARGE O-RING
N/A 1 RP-AM19-29 POPPET VALVE ASSEMBLY
