TorcUP RP-500 - Motor Assembly

21

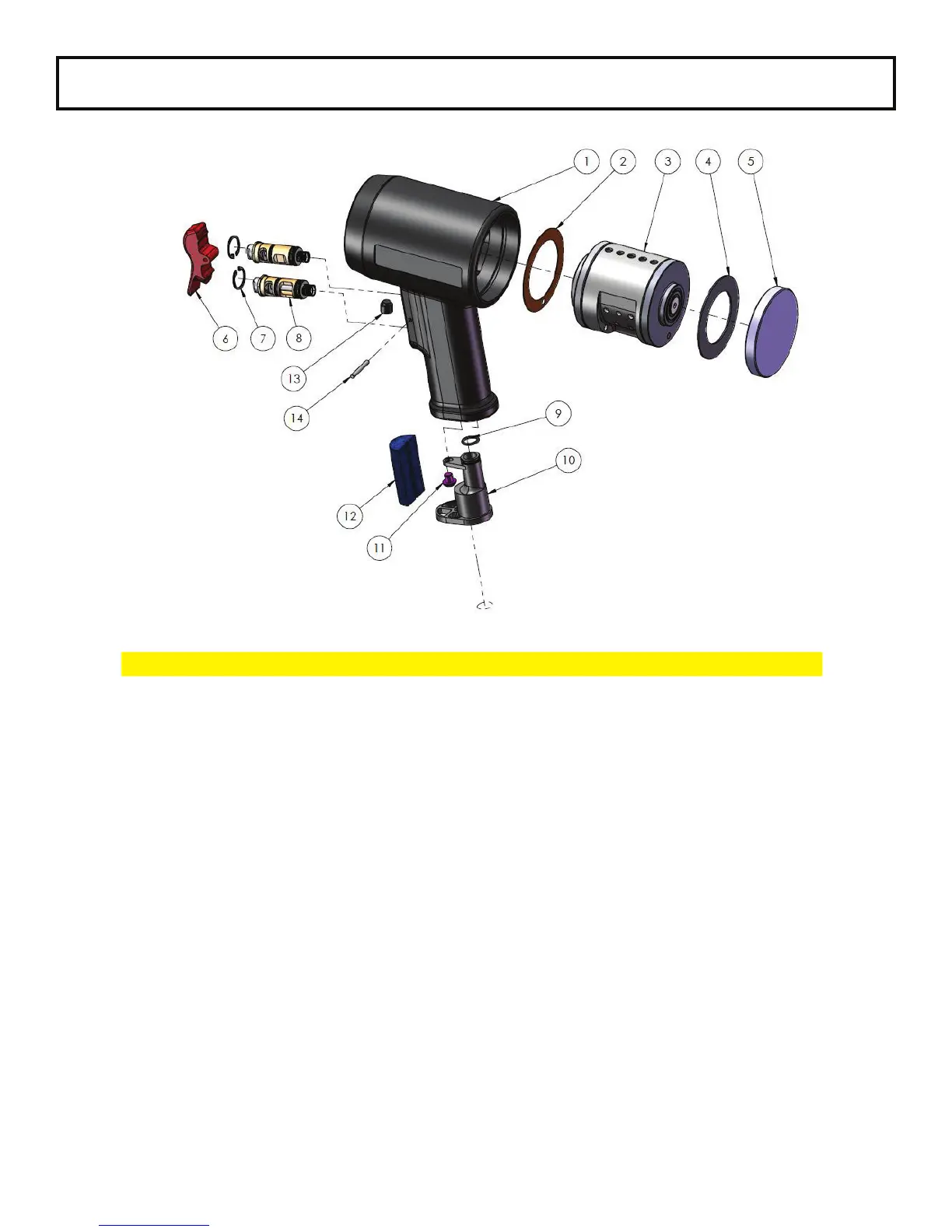

RAPTOR HANDLE ASSEMBLY
\
ITEM
QTY.
PART #
DESCRIPTION
1
1
RP-AM19-01
HANDLE HOUSING
2
1
RP-AM19-03
GASKET
3
1
RP-AM19-11-1
MOTOR ASSEMBLY
4
1
RP-AM19-21
BACKHEAD SPACER
5
1
RP-AM19-23
BACKHEAD
6
1
RP-AM19-25
TRIGGER
7
2
RP-AM19-27
SNAP RING
8
2
RP-AM19-29
POPPET VALVE ASSEMBLY
9
1
RP-AM19-33
INLET BUSHING O-RING
10
1
RP-AM19-35
INLET BUSHING
11
1
RP-AM19-37
INLET BUSHING CAP SCREW
12
1
RP-AM19-35-1
INLET BUSHING MUFFLER
ELEMENT
13
1
RP-AM19-41
BALL RETAINER
14
1
RP-AM19-43
DOWEL PIN
N/A
1
RP-AM19-ASSY
RAPTOR HANDLE ASSEMBLY
RAPTOR HANDLE ASSEMBLY
ITEM QT Y. PART # DESCRIPTION
1 1 RP-AM19-01 HANDLE HOUSING
2 1 RP-AM19-03 GASKET
3 1 RP-AM19-11-1 MOTOR ASSEMBLY
4 1 RP-AM19-21 BACKHEAD SPACER
5 1 RP-AM19-23 BACKHEAD
6 1 RP-AM19-25 TRIGGER
7 2 RP-AM19-27 SNAP RING
8 2 RP-AM19-29 POPPET VALVE ASSEMBLY
9 1 RP-AM19-33 INLET BUSHING O-RING
10 1 RP-AM19-35 INLET BUSHING
11 1 RP-AM19-37 INLET BUSHING CAP SCREW
12 1 RP-AM19-35-1 INLET BUSHING MUFFLER ELEMENT
13 1 RP-AM19-41 BALL RETAINER
14 1 RP-AM19-43 DOWEL PIN
N/A 1 RP-AM19-ASSY RAPTOR HANDLE ASSEMBLY
