CAL Optional Design
- 11-
4. Disassembling and Reassembling
4.1. General
As its advantageous point, the CAL pump can be disassembled without demounting the volute casing (1020) from the base plate and the
pipelines. In disassembling, be careful not to impact and damages the Pump. Refer to the Pump Sectional Drawing submitted at the time of
order in disassembling and reassembling.
When rubber shaft joint is used When flanged flexible shaft joint is used
The above figure shows an example of pump and motor configuration. The type of configuration varies depending on the pump model and the motor being used.

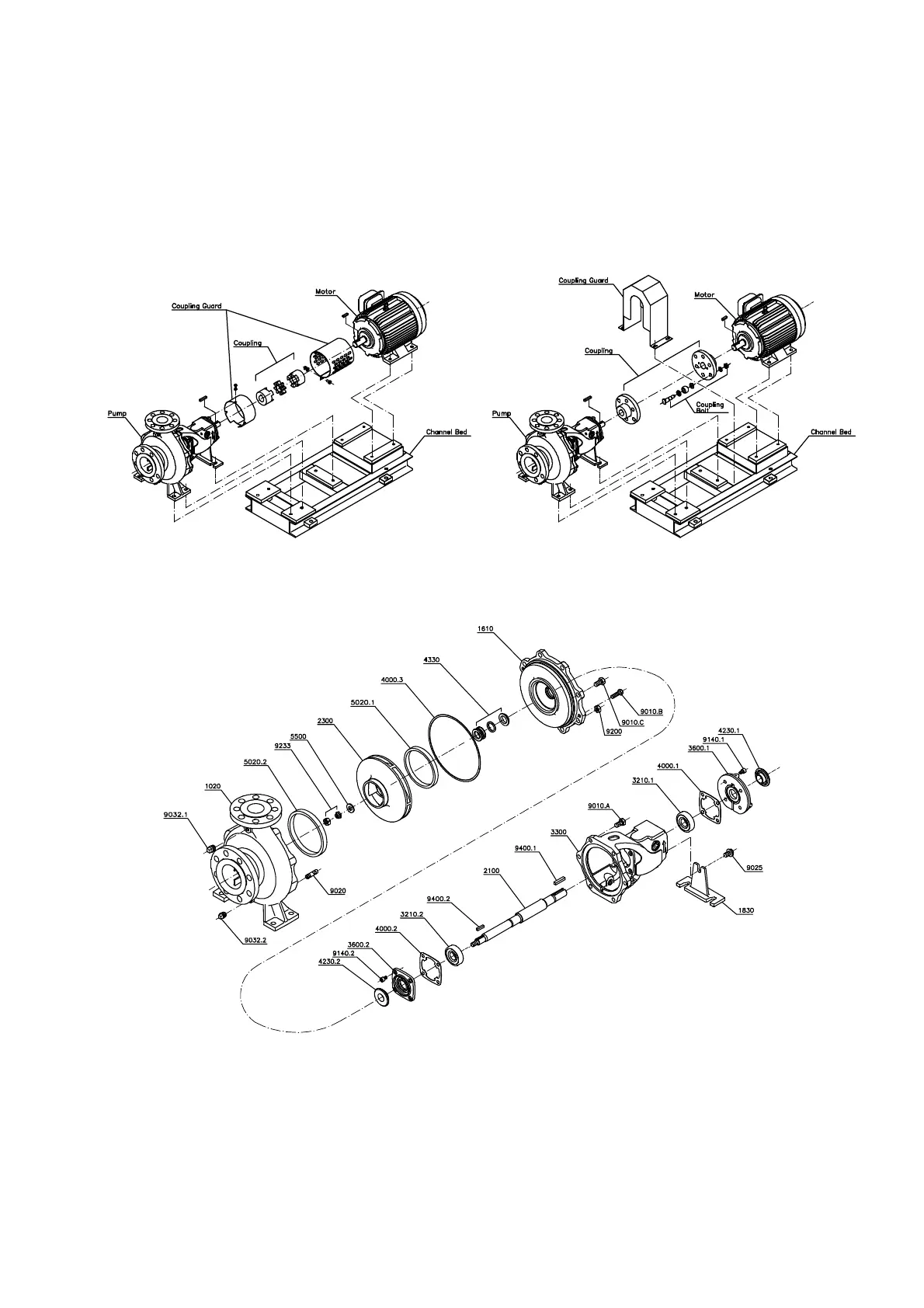

Fig 4.1-1 Layout of Pump and Prime mover
The above figure shows an example of pump and motor configuration. The type of configuration varies depending on the pump model and the motor being used.
See the Pump Sectional Drawing submitted at the time of order.
Fig 4.1-2 Illustrated parts breakdown of pump
