0.3. Transportation
When transporting the pump directly coupled to a motor, apply a
wire rope to the pump and motor, as illustrated in Fig 0.3-1. (Do
not apply absolutely a rope to the eye-bolt of the motor.)
Fig 0.3-1
0.4. Construction
The CAL pumps provide single-stage, axial single-suction structure
for vertical (upward) discharge. The pump casing is of back
pull-out type with integral-casted axial suction nozzle and top
discharge nozzle and support foot. The pump can be disassembled
and internally inspected without removing the casing (1020) from
the piping.
Refer to
Table 0-1
for a representative Pump Sectional Drawing.
Table 0-1 Pump structure
Pump structure
Reference
figure
Mechanical seal (type of CA)
Oil lubrication (round oil gauge)
Fig 0.4-1
Gland packing
Grease lubrication
Fig 0.4-2
Mechanical seal
Oil lubrication (constant level oiler)
Fig 0.4-3
Note1. The above figure is one structural example.
Note2. In the case of a mechanical seal of the option type, refer to
Fig 0.4-3
.

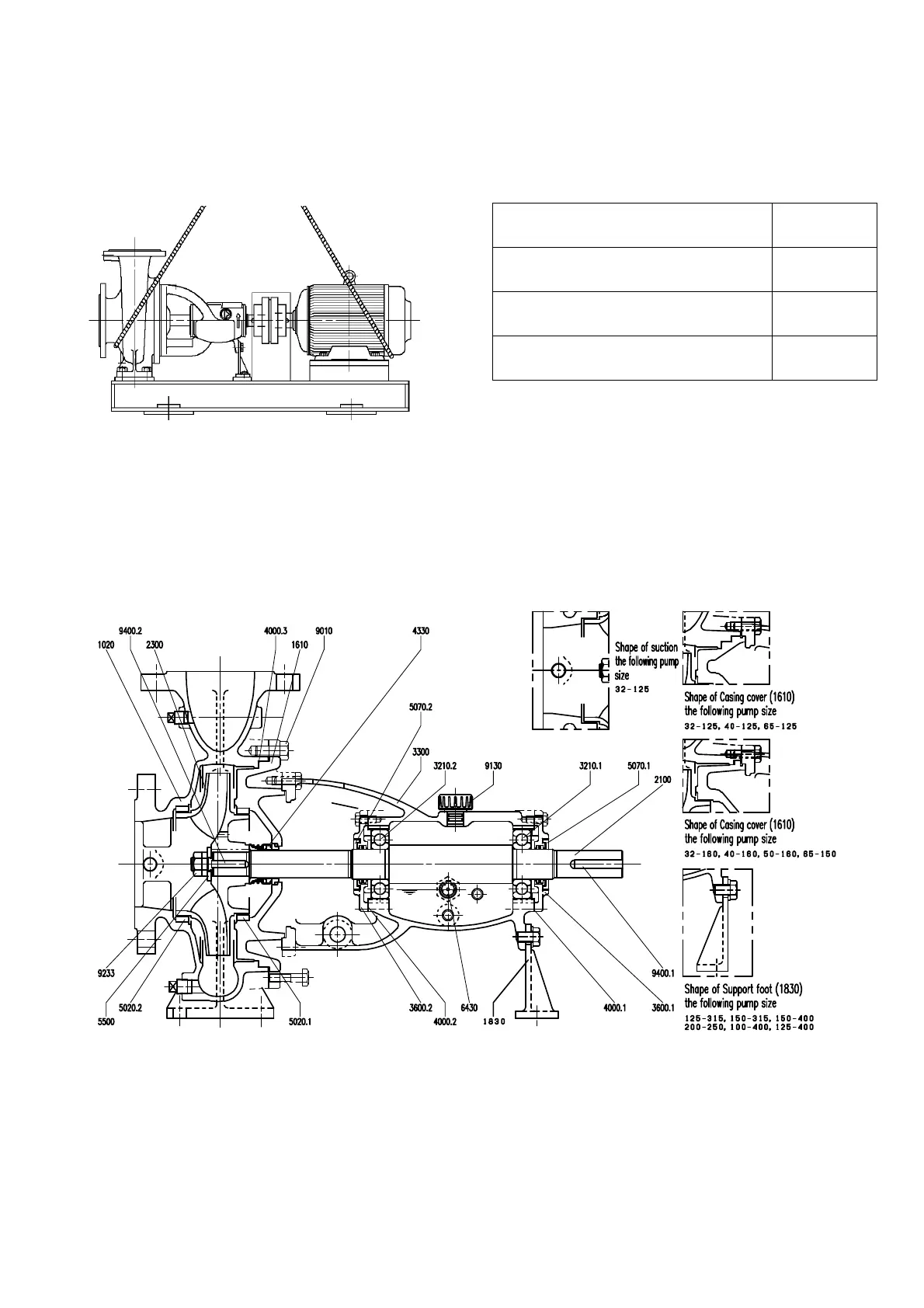

Fig 0.4-1 Sectional Drawing (mechanical seal type is “CA”, oil lubrication with round oil gauge)
