10 Instructions for Use TORMAX 2201 T-1165 e
4.3 Operation with an Operating Mode Switch u

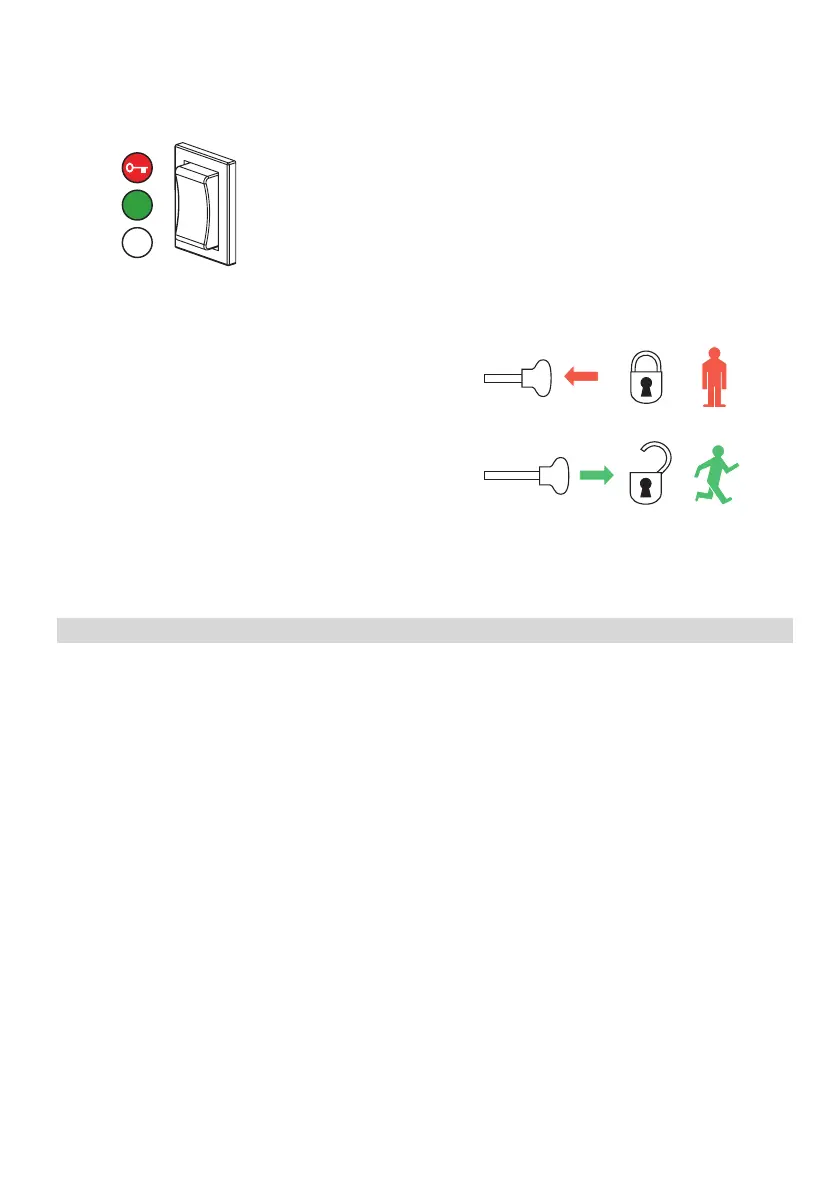

Selection of Operating Modes
The operating mode can be set directly.
4.4 Operation on Power Failure
Manual Locking u
• Press the manual operation knob inwards.
• Push the door closed by hand until the latch engages.
OFF
AUTO
OPEN
Manual Unlocking u
• Pull the manual operation knob outwards.
• Push the door open by hand.
Opening a Door with a Battery Unit u Using a Key Switch u
• Turn the key switch to the “on” position and hold in place for at least 5 seconds, then turn the key to
the original position.
The key switch must not remain permanently in the “on” opposition.
The battery is activated using the “wake up” function.
The door is unlocked, opens, closes slowly and locks again.
The battery switches off automatically again after 90 seconds.
T1166_13
T1305_4
