Instructions for Use TORMAX 2201 T-1165 e 3
1 General Information
Target Groups
• Operator of the automatic sliding door. The operator is the person responsible for the operation and
maintenance of the system.
• Persons instructed by the operator to carry out certain duties, for example the servicing and maintenance
of the automatic sliding door.
Area of Application
Product name, door system: Automatic sliding door
Product name, door drive: TORMAX 2201 Sliding Door Drive

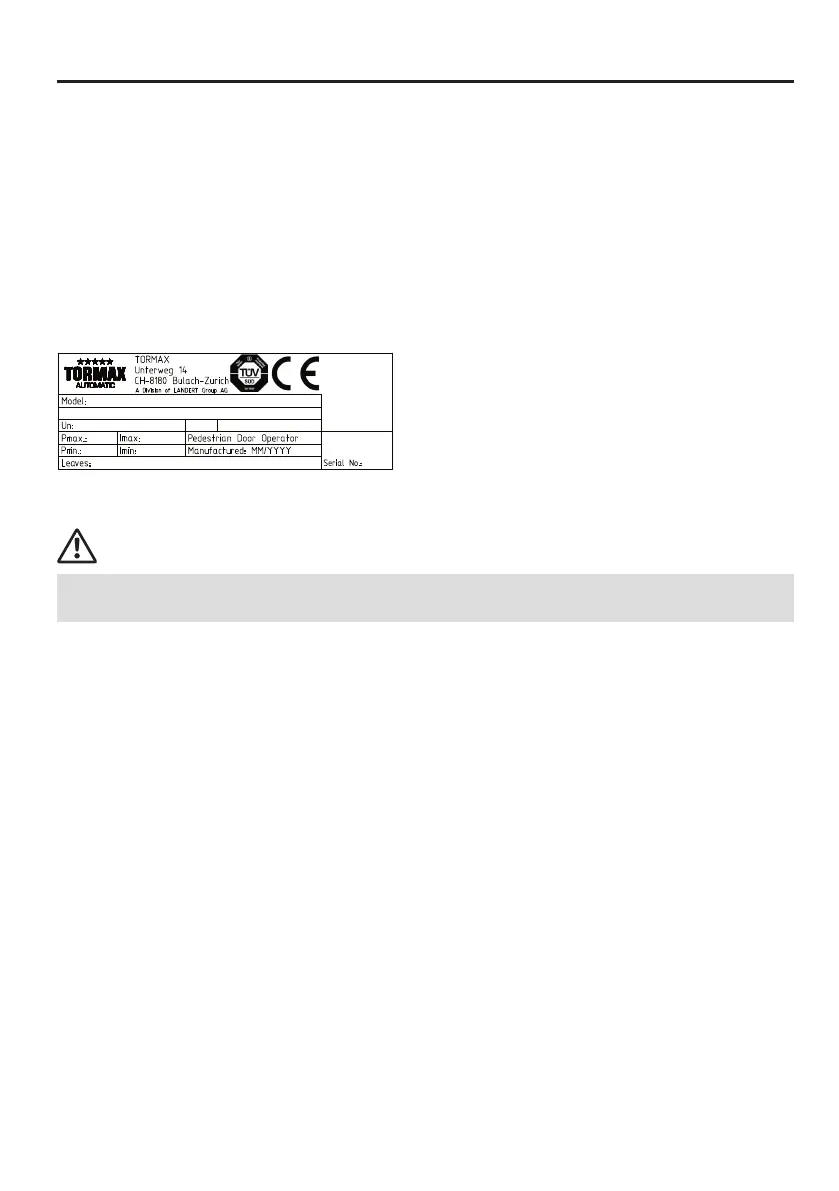

Identification plate: The identification plate with the serial number is attached to the header section.
<
Explanation of the Symbols
The Warning message warns about possible risk of injury.
Text which is highlighted in grey MUST be observed to ensure that the system operates perfectly.
Failure to observe these sections can cause damage to equipment.
Functions marked with this symbol are the factory setting. However, they can be reprogrammed
by a skilled person.
Optional components which are not present in all systems.
Technical Data
Drive type Electro-mechanical sliding door drive with DC motor
Control system Control unit 2201 MCU8-CONU-85-B
Mains connection 1 x 230 V AC, 10 – 16 A / 1 x 115 V AC, 15 – 20 A, 50 – 60 Hz
Power consumption max. 200 W
Motor 24 V DC, 4,9 A
Sensor supply 24 V DC, 1 A
Protective class, drive IP 22
Ambient temperature – 20 °C to +50 °C
Noise emission level < 70 db (A)
