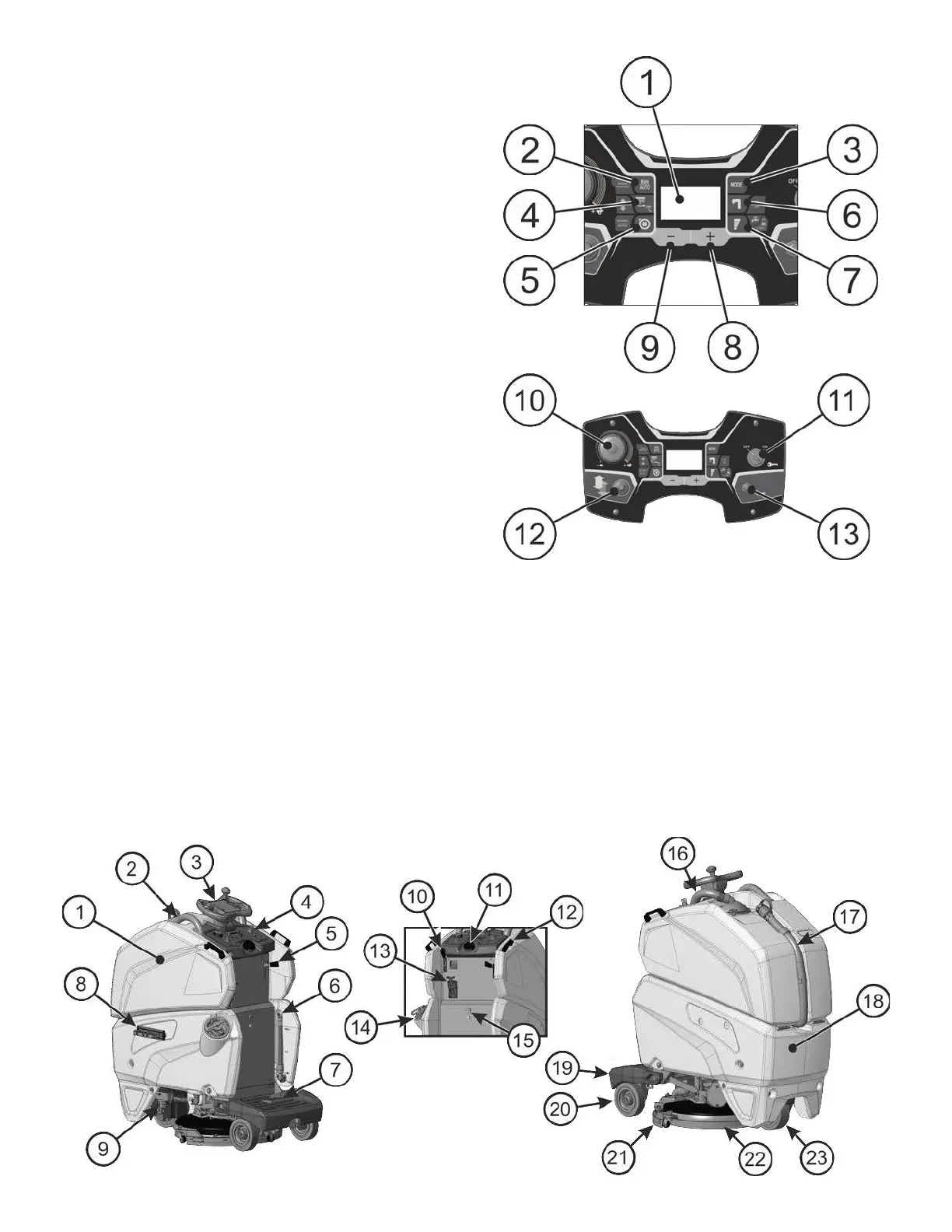

DISPLAY AND CONTROLS LEGEND
1. DISPLAY
2. CLEANING MODE SELECTION BUTTON:
• AUTOMATIC
• MANUAL
• BREAK WASHING
3. WORKING MODE SELECTION BUTTON
• STANDARD
• 3S
• 3SD
4. UP/DOWN AND UNLOCK, BRUSH BASE BUTTON
5. SUCTION MOTOR BUTTON
• ON/OFF
• SILENT MODE
6. OPEN/CLOSE SOLENOID VALVE
7. SOLUTION LEVEL BUTTON (ONLY FOR 3S/3SD)
8. MAXIMUM SPEED INCREASE BUTTON
9. MAXIMUM SPEED DECREASE BUTTON
10. SPEED ADJUSTMENT KNOB
11. OFF/ON KEY SWITCH
12. FORWARD/BACKWARD SPEED LEVER
13. HORN
MACHINE LEGEND
1. RECOVERY TANK
2. SQUEEGEE HOSE
3. STEERING WHEEL
4. DASHBOARD AND CONTROLS
5. SQUEEGEE LEVER
6. WATER LEVEL HOSE
7. DRIVE PEDAL
8. SIDE BROOMS SUPPORT LOCKS (OPTIONAL)
9. DETERGENT SOLUTION FILTER
10. WATER VALVE LEVER
11. DETERGENT SOLUTION LOAD CAP (ONLY FOR
3SD - OPTIONAL)
12. TANK LIFTING HANDLES
13. BATTERY CONNECTOR
14. SOLUTION LOAD CAP
15. BATTERY VAN CLOSING LEVER
16. SUCTION MOTOR HOSE
17. DRAIN HOSE
18. SOLUTION TANK
19. FOOTBOARD/OPERATOR PRESENCE DEVICE
20. REAR WHEELS
21. SQUEEGEE ASSEMBLY
22. BRUSHES BASE ASSEMBLY
23. TRACTION ASSEMBLY
