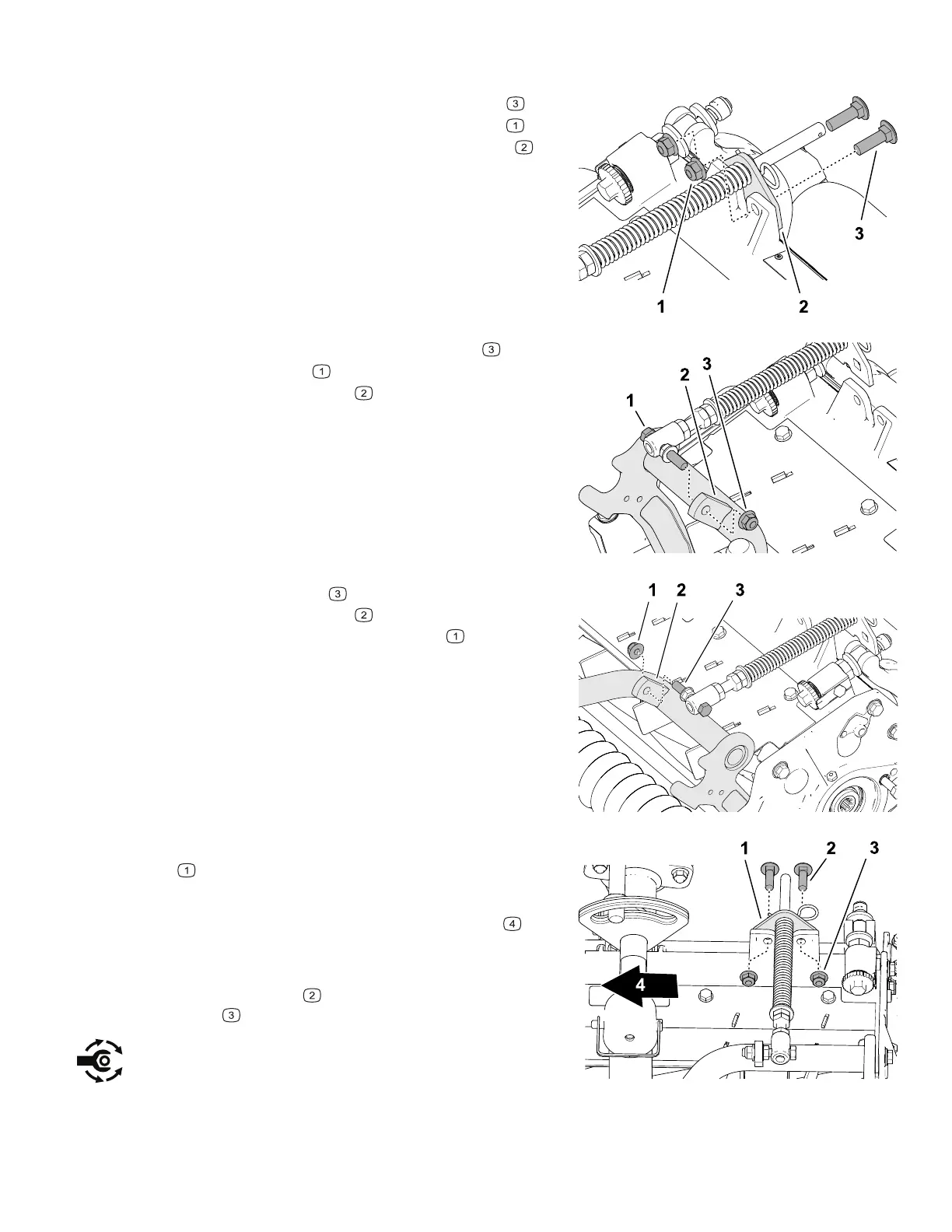

Positioning the Turf Compensating Spring (continued)

G410293

2. Remove the 2 flange locknuts (3/8 inch)

and 2 carriage bolts (3/8 x 1-1/4 inches)

that secure the turf-compensator bracket to

the cutting-unit frame.

G410295

3. Remove the flange locknut (3/8 inch) that

secures the bolt

of the turf compensation

spring to the right tab

of the carrier frame,

and remove the compensation spring from the

cutting unit.

Note: Do not remove the flange serrated nut

from the bolt.

G410296

4. Assemble the bolt of the turf compensation

spring to the right tab

of the carrier frame

with the flange locknut (3/8 inch)

G411000

5. Align the holes in the turf-compensator bracket

with the holes in the cutting-unit frame.

Note: The support loop of the hose guide

aligns toward the center of the machine

6. Assemble the turf-compensator bracket to the

cutting-unit frame with the 2 carriage bolts (3/8

x 1-1/4 inches)

and 2 flange locknuts (3/8

inch)

7. Torque the locknuts and bolts to 37 to 45 N∙m

(27 to 33 ft-lb).

3464-482A Page 3–7 Setup: Installing the Cutting Units
