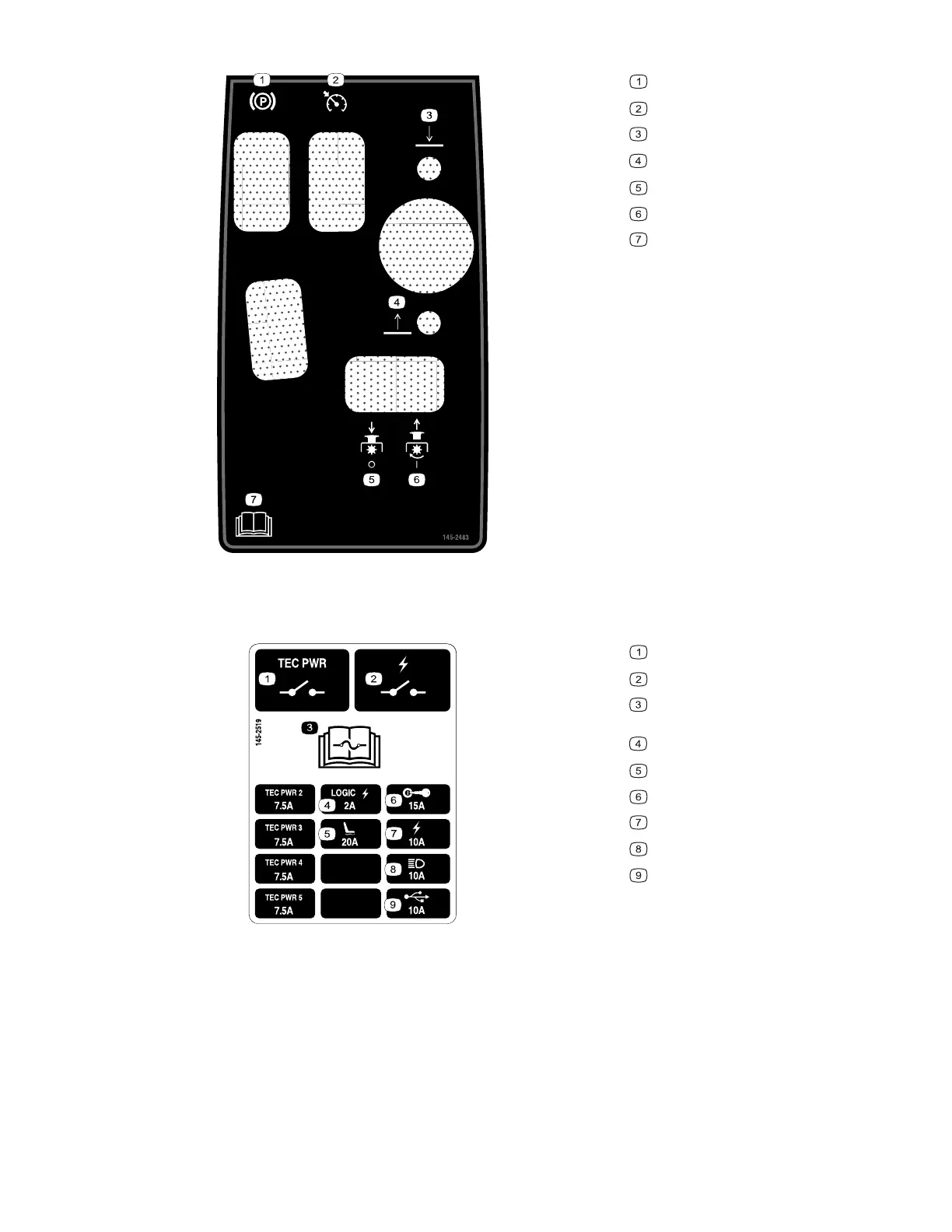

Decal
Part:
145-2483
s_decal145-2483
Parking
brake
Cruise
control
Lower
the
cutting
units.
Raise
the
cutting
units.
PTO—Disengage
PTO—Engage
Read
the
Operator
’s
Manual
.
Decal
Part:
145-2519
s_decal145-2519
TEC
power
relay
Electrical
power
relay
Read
the
Operator
’s
Manual
for
fuse
information.
Logic
electrical
power
Air-ride
seat
Key
switch
Electrical
power
Headlights
USB
power
point
3464-482A
Page
2–12
Safety:
Safety
and
Instructional
Decals
18
20
Table of Contents
Default Chapter
2
Table of Contents
2
Disclaimers and Regulatory Information
3
Chapter 1: Introduction
6
Intended Use
6
Getting Help
6
Manual Conventions
7
Safety Alert Classifications
7
Chapter 2: Safety
8
General Safety
8
Before Operation Safety
8
Fuel Safety
9
During Operation Safety
9
Rollover Protection System (ROPS) Safety
10
Slope Safety
10
After Operation Safety
11
Maintenance Safety
11
Engine Safety
12
Electrical System Safety
12
Cooling System Safety
12
Hydraulic System Safety
12
Blade Safety
13
Storage Safety
13
Safety and Instructional Decals
14
Chapter 3: Setup
21
Preparing the Machine
21
Adjusting the Control-Arm Position
21
Installing the Cutting Units
22
Preparing the Machine
22
Preparing the Cutting Units
22
Positioning the Turf Compensating Spring and Installing the Hose Guide
23
Installing the Hose Guide
25
Positioning the Turf Compensating Spring
26
Installing the Kickstand
28
Installing the Front Cutting Units to the Lift Arms
28
Installing the Rear Cutting Units to the Lift Arms
29
Locking the Cutting-Unit Pivot for Cutting Grass on a Hill Side
30
Installing the Cutting Unit Lift-Arm Chains
30
Installing the Reel Motors
30
Using the Cutting-Unit Kickstand
32
Installing the CE Hood Lock
33
Installing the CE Decals
34
Applying the CE Decal
34
Applying the Year of Production Decal
34
Applying the CE Warning Decal
35
Chapter 4: Product Overview
36
Controls
36
Automotive-Style Throttle
37
Key Switch
37
Lower Mow/Raise Control Lever
37
Parking-Brake Switch
38
Cruise-Control Switch
38
Power-Takeoff (PTO) Switch
39
Headlight Switch
39
Infocenter Display
39
Tilt-Steering Pedal
40
Traction Pedal
40
Hydraulic-Filter-Restriction Indicator
41
Power Point
41
Seat Controls
42
Backlap Levers
43
Specifications
44
Attachments/Accessories
44
Chapter 5: Operation
45
Before Operation
45
Performing Daily Maintenance
45
Fuel
45
Checking the Interlock Switches
47
Overview of the Infocenter Display
49
Checking the Hydrostatic Braking Distance
58
Overview of Reverse Speeds
58
Overview of Displayed Traction Speeds
58
During Operation
59
Overview of the Machine Operating Characteristics
59
Machine Operation
59
Overview of the Traction Pedal
60
Overview of the Virtual Pedal Stop (VPS) Feature
60
Cruise Control
61
Overview of the Acceleration Mode
62
Overview of the Warm-Up Mode
63
Overview of Toro Smart Power
63
Starting the Engine
63
Shutting off the Engine
63
Adjusting the Turf-Compensation Spring
64
Cutting Grass with the Machine
64
Understanding the Diesel-Particulate Filter and Regeneration
65
Adjusting the Lift-Arm Counterbalance
72
Adjusting the Lift-Arm Turnaround Position
73
Setting the Reel Speed
74
Overview of the Indicator Lights
75
Operating Tips
76
After Operation
78
Tie-Down Point Locations
78
Hauling the Machine
79
Pushing or Towing the Machine
79
Chapter 6: Maintenance
81
Recommended Maintenance Schedule
81
Daily Maintenance Checklist
84
Pre-Maintenance Procedures
85
Preparing for Maintenance
85
Opening the Hood
85
Closing the Hood
86
Opening the Screen
86
Closing the Screen
87
Tilting the Seat
87
Lowering the Seat
87
Jacking Point Locations
88
Lubrication
88
Greasing the Bearings and Bushings
88
Grease Fitting Locations
89
Engine Maintenance
91
Checking the Air Cleaner
91
Resetting the Air Filter Service Indicator
91
Servicing the Air Cleaner
92
Engine Oil Specifications
93
Checking the Engine Oil Level
94
Changing the Engine Oil and Filter
95
Fuel System Maintenance
96
Fuel Storage
96
Servicing the Fuel/Water Separator
97
Servicing the Fuel Filter
99
Draining the Fuel Tank
99
Inspecting the Fuel Lines and Connections
99
Servicing the Diesel-Oxidation Catalyst (DOC) and the Soot Filter
99
Cleaning the Fuel-Pickup Tube Screen
100
Priming the Fuel System
102
Electrical System Maintenance
103
Inspecting the Electrical Cables
103
Disconnecting the Battery
103
Connecting the Battery
104
Charging the Battery
104
Servicing the Battery
105
Replacing a 12 V Fuse-Block Fuse
105
Replacing the TEC Fuse
105
Replacing the ECU Fuse
106
Drive System Maintenance
107
Checking the Tire Pressure
107
Torquing the Wheel Nuts
107
Checking the Rear-Wheel Alignment
107
Adjusting the Rear Wheel Toe-In
108
Cooling System Maintenance
109
Coolant Specifications
109
Checking the Coolant Level
110
Inspecting the Cooling System Hoses
111
Cleaning the Engine Cooling System
112
Belt Maintenance
113
Tensioning the Alternator Belt
113
Hydraulic System Maintenance
113
Hydraulic Fluid Specifications
113
Checking the Hydraulic-Fluid Level
114
Inspecting the Hydraulic Lines and Hoses
115
Replacing the Hydraulic Filters
115
Changing the Hydraulic Fluid
117
Cutting Unit Maintenance
118
Checking the Reel-To-Bedknife Contact
118
Backlapping the Cutting Units
119
Chassis Maintenance
121
Inspecting the Seat Belt
121
Cleaning
122
Washing the Machine
122
Chapter 7: Storage
123
Storing the Machine
123
Storing the Battery
123
The Toro Warranty
125
California Proposition 65 Warning Information
126
Other manuals for Toro 03606A
Service Manual
662 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Toro 03606A and is the answer not in the manual?
Ask a question
Toro 03606A Specifications
General
Brand
Toro
Model
03606A
Category
Lawn Mower
Language
English
Related product manuals
Toro 03602
28 pages
Toro 03660
60 pages
Toro 03661
60 pages
Toro 03672
128 pages
Toro 03678
68 pages
Toro 03691
68 pages
Toro 03681
68 pages
Toro 03675
60 pages
Toro 03676
112 pages
Toro 03781TE
144 pages
Toro 03410TE
36 pages
Toro 03550 Reelmaster 5500-D
52 pages
