5.Removetheangelocknutsecuringthedriven
geartotheendofthegroomershaft(Figure30).
Removethegear.
1
2
3
5
G018183
4
g018183

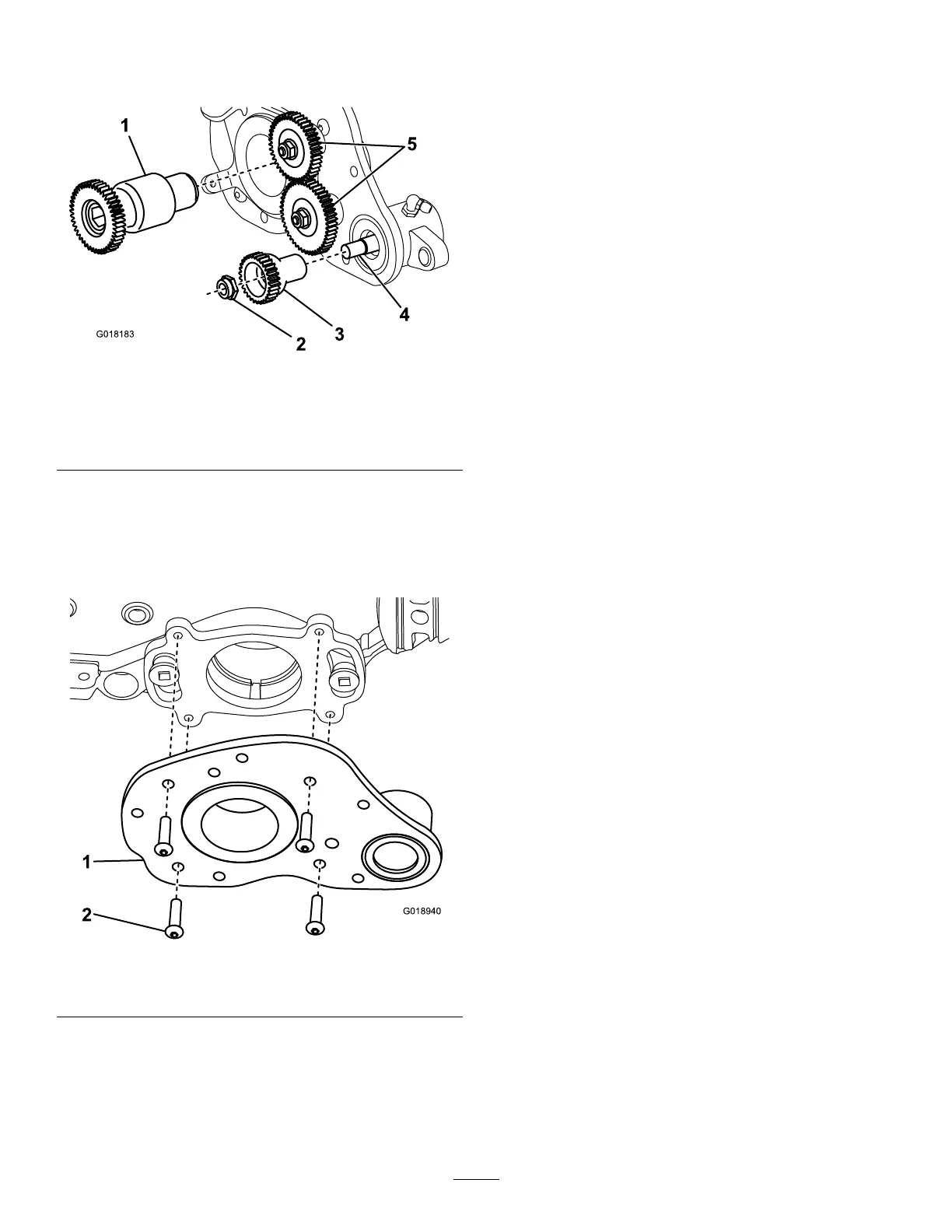

Figure30
1.Drivegear
4.Groomershaft
2.Drivengearlocknut5.Idlergears
3.Drivengear
6.Removethegroomerdrivegearfromthereel
shaft(Figure30).
7.Removethe4screwssecuringthegroomer
driveassemblytotherearmountingplate
(Figure31).
G018940
1
2
g018940
Figure31
1.Groomerdriveassembly2.Screw
8.Removethegroomershaft.
9.Torquethegroomerdrivegearto170N·m(125
ft-lb).
Note:Theuseofanimpactgunisnotenough
toensureproperinstallation.Failingtoproperly
torquethedrivepulleycanresultintheassembly
unscrewingitselfduringoperation.
15
