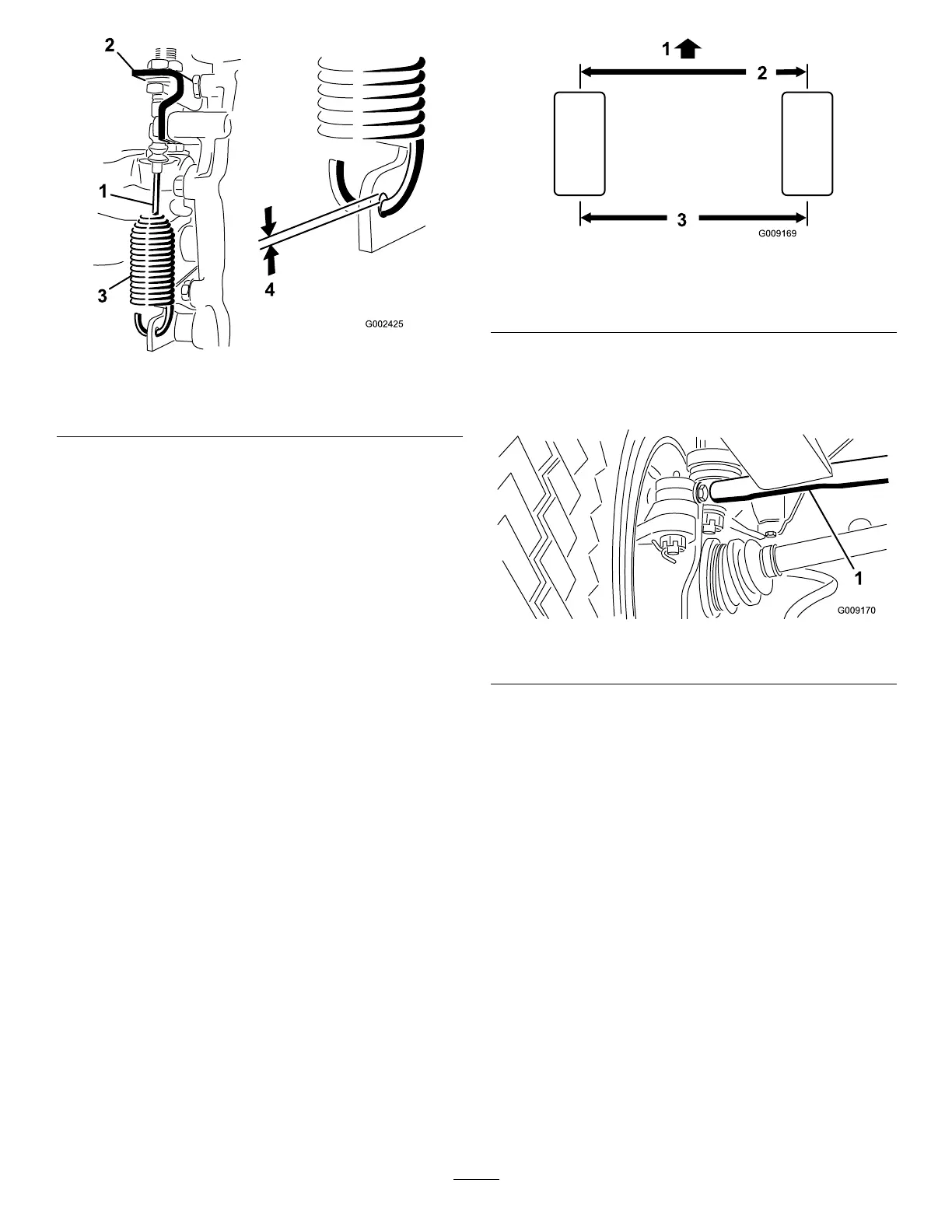

Figure56
1.Differentiallockcable3.Spring
2.Transaxlebracket4..035±.025inchgap
3.Adjustjamnutstoobtain.035±.025inchgap
betweenspringhookandO.D.ofholeintransaxle
lever.
4.Tightenjamnutsafteradjustmenthasbeenattained.
InspectTires
ServiceInterval:Every100hours
Operatingaccidents,suchashittingcurbs,candamagea
tireorrimandalsodisruptwheelalignment,soinspect
tireconditionafteranaccident.
FrontWheelToe
ServiceInterval:Every400hours/Yearly(whichever
comesrst)
1.Measurecenter–to–centerdistance(ataxleheight)at
frontandrearofsteeringtires.Themeasurement
mustbe.12.12“greateratthefrontofthetirethan
attherear.
Figure57
1.Frontofvehicle3.Centertocenterdistance
2..12±.12inchgreaterthan
rearoftire
2.Adjustthecenter–to–centerdistanceasfollows:
•Ontherightfrontwheel,loosenthejamnutsat
bothendsofthetierod(Figure58).
Figure58
1.Tierod
•Ontheleftfrontwheel,loosenthejamnutsat
bothendsoftheturnbuckle(Figure59).
•Rotatethetierodandturnbuckleevenlytomove
thefrontofthetireinwardoroutwardtoachieve
thecentertocenterdistancesfromfronttoback.
•Tightentierodandturnbucklejamnutswhen
theadjustmentiscorrect.
•Checktomakesurethetiresturnanequal
amounttotherightandtotheleft.Ifthetiresdo
notturnequally,refertotheWorkmanService
Manualfortheadjustmentprocedure
