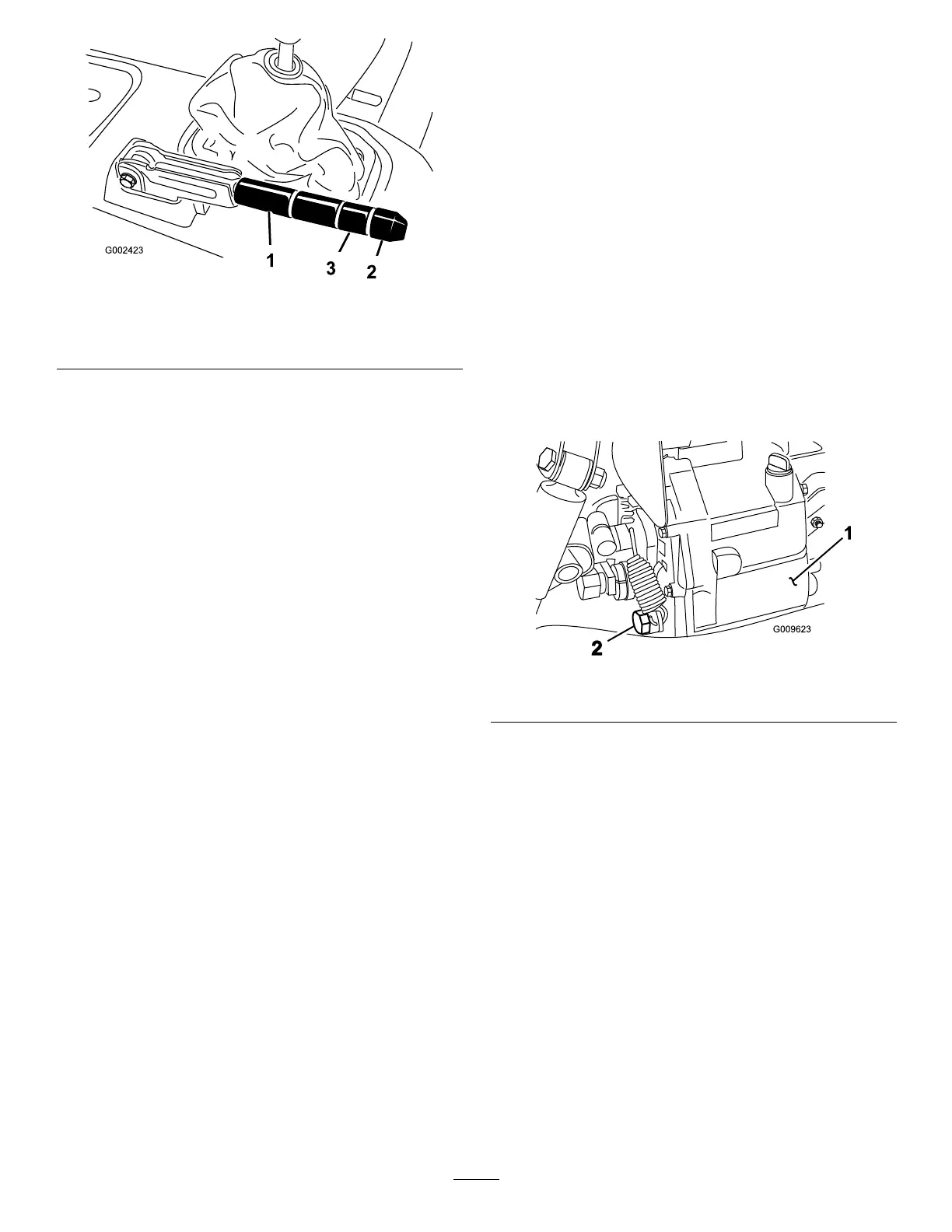

Figure75
1.Parkingbrakelever
3.Setscrew
2.Knob
4.Tightensetscrewafteradjustmenthasbeenattained.
5.Installrubbergripontoparkingbrakelever.
HydraulicSystem
Maintenance
ChangingTransaxle/
HydraulicFluid
ServiceInterval:Aftertherst10hours
Every800hours
1.Positionthevehicleonalevelsurface,stopengine,
engagetheparkingbrakeandremovekeyfrom
ignitionswitch.
2.Removedrainplugfromsideofreservoirandlet
hydraulicuidowintodrainpan.Reinstalland
tightenplugwhenhydraulicuidstopsdraining.
Note:Cleanthehydraulicstrainer.Referto
CleaningHydraulicStrainer.
Figure76
1.Hydraulicreservoir2.Drainplug
3.Fillreservoirwithapproximately7.5qt.ofDexron
IIlATF .RefertoCheckingHydraulicFluid.
4.Startengineandoperatetollhydraulicsystem.
Recheckoillevelandreplenish,ifrequired.
Important:Useonlyhydraulicuidsspecied.
Otheruidscouldcausesystemdamage.
ReplacingHydraulicFilter
ServiceInterval:Aftertherst10hours
Every800hours
Important:Useofanyotherltermayvoidthe
warrantyonsomecomponents.
1.Positionvehicleonalevelsurface,stopengine,
engagetheparkingbrakeandremovekeyfrom
ignitionswitch.
2.Cleanareaaroundltermountingarea.Placedrain
panunderlterandremovelter.
