Toro 30446 - Engine Cooling Fan Switch; Hour Meter

EngineCoolingFanSwitch
Themachineisequippedwithahydraulicallydriven
autoreversingenginecoolingfan.Thefanswitch
(Figure5)hastwopositionsR(manualreverse)and
Auto(normal).RefertoEngineCoolingFanOperation
intheOperationSectionofmanual.
G01 1547
1
2
3

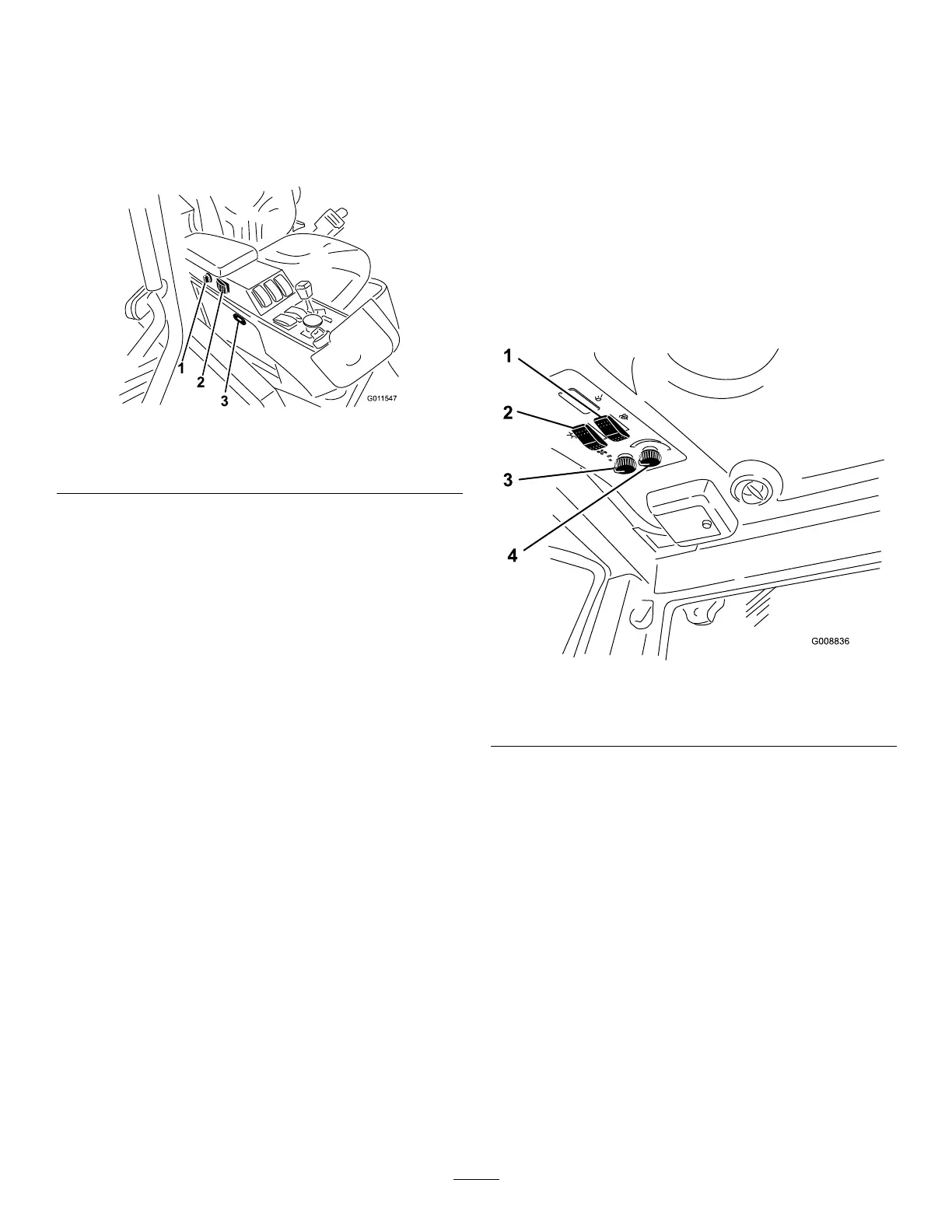

Figure5
1.Powerpoint3.Hourmeter
2.Enginecoolingfanswitch
HourMeter
Thehourmeter(Figure5)showsthetotalhoursthatthe
machinehasbeenoperated.
PowerPoint
Thepowerpoint(Figure5)isusedtopoweroptional
electricalaccessories.
AudibleAlarm
Towarnbystanders,analarmwillsoundifthecutting
decksareloweredwiththeengineoff.Thealarmwill
quitsoundingoncethedecklowerswitchisreleased.
Also,thealarmwillsoundiftheenginecoolant
temperaturereachesaset-pointthatcutsoutthePTO
operation.Thealarmwillcontinuetosounduntilthe
coolanttemperaturedropsbelowtheset-pointorthe
PTOswitchisdisengaged.
CabControls
Model30446only
WindShieldWiperSwitch
Pressfrontofswitchtoactivatethewindshieldwipers
(Figure6)andrearofswitchtoturnoffthewipers.
AirConditioningSwitch
Pressfrontofswitchtoactivatetheairconditioning
(Figure6)andrearofswitchtoturnofftheair
conditioning.
FanControl
Rotatethefancontrolknobtoregulatethespeedofthe
fan(Figure6).
TemperatureControl
Rotatethetemperaturecontrolknobtoregulatetheair
temperatureinthecab(Figure6).
Figure6
1.Windshieldwiperswitch3.Fancontrol
2.Airconditioningswitch4.Temperaturecontrol
WindShieldLatch
Liftuponlatchestoopenthewindshield(Figure7).
Pressinonlatchtolockwindshieldinopenposition.
Pulloutanddownonlatchtocloseandsecurewind
shield.
17
