Note:ThedeckswillnotlowerwhileintheHIspeed
rangeandtheywillnotraiseorloweriftheoperatoris
outoftheseatwhentheengineisrunning.
ThrottleControl
Movethecontrol(Figure10)forwardtoincreasethe
enginespeedandrearwardtodecreasethespeed.
LightSwitch
Presstheloweredgeoftheswitch(Figure10)toturnon
thelights.Presstheupperedgeoftheswitchtoturn
offthelights.
GlowPlugIndicatorLight
Whenlit,theglowplugindicatorlight(Figure10)
indicatesthattheglowplugsareon.
EngineCoolantTemperatureWarning
Light
Thelight(Figure10)illuminatesandthecuttingunits
shutdown(PTOdisengages).Ifthetemperature
continuestorisetheenginewillshutdown.
PowerPoint
Thepowerpoint(Figure11)isusedtopoweroptional
12voltelectricalaccessories.

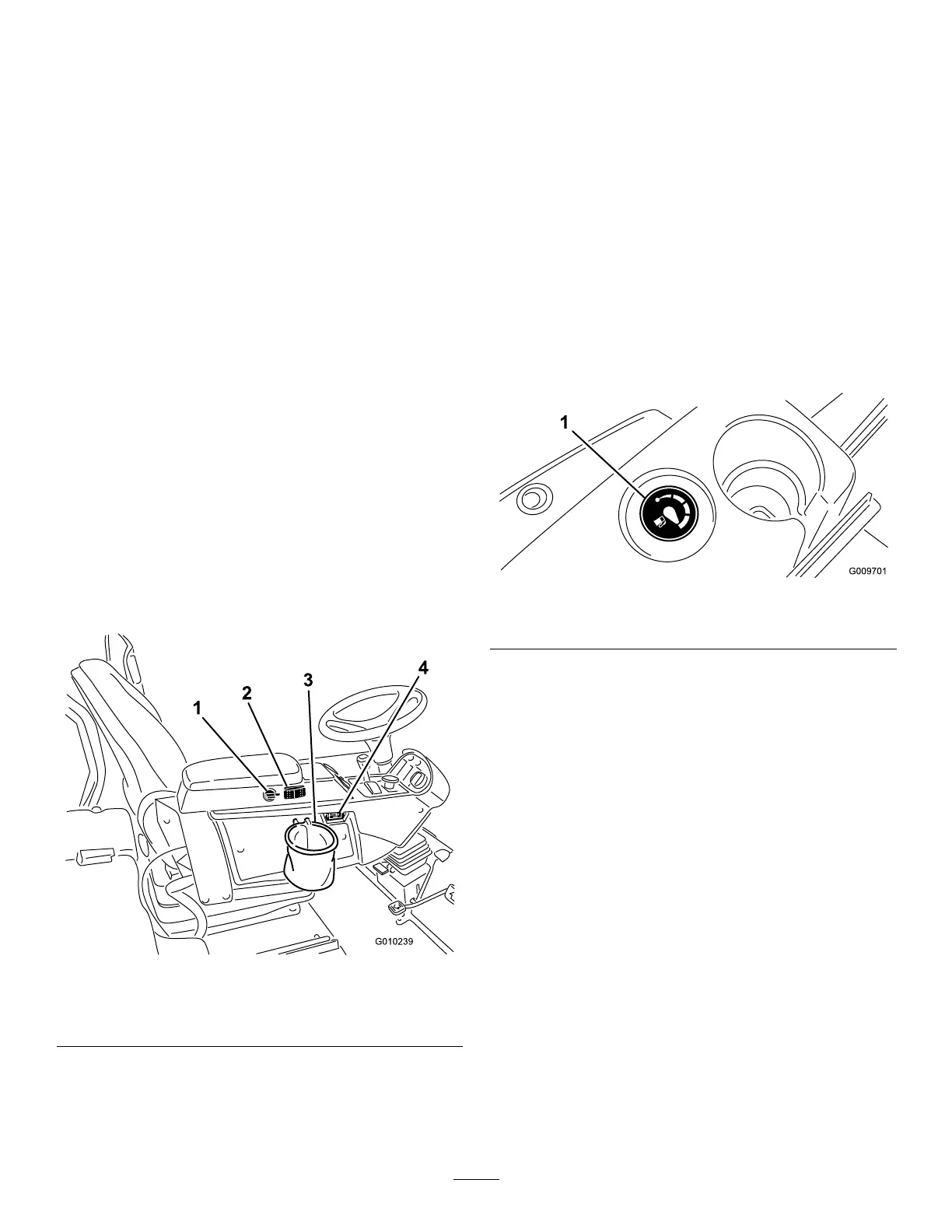

Figure11
1.Powerpoint3.Bagholder
2.Enginecoolingfanswitch
4.Hourmeter
EngineCoolingFanSwitch
Themachineisequippedwithahydraulicallydriven
autoreversingenginecoolingfan.Thefanswitch
(Figure11)hastwopositionsR(manualreverse)and
Auto(normal).RefertoEngineCoolingFanOperation
intheOperationSectionofmanual.
BagHolder
Usethebagholder(Figure11)forstorage.
HourMeter
Thehourmeter(Figure11)showsthetotalhoursthat
themachinehasbeenoperated.
FuelGauge
Thefuelgauge(Figure12)indicatestheleveloffuelin
thetank.
Figure12
1.Fuelgauge
SeatAdjustments
ForeandAftAdjustingLever
Pulloutonthelevertoslidetheseatforeoraft
(Figure13).
SeatArmRestAdjustingKnob
Rotatetheknobtoadjusttheseatarmrestangle
(Figure13).
SeatBackAdjustingLever
Movethelevertoadjusttheseatbackangle(Figure13).
Weightgauge
Indicateswhentheseatisadjustedtotheweightofthe
operator(
Figure13).Heightadjustmentismadeby
positioningthesuspensionwithintherangeofthegreen
region.
