RemovingtheHood
1.Releasehoodlatches(Figure21)andpivotopenthe
hood.

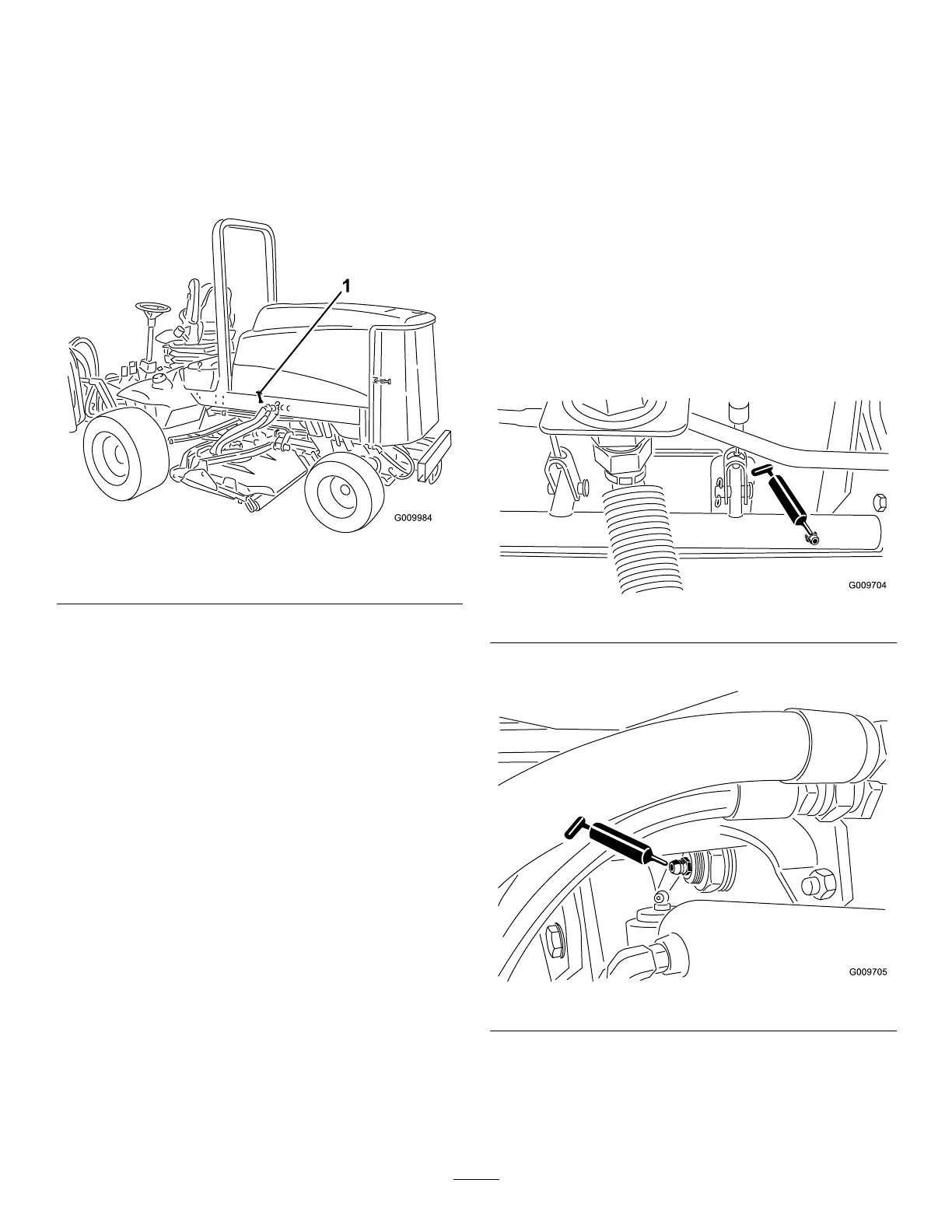

Figure21
1.Hoodlatch(2)
2.Removethecotterpinssecuringtherearhood
bracketstotheframepinsandliftoffthehood.
Lubrication
GreasingtheBearingsand
Bushings
ServiceInterval:Every50hours
Themachinehasgreasettingsthatmustbelubricated
regularlywithNo.2GeneralPurposeLithiumBase
Grease.Ifthemachineisoperatedundernormal
conditions,lubricateallbearingsandbushingsafter
every50hoursofoperationorimmediatelyafterevery
washing.
Thegreasettinglocationsandquantitiesareasfollows:
•Brakeshaftpivotbearings(5)(
Figure22)
Figure22
•Rearaxlepivotbushings(2)(Figure23)
Figure23
