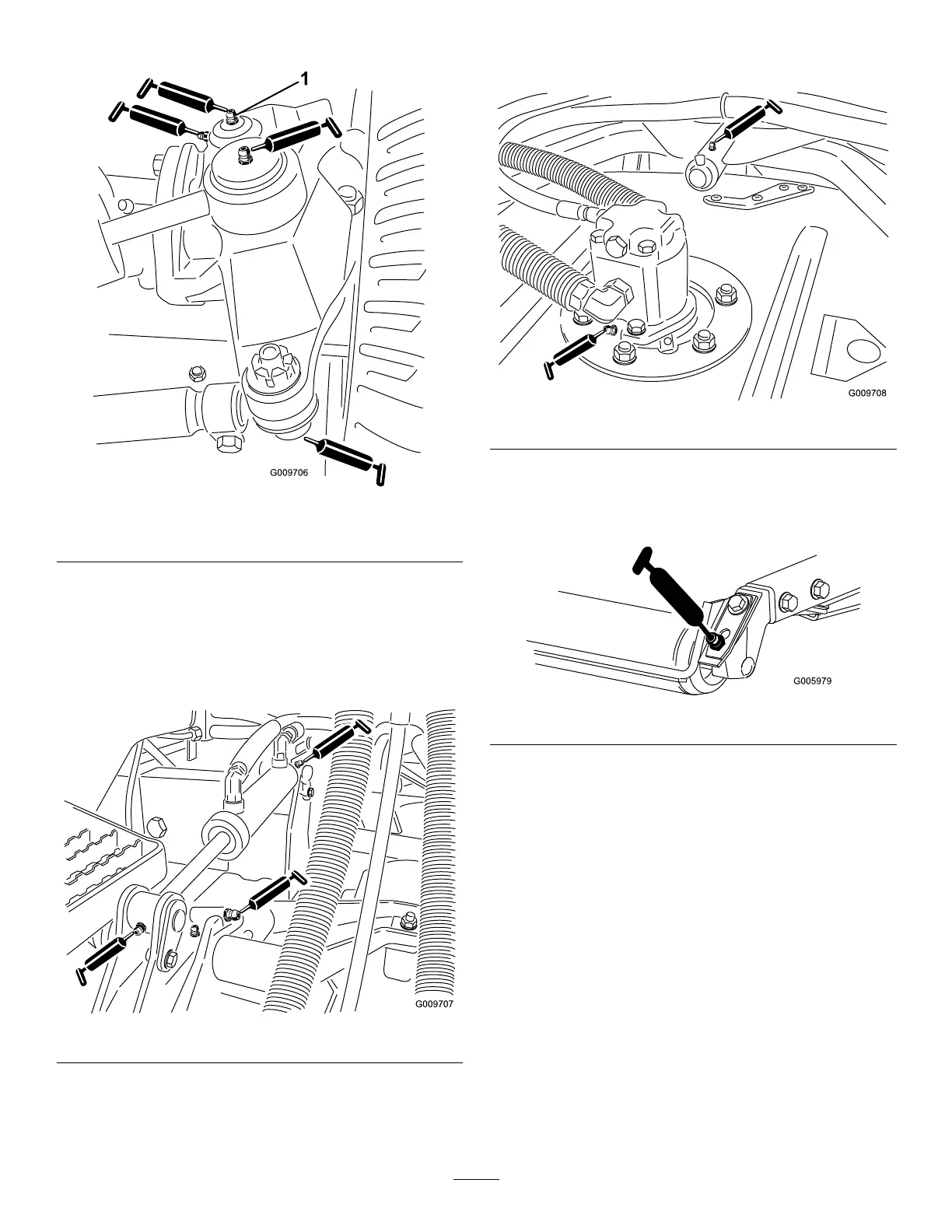

•Steeringcylinderballjoints(2)(Figure24)
Figure24
1.T opttingonkingpin
•Tierodballjoints(2)(Figure24)
•Kingpinbushings(2)(
Figure24).Thetoptting
onthekingpinshouldonlybelubricated
annually(2pumps).
•Liftarmbushings(1perdeck)(Figure25)
Figure25
•Liftcylinderbushings(2perdeck)(Figure25)
•Cuttingunitspindleshaftbearings(1percutting
unit)(Figure26)
Figure26
•Cuttingunitcarrierarmbushings(1percuttingunit)
(Figure26)
•Rearrollerbearings(2percuttingunit)(Figure27)
Figure27
Important:Makesurethegreasegroovein
eachrollermountalignswiththegreaseholein
eachendoftherollershaft.Tohelpalignthe
grooveandhole,thereisalsoanalignmentmark
ononeendoftherollershaft.
