LoweringtheRollBar
Important:Lowertherollbaronlywhen
necessary.
Important:Ensurethattheseatissecuredwith
theseatlatch.
g201853

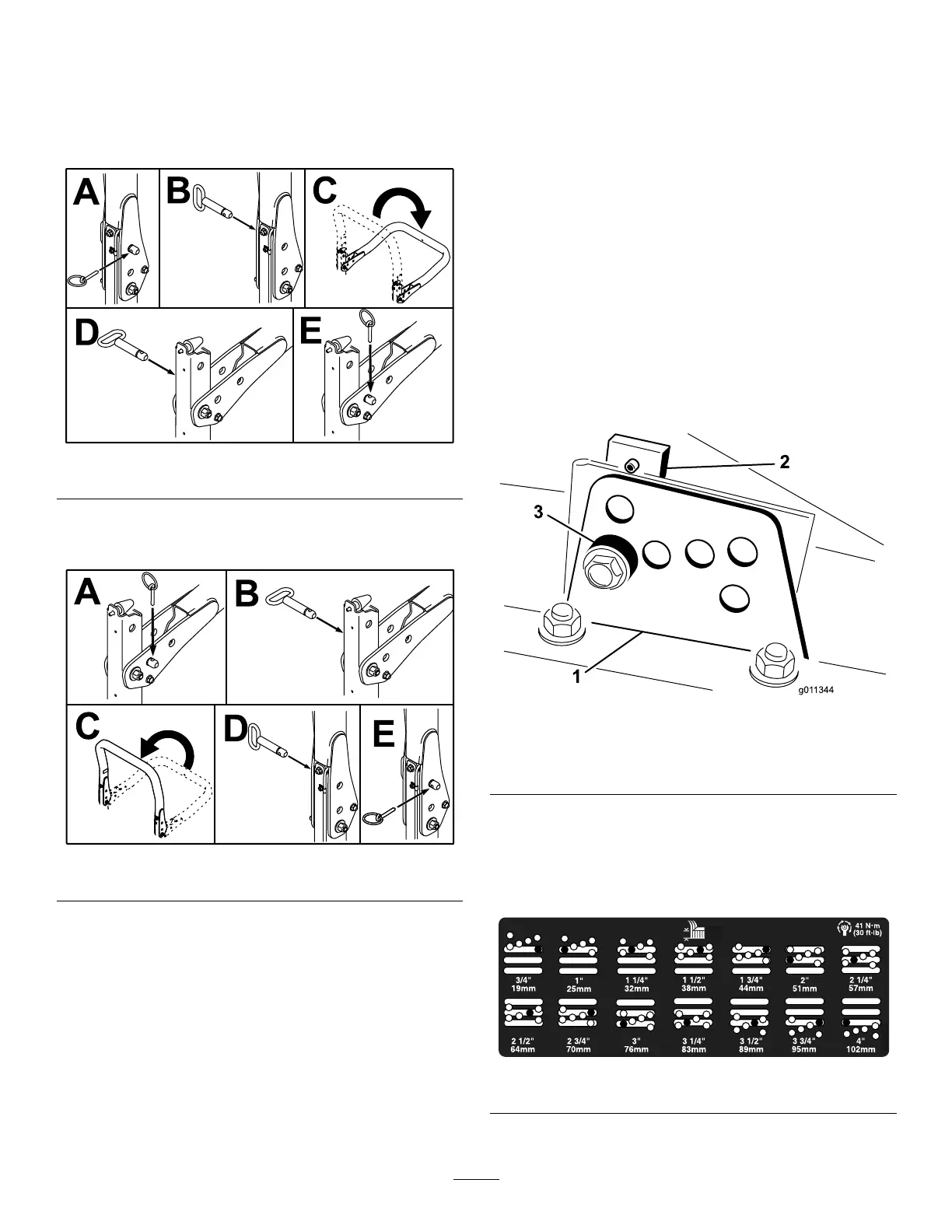

Figure19
RaisingtheRollBar
g201854
Figure20
AdjustingtheHeightofCut
Important:Thecuttingunitsoftencut
approximately6mm(1/4inch)lowerthanareel
cuttingunitwiththesamebenchsetting.It
maybenecessarytosetthecutting-unitbench
measurementat6mm(1/4inch)abovethatofreel
cuttingunitscuttinginthesamearea.
Important:Accesstotherearcuttingunitsis
greatlyimprovedbyremovingthecuttingunit
fromthemachine.
1.Parkthemachineonalevelsurface,engage
theparkingbrake,lowerthecuttingunittothe
ground,shutofftheengine,andremovethekey.
2.Loosentheboltsecuringeachheight-of-cut
brackettotheheight-of-cutplate(frontandeach
side)asshowninFigure21.
3.Beginningwithfrontadjustment,removethe
bolt.
g011344
Figure21
1.Height-of-cutbracket3.Spacer
2.Height-of-cutplate
4.Whilesupportingthechamber,removethe
spacer(Figure21).
5.Movethechambertothedesiredheightof
cutandinstallaspacerintothedesignated
height-of-cutholeandslot(Figure22).
g201855
Figure22
6.Positionthetappedplatein-linewiththespacer.
