Lubrication
GreasingtheBearingsand
Bushings
ServiceInterval:Every50hours(alsoafterevery
washing).
Greasespecication:No.2lithiumgrease
Thegreasettinglocationsandquantitiesareas
follows:

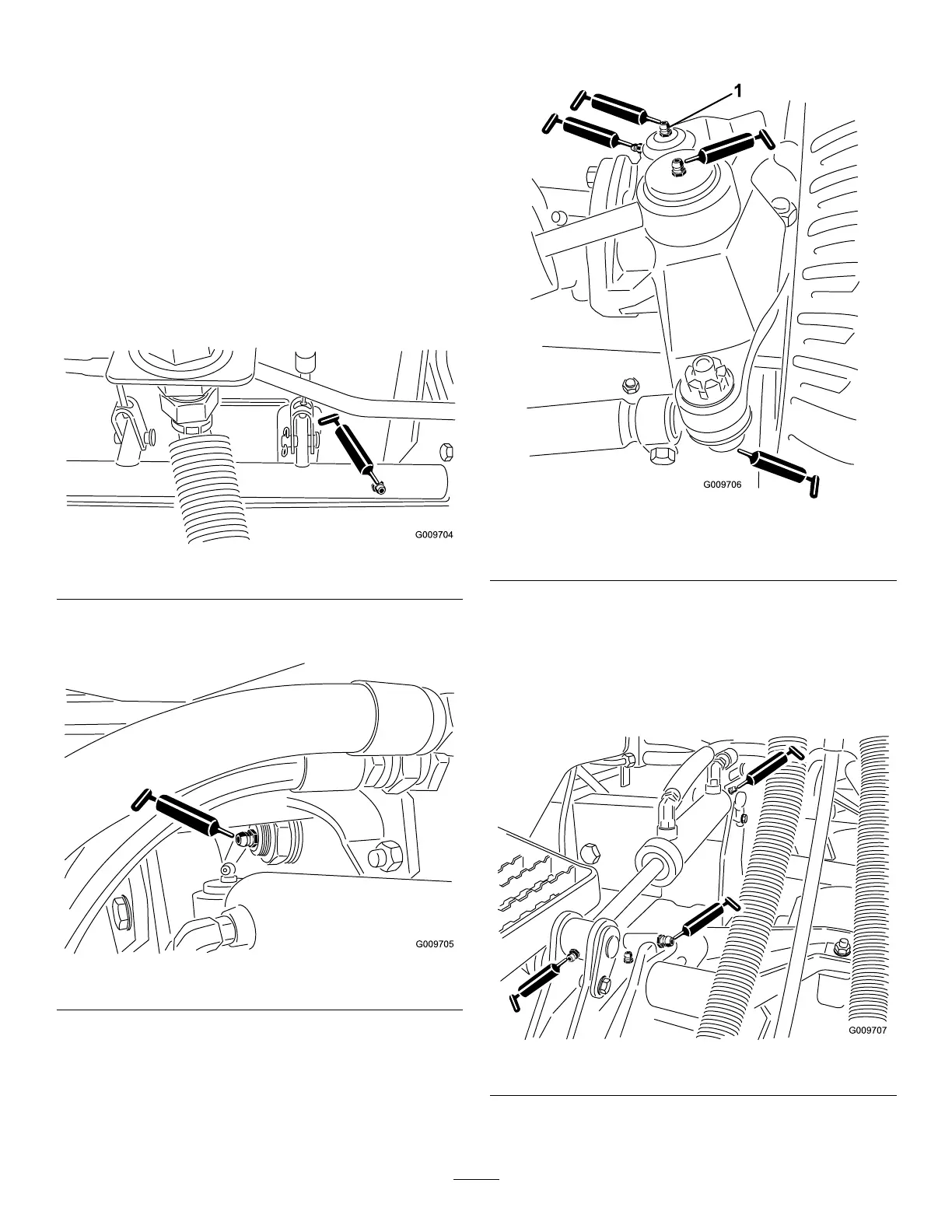

•Brake-shaftpivotbearings(5)asshowninFigure
36
g009704
Figure36
•Rear-axle-pivotbushings(2)asshowninFigure
37)
g009705
Figure37
•Steering-cylinderballjoints(2)asshowninFigure
38
g009706
Figure38
1.Topttingonkingpin
•Tie-rodballjoints(2)asshowninFigure38
•Kingpinbushings(2)asshowninFigure38
Important:Lubricatethetopttingonthe
kingpinnomorethanannually(2pumps).
•Lift-armbushings(1percuttingunit)asshownin
Figure39
g009707
Figure39
•Lift-cylinderbushings(2percuttingunit)asshown
inFigure39
