BrakeMaintenance
AdjustingtheService
Brakes
Adjusttheservicebrakeswhenthereismorethan
25mm(1inch)offreetravelofthebrakepedal,or
whenthebrakesdonotworkeffectively.Freetravelis
thedistancethebrakepedalmovesbeforeyoufeel
brakingresistance.
1.Releasethelockinglatchfromthebrakepedals
sothatbothpedalsworkindependentlyofeach
other.
2.Toreducefreetravelofthebrakepedals,tighten
thebrakesasfollows:
A.Loosenthefrontnutonthethreadedendof

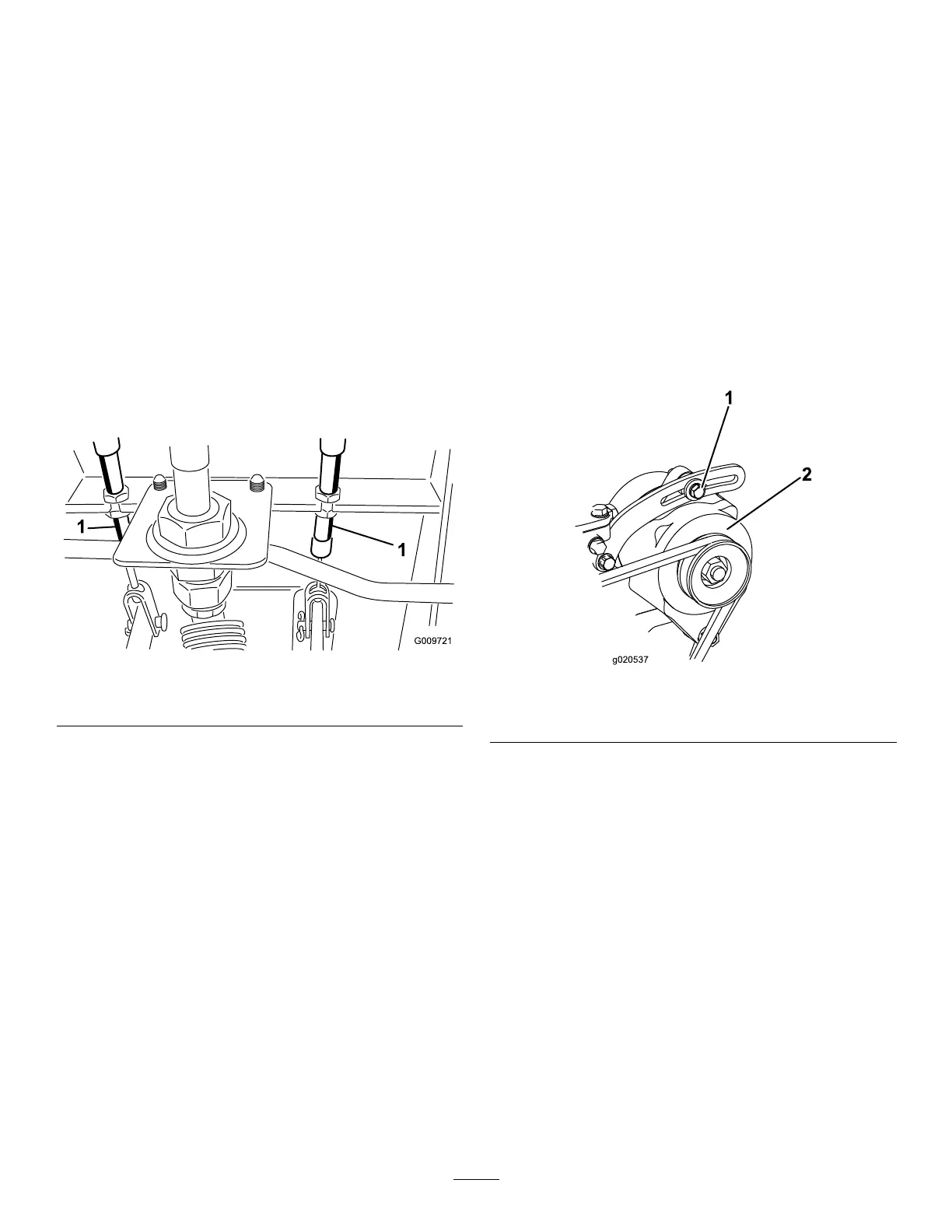

thebrakecable(Figure74).
g009721
Figure74
1.Brakecable
B.Tightentherearnuttomovethecable
rearwarduntilthebrakepedalshave13to
25mm(1/2to1inch)offreetravel.
C.Tightenthefrontnutsafterthebrakesare
adjustedcorrectly.
BeltMaintenance
ServicingtheAlternator
Belt
ServiceInterval:Every100hours
Propertensionofthebeltallows10mm(3/8inch)of
deectionwhenaforceof4.5kg(10lb)isappliedon
thebeltmidwaybetweenthepulleys.
Ifthedeectionisnot10mm(3/8inch),loosenthe
alternator-mountingbolts(Figure75).
Note:Increaseordecreasethealternator-belt
tensionandtightenthebolts.Checkthedeectionof
thebeltagaintoensurethatthetensioniscorrect.
g020537
Figure75
1.Mountingbolt2.Alternator
59
