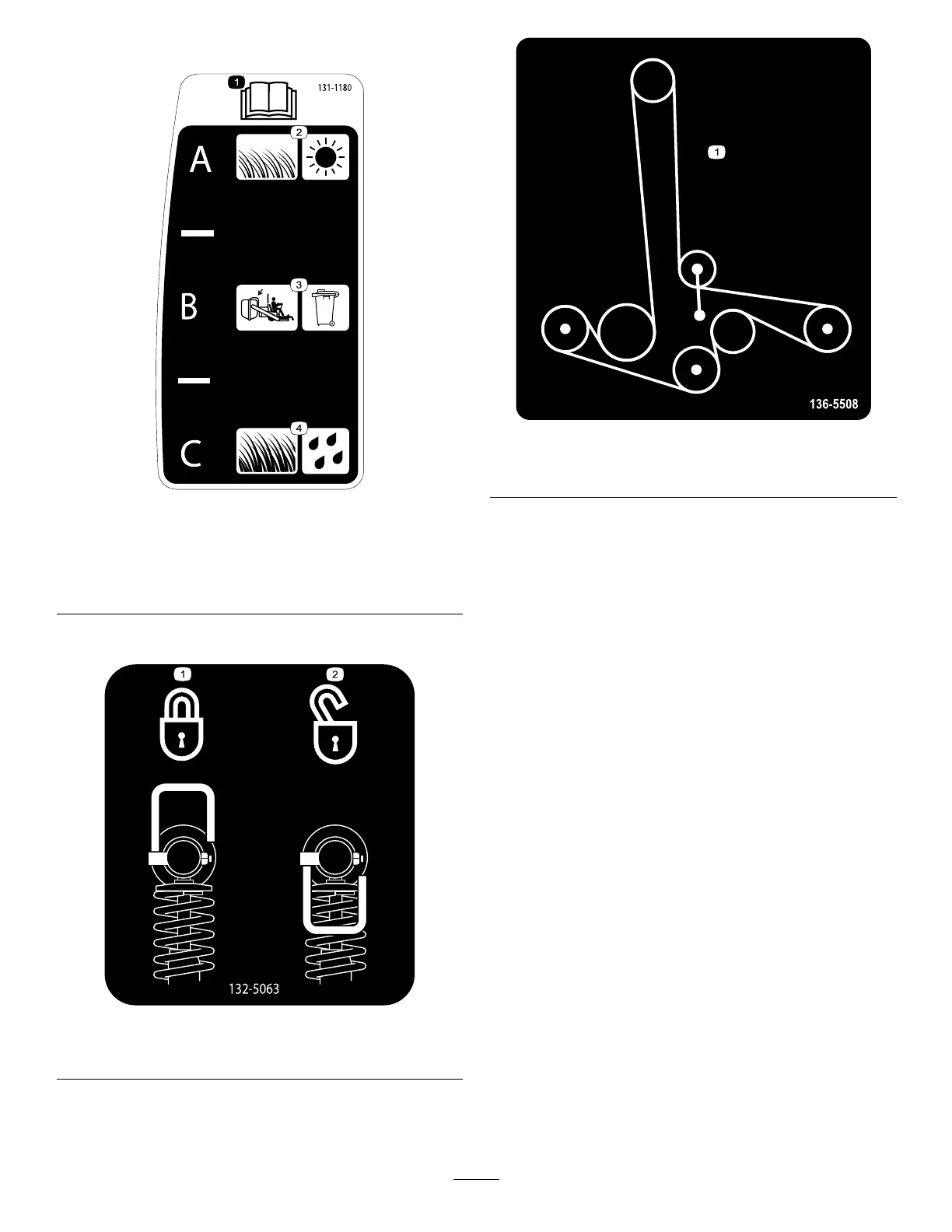

MachineswithSideDischargeOnly

decal131-1180

131-1180

1.ReadtheOperator's

Manual.

3.Baggingsetting

2.Short,lightgrass;dry

conditions

4.Tall,densegrass;wet

conditions

MachineswithMyRide™Only

decal132-5063

132-5063

1.Camlock2.Camunlock

decal136-5508

136-5508

1.Beltrouting
