g009038

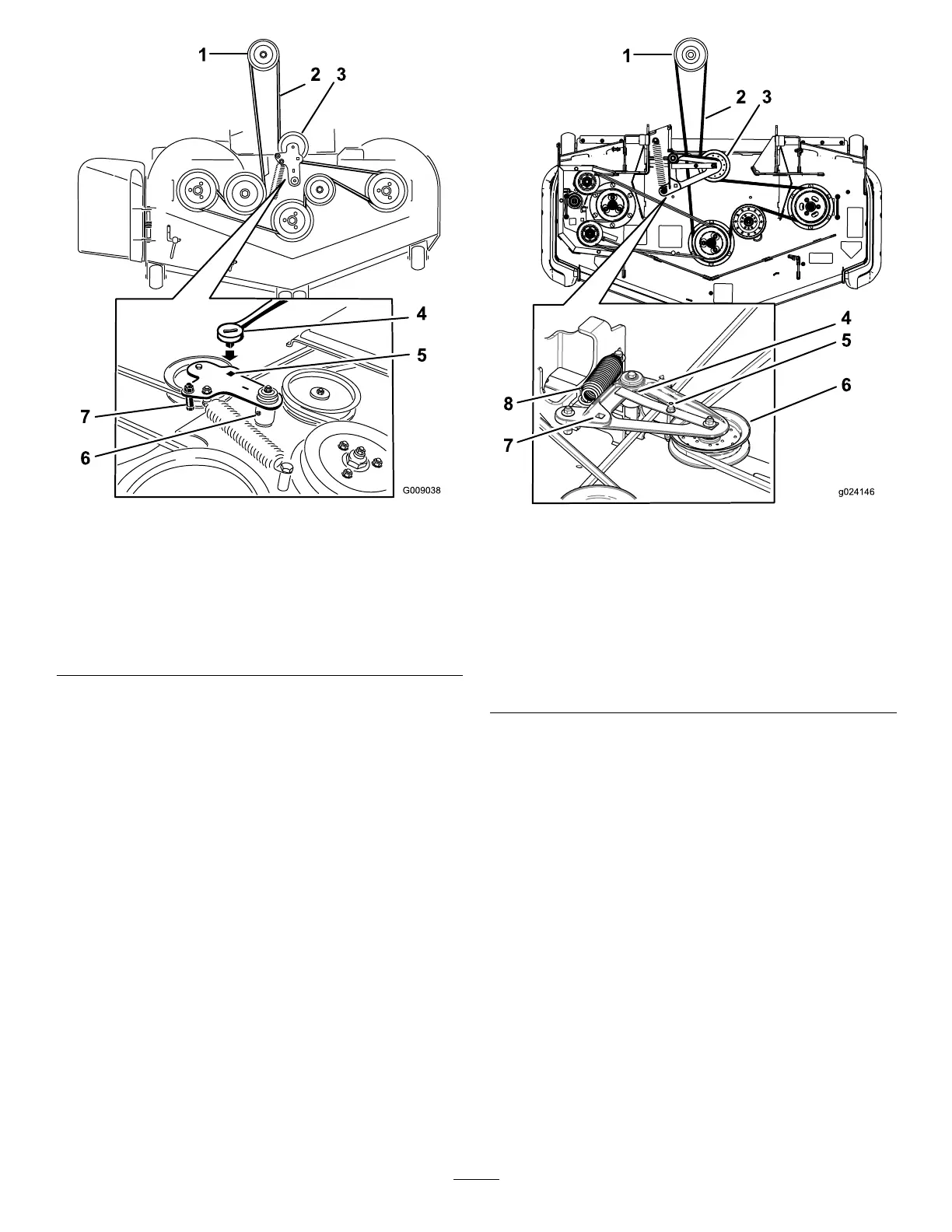

Figure118
Side-DischargeMachines
1.Clutchpulley5.Squareholeintheidler
armfortheratchet
2.Mowerbelt
6.Idlergreasetting
3.Spring-loadedidlerpulley
7.Beltguide
4.Ratchet
g024146
Figure119
Rear-DischargeMachines
1.Clutchpulley
5.Beltguide
2.Mowerbelt
6.Spring-loadedidlerpulley
3.Spring-loadedidlerpulley7.Squareholeintheidler
armfortheratchet
4.Ensurethatthebelt-guide
tabhitsagainstthepivot
hub.
8.Spring
7.Removeandretainthehardwareonbothsides
ofthedeckasshowninFigure120.
