Toro 72949 - Servicing the Fuses

InstallingtheBattery
Note:Positionthebatteryinthetraywiththeterminal
postsoppositefromthehydraulictank(Figure56).

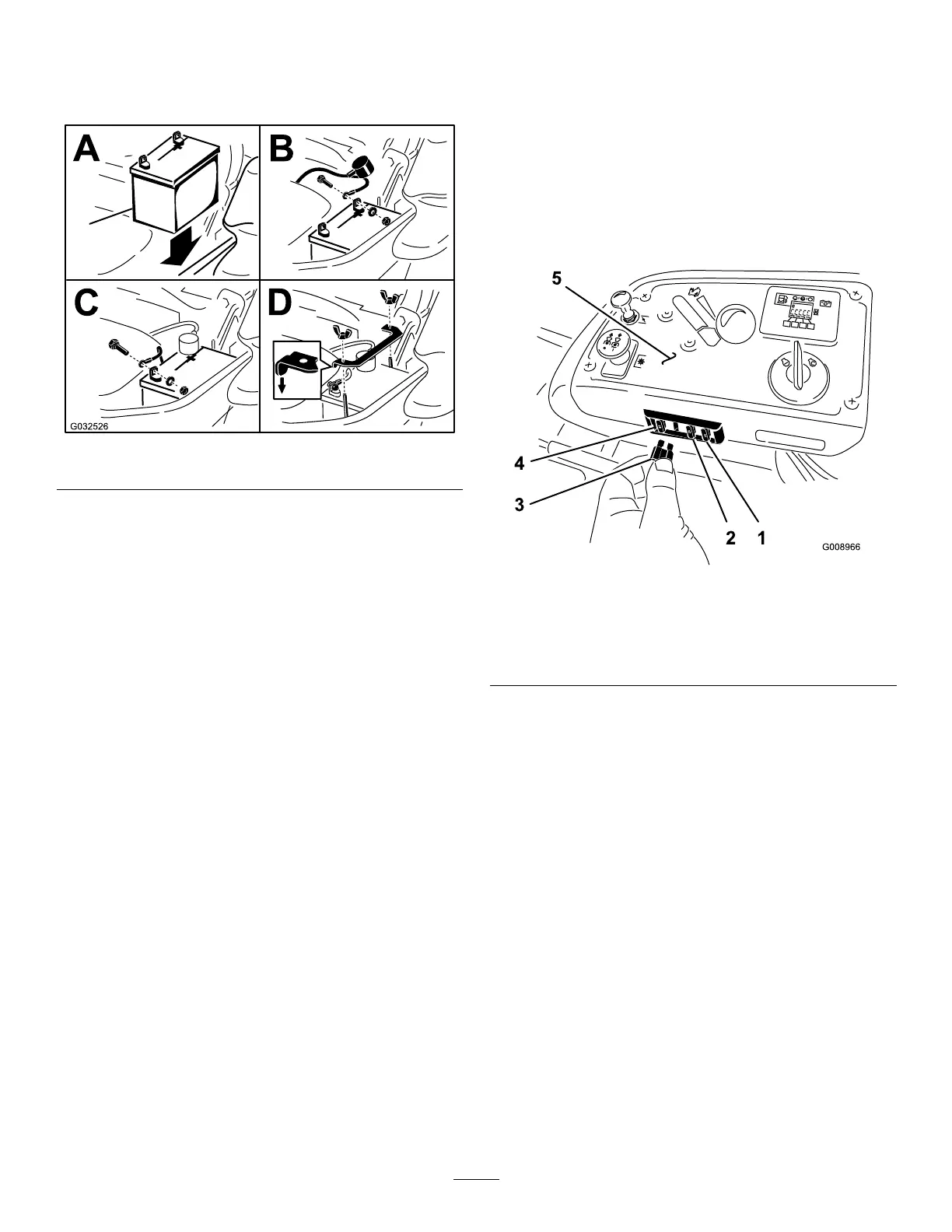

g032526
Figure56
ServicingtheFuses
Theelectricalsystemisprotectedbyfuses.Itrequires
nomaintenance,however,ifafuseblowscheckthe
component/circuitforamalfunctionorshort.
Thefusesarelocatedontheconsoletotherightof
theseat(Figure57).
1.Toreplacethefuses,pulloutonthefuseto
removeit.
2.Installanewfuse(Figure57).
g008966
Figure57
1.Optionalaccessory(15A)4.Main(25A)
2.Charge(25A)
5.Console
3.PTO(10A)
