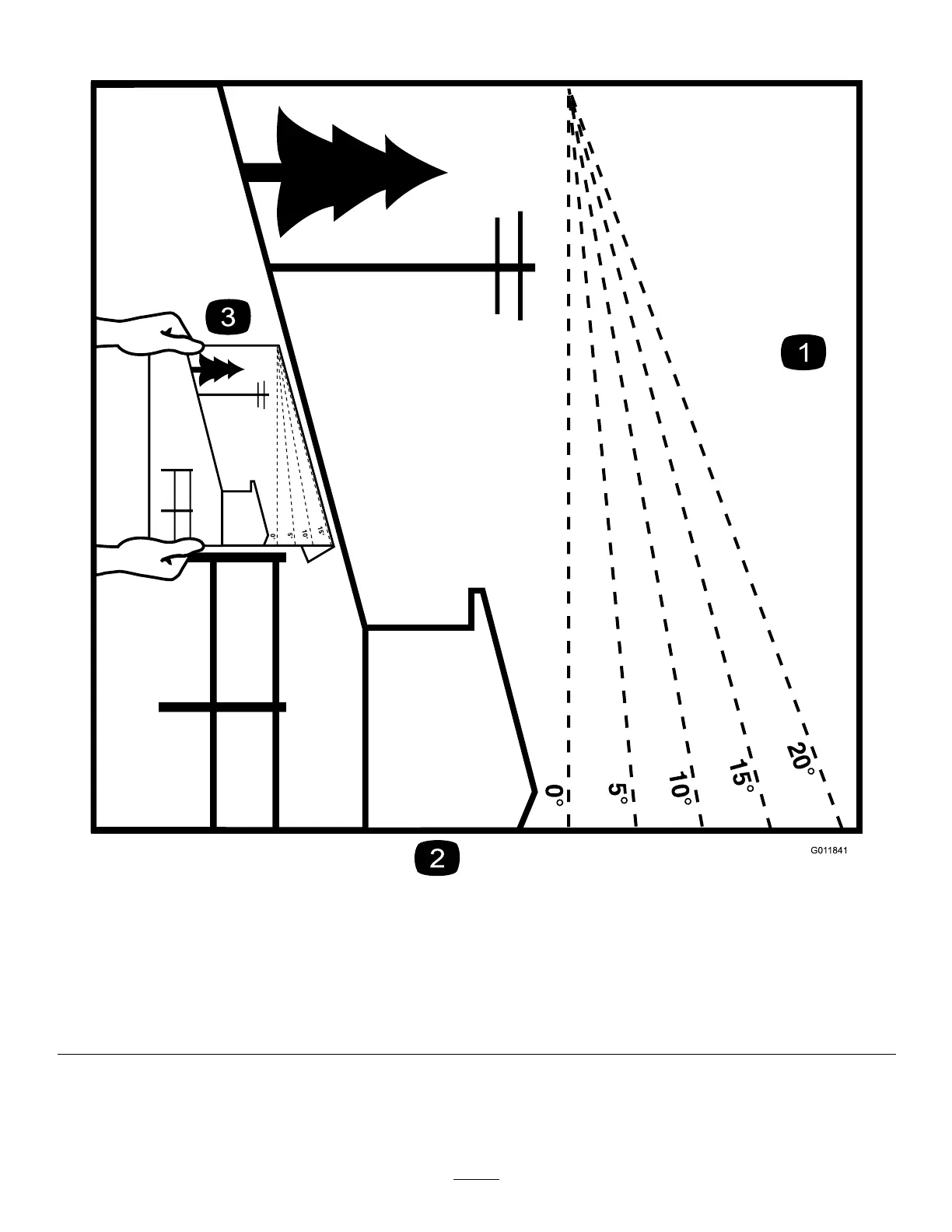

SlopeIndicator
g011841
Figure3
Thispagemaybecopiedforpersonaluse.
1.Themaximumslopeyoucansafelyoperatethemachineonis10degreeswhenmowingonsidehillsand15degreeswhen
mowinguphillordownhill.Usetheslopecharttodeterminethedegreeofslopeofhillsbeforeoperating.Donotoperatethis
machineonaslopegreaterthan15degrees.Foldalongtheappropriatelinetomatchtherecommendedslope.
2.Alignthisedgewithaverticalsurface,atree,building,fencepole,etc.
3.Exampleofhowtocompareslopewithfoldededge.
7
