AdjustingtheAnti-Scalp
Rollers
For107cm(42-inch)MowerDecks
Wheneveryouchangetheheightofcut,itis
recommendedtoadjusttheheightoftheanti-scalp
rollers.
Note:Adjusttheanti-scalprollerssotherollersdo
nottouchthegroundinnormal,atmowingareas.
1.Disengagetheblade-controlswitch(PTO),move
themotion-controlleverstotheNEUTRAL-LOCK
position,andsettheparkingbrake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Adjusttheanti-scalprollersto1ofthefollowing
positions:
•Upperhole—usethispositionwiththemower
deckinthe63mm(2-1/2inches)andbelow
theheight-of-cutpositions(Figure18).
•Lowerhole—usethispositionwiththemower
deckinthe76mm(3inches)andabovethe
height-of-cutpositions(Figure18).

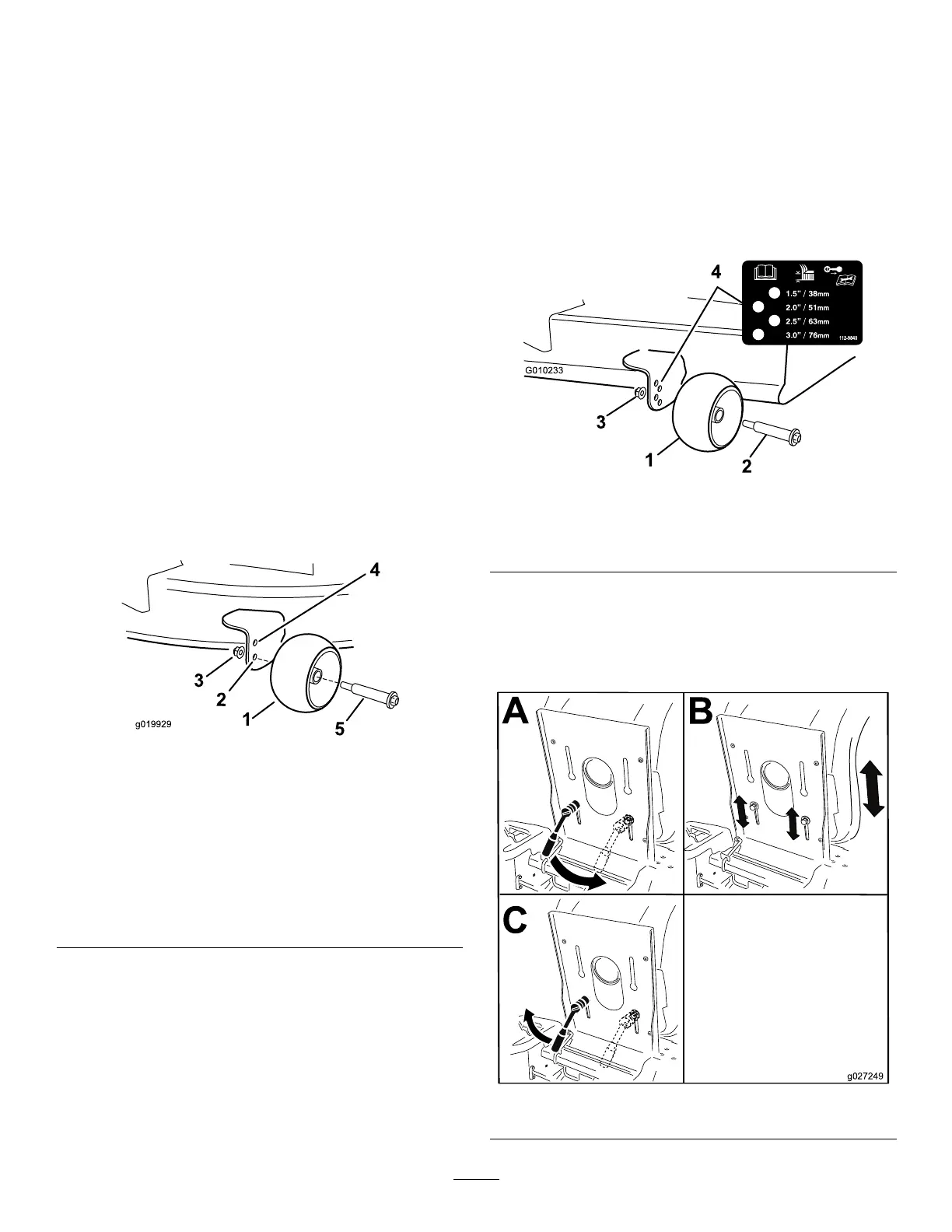

g019929
Figure18
1.Anti-scalproller4.Upperhole—themower
deckinthe63mm(2-1/2
inches)andbelowthe
height-of-cutpositions
2.Lowerhole—themower
deckinthe76mm(3
inches)andabovethe
height-of-cutpositions
5.Bolt
3.Flangenut
AdjustingtheAnti-Scalp
Rollers
For127cm(50-inch)MowerDecks
Wheneveryouchangetheheightofcut,itis
recommendedtoadjusttheheightoftheanti-scalp
rollers.
Note:Adjusttheanti-scalprollerssotherollersdo
nottouchthegroundinnormal,atmowingareas.
1.Disengagetheblade-controlswitch(PTO),move
themotion-controlleverstotheNEUTRAL-LOCK
position,andsettheparkingbrake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Adjusttheanti-scalprollers(Figure19)tomatch
theclosestheight-of-cutposition.
g010233
Figure19
1.Anti-scalproller3.Flangenut
2.Bolt4.Holespacing
PositioningtheSeat
Movetheseatforwardorbackwardasshownin
Figure20.
g027249
Figure20
