OperatingtheIgnitionSwitch

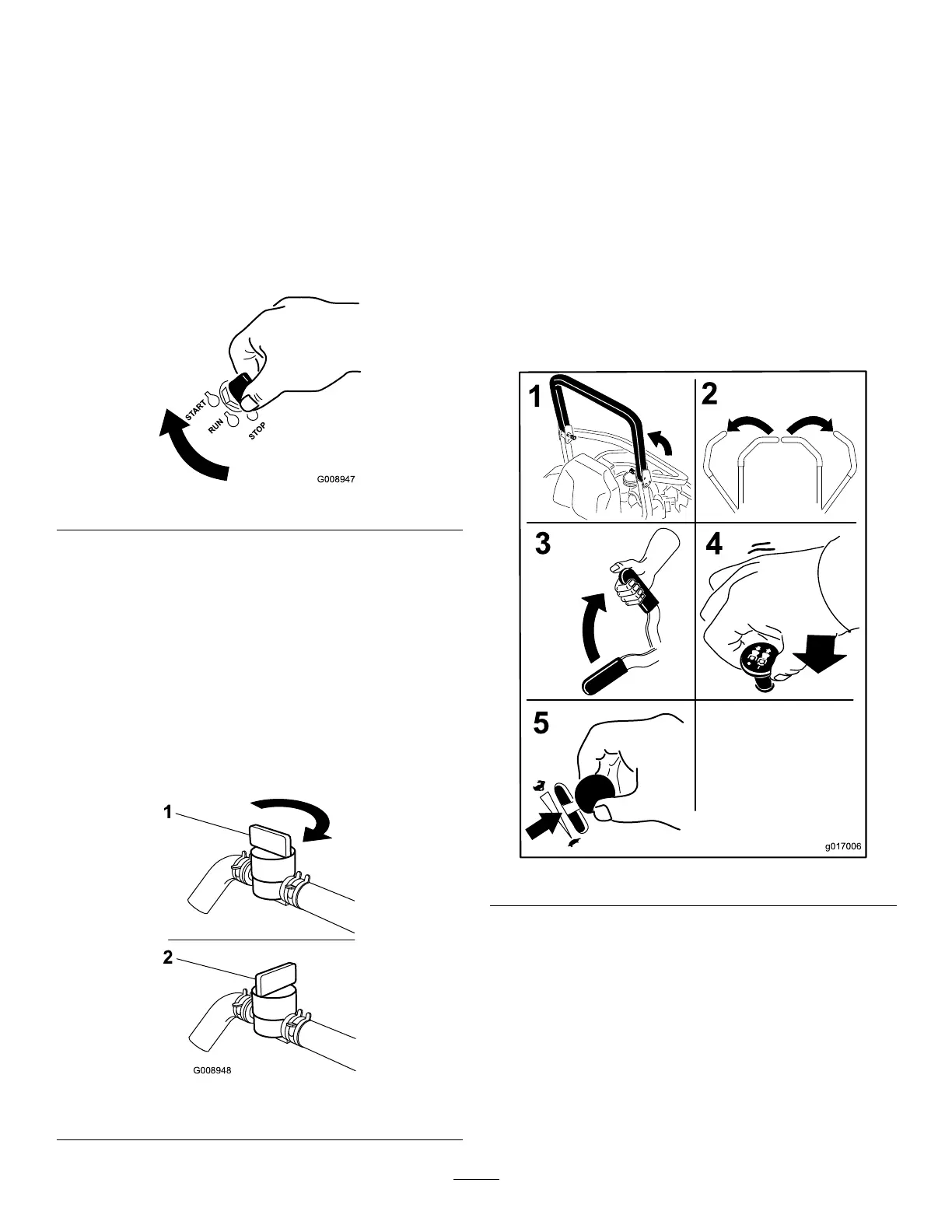

1.TurntheignitionkeytotheStartposition(Figure16).
Whentheenginestarts,releasethekey.
Important:Donotengagethestarterformore
than5secondsatatime.Iftheenginefailsto
start,allowa15secondcool-downperiodbetween
attempts.Failuretofollowtheseinstructionscan
burnoutthestartermotor.
Note:Additionalstartingcyclesmayberequired
whenstartingtheengineforthersttimeafterthefuel
systemhasbeencompletelywithoutfuel.
START
RUN
ST OP
G008947
Figure16
2.Tostoptheengine,turntheignitionkeytothestop
position.
UsingtheFuel-shutoffValve
Thefuel-shutoffvalveislocatedundertheseat.Movethe
seatforwardtoaccessit.
Closethefuel-shutoffvalvefortransport,maintenance,and
storage.
Ensurethatthefuel-shutoffvalveisopenwhenstartingthe
engine.
G008948
1
2
Figure17
1.On2.Off
StartingandStoppingthe
Engine
StartingtheEngine
1.RaisetheROPSupandlockintoplace,sitontheseat
andfastentheseatbelt.
2.Movethemotioncontrolstoneutrallockedposition.
3.Settheparkingbrake;refertoSettingtheParking
Brake.
4.Movethebladecontrolswitch(PTO)totheOff
position(Figure18).
5.MovethethrottlelevermidwaybetweentheSlowand
Fastpositions.
g017006
Figure18
6.TurntheignitionkeytotheStartposition(Figure16).
Whentheenginestarts,releasethekey.
Important:Donotengagethestarterformore
than5secondsatatime.Iftheenginefailsto
startallowa15secondcool-downperiodbetween
attempts.Failuretofollowtheseinstructionscan
burnoutthestartermotor.
Note:Additionalstartingcyclesmayberequired
whenstartingtheengineforthersttimeafterthefuel
systemhasbeenwithoutfuelcompletely.
