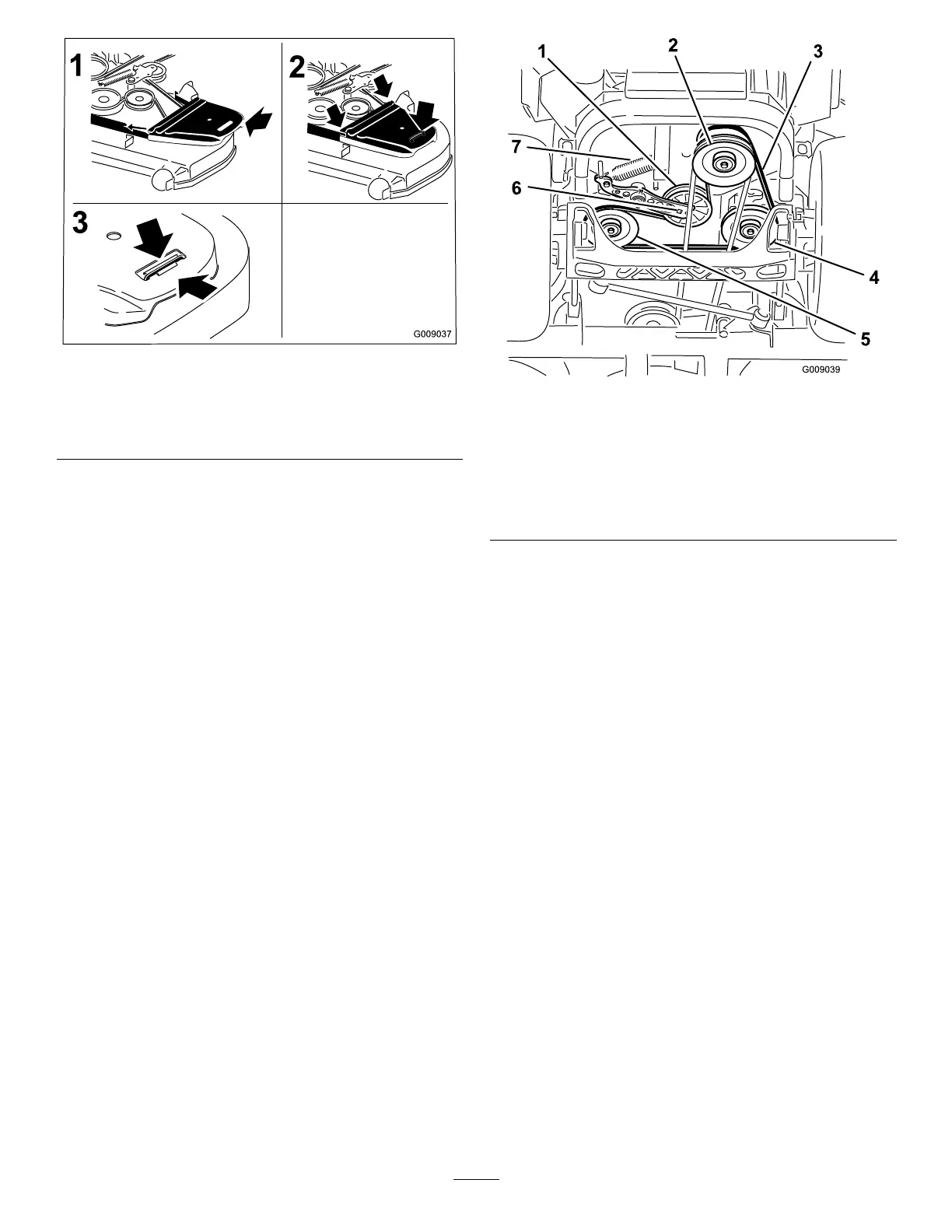

Figure82

1.Positionthebeltcover3.Ensurethatthetabis

underthemetalcatch

2.Slidebeltcoverunderthe

sidecatches

ReplacingtheHydraulicPump

DriveBelt

1.DisengagethePTOandsettheparkingbrake.

2.Stoptheengine,removethekey,andwaitforallmoving

partstostopbeforeleavingtheoperatingposition.

3.Removethemowerbelt.RefertoReplacingtheMower

BeltinMaintenance.

4.Raisethemachineandsupportitwithjackstands

(

Figure83).

Figure83

1.Idlerpulley

5.Left-handhydraulicpump

pulley

2.Clutchpulley6.Squareholeinidlerarm

3.Pumpdrivebelt7.Idlerspring

4.Right-handhydraulic

pumppulley

5.Usearatchetinthesquareholeintheidlerarmto

removetheidlerspring(Figure83).

6.Unhooktheidlerspringfromtheframe(Figure83).

7.Removethebeltfromthehydraulicunitdrivepulleys

andtheenginepulley

8.Installthenewbeltaroundenginepulleyandthetwo

drivepulleys.

9.Usingaratchetinthesquareholeintheidlerarm,

installtheidlerspringtotheframe(Figure83).

10.Installthemowerbelt.RefertoReplacingtheMower

Belt.
