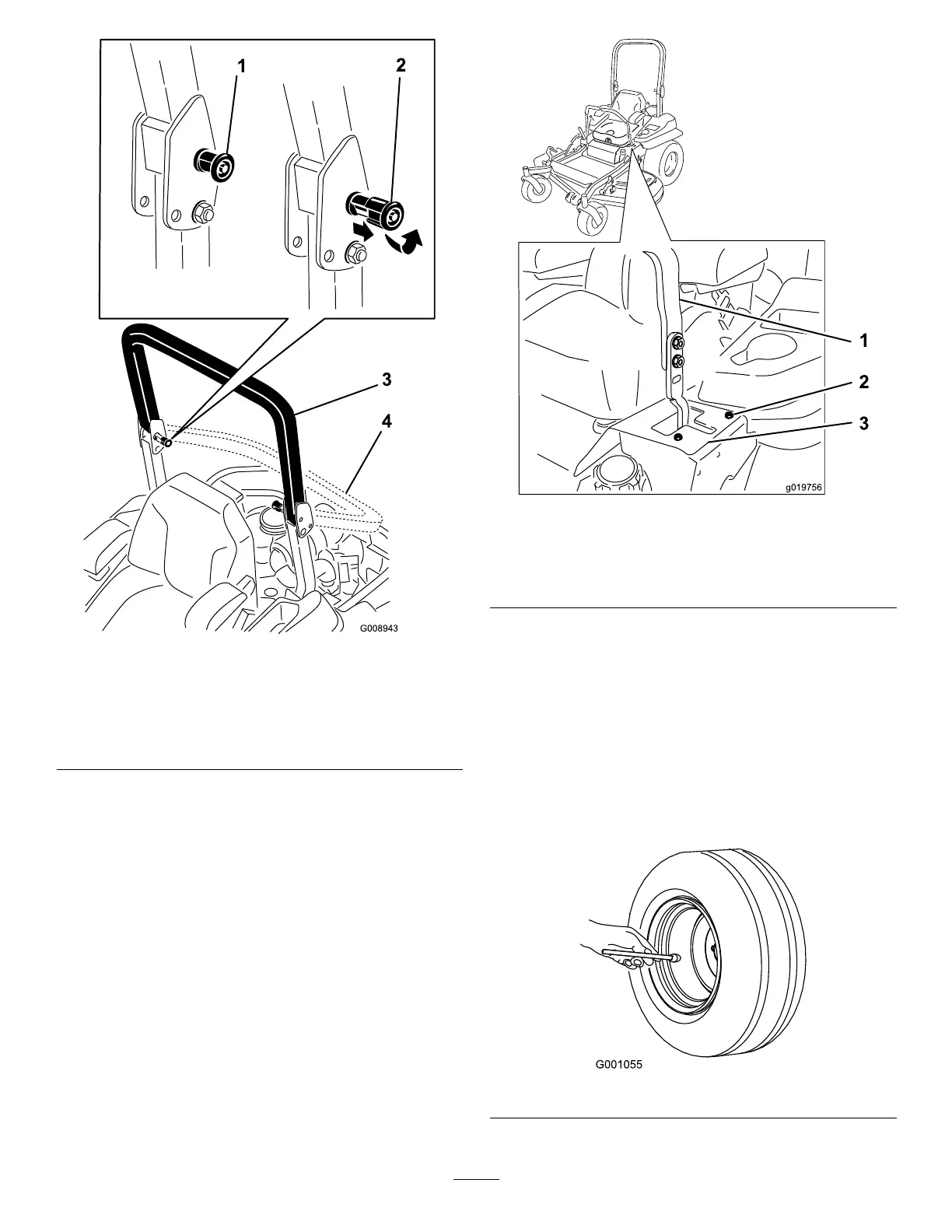

Figure65
1.ROPSknob(locked
position)
3.Rollbarintheupright
position
2.PullROPSknoboutand
rotate90degreesto
changerollbarposition
4.Rollbarinthefolded
position
AdjustingtheTracking
1.Disengagethebladecontrolswitch(PTO).
2.Drivetoanopenatarea,movethemotioncontrol
leverstotheneutrallockedposition.
3.Movethethrottlemidwaybetweenfastandslow .
4.Movebothmotioncontrolleversallthewayforward
untiltheybothhitthestopsintheT-slot.
5.Checkwhichwaythemachinetracks.
6.Ifittrackstotheright,loosentheboltsandadjust
theleftstopplaterearwardontheleftT-slotuntilthe
machinetracksstraight(Figure66).
7.Ifittrackstotheleft,loosentheboltsandadjustthe
rightstopplaterearwardontherightT-slotuntilthe
machinetracksstraight(Figure66).
8.Tightenthestopplate(Figure66).
g019756
Figure66
Leftcontrollevershown
1.Controllever3.Stopplate
2.Bolt
CheckingtheTirePressure
ServiceInterval:Every50hours/Monthly(whichever
comesrst)
Maintaintheairpressureinthereartiresat90kPa(13psi).
Uneventirepressurecancauseunevencut.Checkthetires
whentheyarecold,togetthemostaccuratepressurereading.
Note:Thefronttiresaresemi-pneumatictiresanddonot
requireairpressuremaintenance.
