2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Greasethemowerdeckidlerpulleypivotuntilgrease
comeoutthebottom(
Figure41).
4.Greasethethreespindlebearingsuntilgreasecomes
outthelowerseals(Figure41).

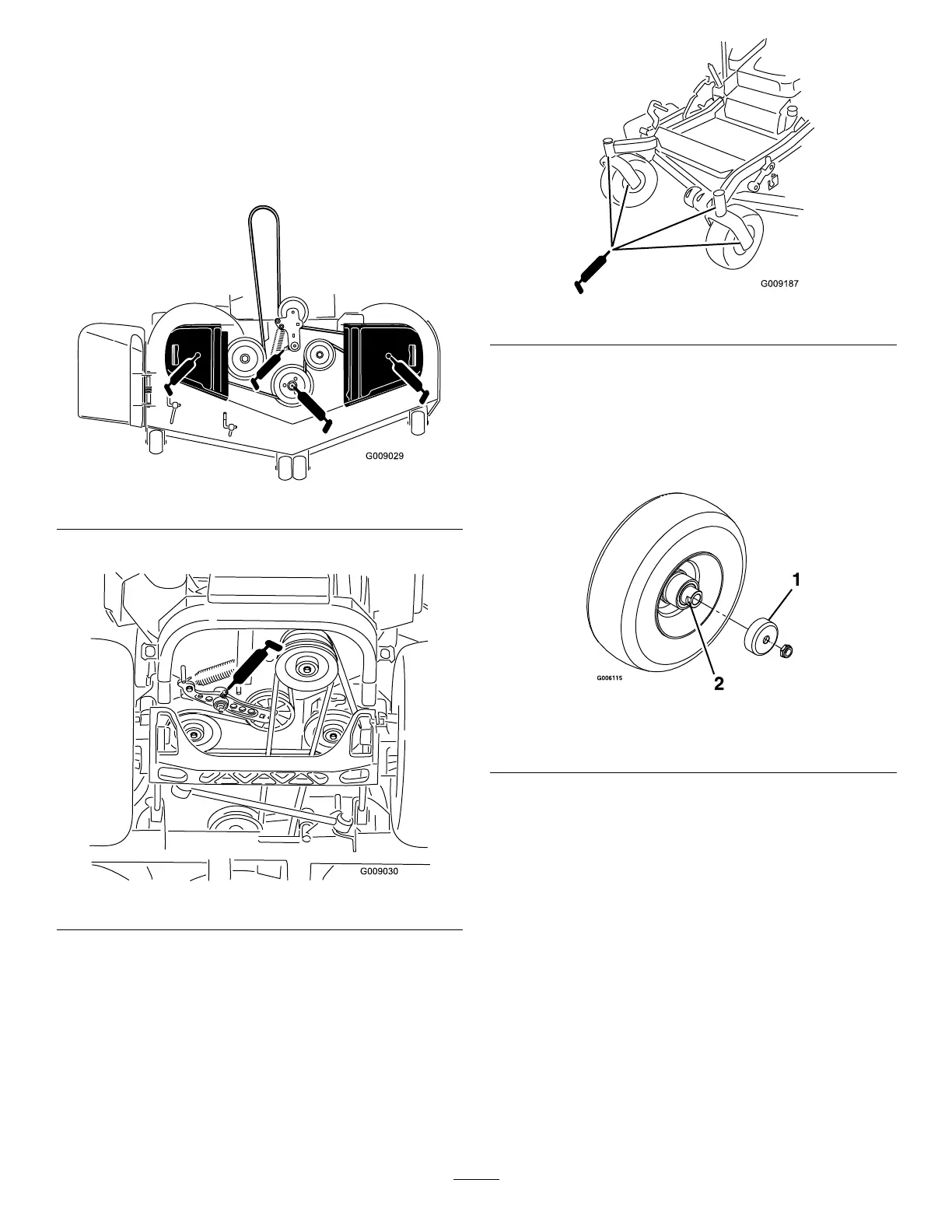

G009029
Figure41
5.Greasethedrivebeltidlerarm(Figure41).
Figure42
6.Removethedustcapandadjustthecasterpivots.
Keepthedustcapoffuntilgreasingisdone.Referto
AdjustingtheCasterPivotBearinginMaintenance.
7.Removethehexplug.Threadagreasezerkintothe
hole.
8.Pumpgreaseintothezerkuntilitoozesoutaround
thetopbearing.
9.Removethegreasezerkinthehole.Installthehex
pluganddustcap(Figure43).
Figure43
LubricateCasterWheelHubs
ServiceInterval:Yearly
1.Stoptheengine,waitforallmovingpartstostop,
andremovethekey.Engagetheparkingbrake.
Figure44
1.Sealguard2.Spacernutwithwrench
ats
2.Removethecasterwheelfromthecasterforks.
3.Removethesealguardsfromthewheelhub.
4.Removeoneofthespacernutsfromtheaxle
assemblyinthecasterwheel.Notethatthread
lockingadhesivehasbeenappliedtolockthespacer
nutstotheaxle.Removetheaxle(withtheother
spacernutstillassembledtoit)fromthewheel
assembly.
5.Pryoutseals,andinspectbearingsforwearor
damageandreplaceifnecessary.
6.Packthebearingswithageneral-purposegrease.
7.Insertonebearing,onenewsealintothewheel.
Note:Thesealsmustbereplaced.
8.Iftheaxleassemblyhashadbothspacernuts
removed(orbrokenloose),applyathreadlocking
31
