12.Ifthefrontdecklinksdonothaveenoughadjustment
toachieveaccuratecutheight,loosenthe2boltsat
thebottomoftheheight-of-cutplatetoadjustthe
single-pointsystem(Figure94).
1
g017029

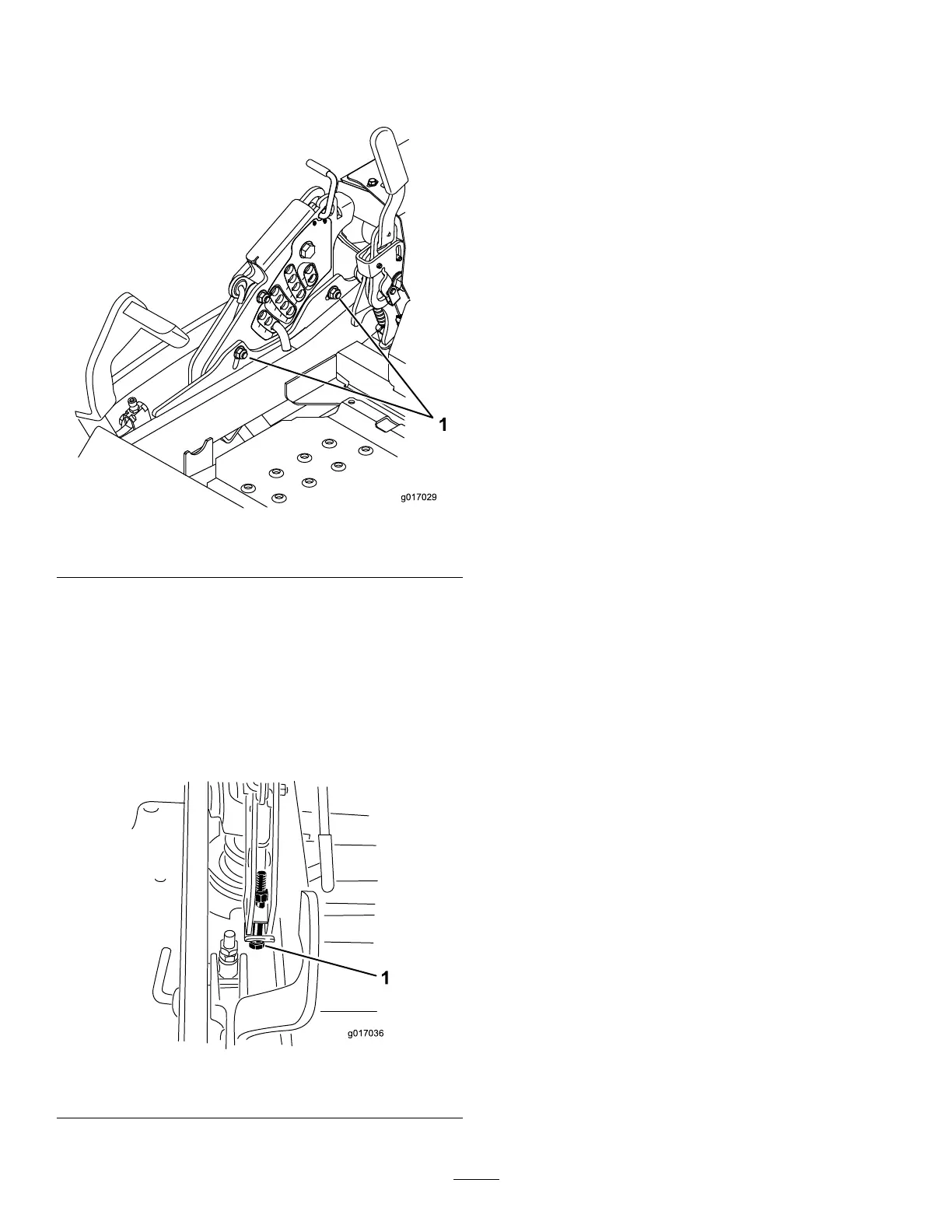

Figure94
1.Boltsatthebottomoftheheight-of-cutplate
13.Ifthedeckistoolow ,tightenthesingle-point
adjustmentboltbyrotatingitclockwise.Ifthedeckis
toohigh,loosenthesingle-pointadjustmentboltby
rotatingitcounterclockwise(Figure95).
Note:Loosenortightenthesingle-pointadjustment
boltenoughtomovetheheight-of-cutplatemounting
boltsatleast1/3thelengthoftheavailabletravelin
theirslots.Thisregainssomeup-and-downadjustment
oneachofthe4decklinks.
g017036
Figure95
1.Single-pointadjustmentbolt
14.Tightenthe2boltsatthebottomoftheheight-of-cut
plate(Figure94).
Note:Formostconditions,adjustthebackbladetip4
mm(1/4inch)higherthanthefront.
15.Torquethe2boltsto37to45N∙m(27to33ft-lb).
16.Onbothsidesofthedeck,measurefromthelevel
surfacetothebacktipoftheblade(positionB)as
showninFigure92.
Note:Themeasurementshouldread8.3cm(3-1/4
inches)
17.Fine-tunetheadjusterscrewbyturningittoget8.3
mm(3-1/4inches)height(Figure93).
Note:Toincreasetheheight,turntheadjustment
nutclockwise;todecreasetheheight,turnit
counterclockwise.
18.Measureuntilall4sidesarethecorrectheight.
19.Tightenallthenutsonthedeck-lift-armassemblies.
20.Lowerthedischargechute.
