RemovingtheImpactArmAssembly(continued)

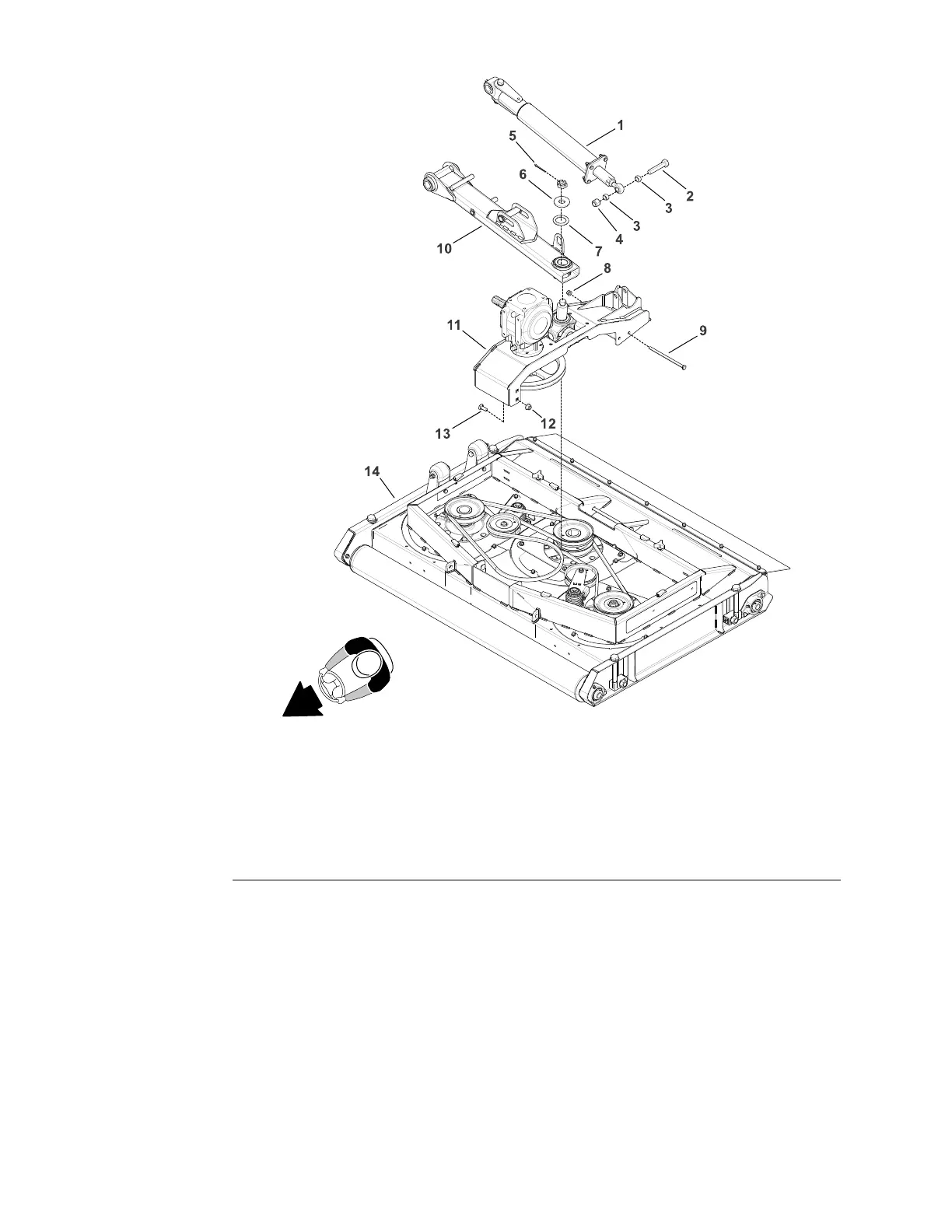

g254260
Figure18
1.Impactarmassembly6.Hardenedwasher11.Deckmountassembly
2.Bolt7.Thrustwasher
12.Nut(4each)
3.Spindlespacer(2each)8.Nut(2each)13.Carriagebolt(4each)
4.Locknut
9.Bolt(2each)14.Cuttingunit
5.Nut
10.Liftarmassembly
2.Removethenut(item4inFigure18),spacers(3)andthebolt(2)that
securestheimpactarmassembly(1)tocuttingunitassembly(14).
3.Removethebolt(item11inFigure17),locknut(13)andatwashers(12)
thatsecurestherodendoftheimpactarmtothecuttingunitframe.
4.Removethebolt(22)andtheliftarmpinassembly(21)fromthemachine
andremovethepivothub(18).
Chassis:ServiceandRepairs
Page3–22
Groundsmaster®1200Pull-BehindRotaryMower
18235SLRevA
